2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Genyu
MOQ :
1000
Price :
$2.05-2.19
Display Size :
2.4 inch
Resolution :
240*320 dots
Display Mode :
Transimissive, TN/IPS
Driver IC :
ST7789/ NV3030/ IIL9341, etc.
Viewing Angle :
6/12 O'clock or Free
Backlight :
4 Chip White LED
Interface :
SPI, MCU, RGB, etc.
FPC Connector :
Plug-in or Soldering
Operating Temperature :
-20~+70℃
Module Size :
42.72*60.26*2.35mm
Panel Active Area :
36.72*48.96mm
Luminance :
300 cd/m2
Contrast Ratio :
250
Control IC :
ST7789V
FPC Type :
18 pin welding Type
Description

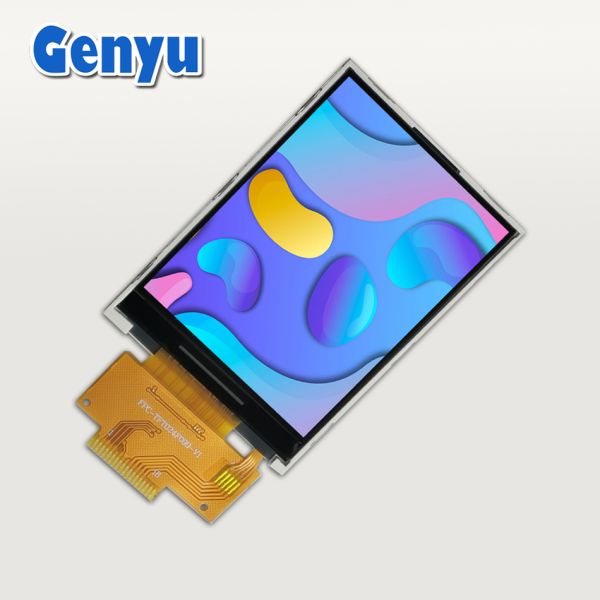

2.4 Inch TFT LCD Display Modules
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

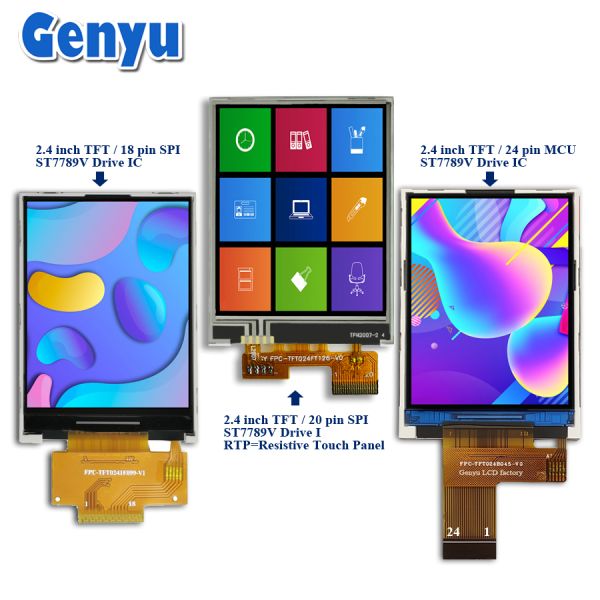

GY-TFT024FT126 - Resistive Touch Screen 2.4 inch TFT
  • Module Size: 42.72×60.26×2.35mm
  • Panel Active Area: 36.72×48.96mm
  • 12:00 viewing angle panel
  • ST7789V Control IC
  • Resolution: 240×320
  • 4 SPI Interface
  • Luminance: 300 cd/m²
  • Contrast Ratio: 250
  • 4 white LEDs backlight
  • Operating Temperature: -20°C to +70°C
  • 20 pin Pull-in type connector FPC

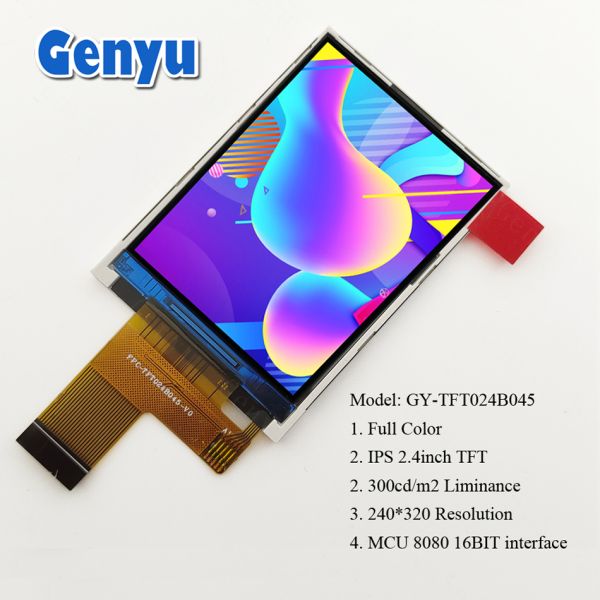

GY-TFT024B045 - IPS TFT LCD Display
  • Module Size: 42.72×60.26×2.20mm
  • Panel Active Area: 36.72×48.96mm
  • IPS full viewing angle panel
  • ST7789V Control IC
  • Resolution: 240×320
  • MCU 8080 16bit Interface
  • Luminance: 300 cd/m²
  • Contrast Ratio: 250
  • 4 white LEDs backlight
  • Operating Temperature: -20°C to +70°C
  • 24 pin Pull-in type connector FPC
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
GY-TFT024F099 - SPI Interface TFT LCD Display
  • Module Size: 42.72×60.26×2.35mm
  • Panel Active Area: 36.72×48.96mm
  • 12:00 viewing angle panel
  • ST7789V Control IC
  • Resolution: 240×320
  • SPI Interface
  • Luminance: 300 cd/m²
  • Contrast Ratio: 250
  • 4 white LEDs backlight
  • Operating Temperature: -20°C to +70°C
  • 18 pin welding Type FPC
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

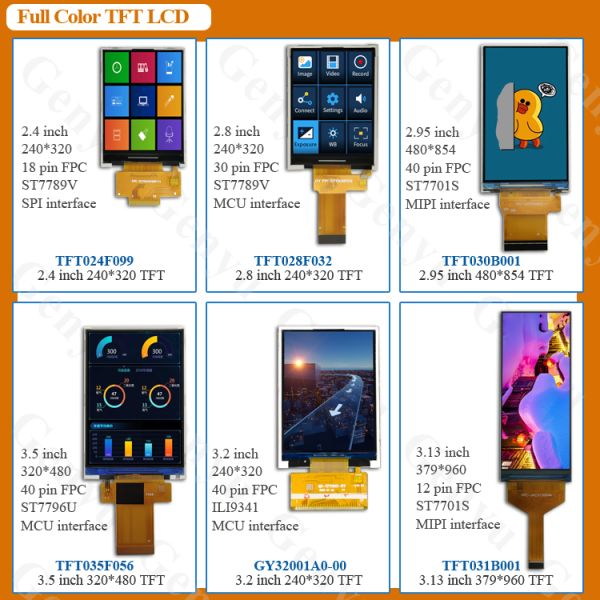

Complete TFT LCD Display Size Range
TFT LCD Size View Angle Options Interface Options FPC Options
0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0" IPS Full view angle, 12:00, 6:00 RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization Pull-in Connector, Solder Type, Support customization
Click on the pictures below to explore our complete TFT display portfolio:
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
About Shen Zhen Genyu Optical Co., Ltd.
Genyu offers tens of thousands of LCD options for your reference. Please share your requirements with Erica Tan, who will recommend similar LCDs according to your specifications, or we can customize LCDs to meet your exact requirements.
For more datasheets and samples, please click here.
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
Additional Display Technologies
PMOLED Display
Genyu offers mini size OLED displays in sizes: 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.3", 1.54", 2.08", 2.3", 2.4" with SSD1315 and SSD1306 drive ICs supporting I2C and SPI interfaces.
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
Custom Segment LCD Display
Genyu has produced tens of thousands of segment LCDs including TN, STN, HTN, FSTN, and VA/BTN black LCD displays. We can recommend similar LCDs or design custom LCDs according to your requirements.
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
128x64 Dot Matrix Graphic LCD Display
Genyu offers various dot matrix LCD displays including: 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128, 160x160, and up to 320x240 resolutions.
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
TFT LCD Module Portfolio
Genyu provides HD full color TFT LCD displays in sizes: 0.91", 1.0", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7", and 10.1" with standard sizes, standing stock, and samples available.
Wide Range of Applications:
  • Wearable Devices
  • Medical Equipment
  • Financial Systems
  • Industrial Controls
  • New Energy Systems
  • Communication Devices
  • Instrumentation
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
Manufacturing Capabilities
We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements. Our current annual production capacity has reached 100 million LCD screens, 30 million LCMs, and 40 million B/L units.
Quality Manufacturing Environment
Nearly 6000 square meters of dust-free workshop with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance is equipped with air shower systems that effectively and rapidly remove dust, hair, and other contaminants from clothing, reducing pollution problems caused by personnel entering and leaving the workshop.
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances 2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
