Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Specifications
MOQ :
10
Size :
2.0 inch
Backlight :
3 PCS white LED 60mA

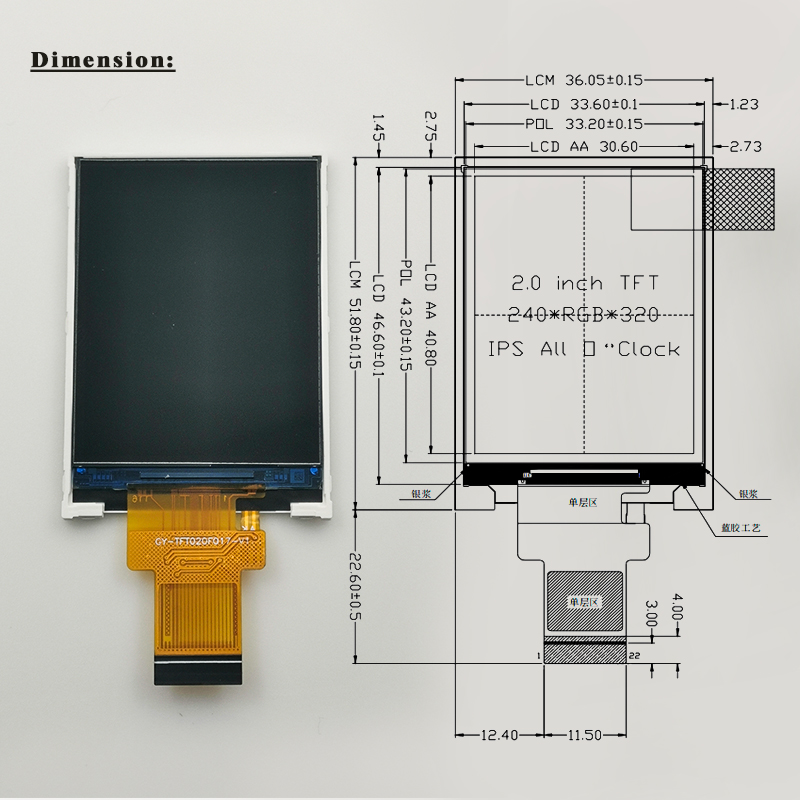

Module Size :
36.10*51.80*2.00 mm
Interface :
8bit MCU
Price :
$1.70-2.50
Connection :
COG + FPC
Display color :
65K/262K
Resolution :
240(RGB)x320
Power supply :
3.3 V
Pin Count :
22 pin
Brand Name :
Genyu
Drive IC :
ST7789V
Working Temperature :
-20~70 °C
Storage Temperature :
-30~80 °C
Place of Origin :
Guangdong, China
Active Area :
30.6*40.8 mm
Viewing direction :
IPS TFT
Display Type :
TFT lcd module
Description
Genyu 2.0 Inch IPS TFT LCD Display
2.0-inch TFT LCD screen with 240×320 resolution, IPS full viewing angle, ST7789V driver, and MCU 8-bit interface.

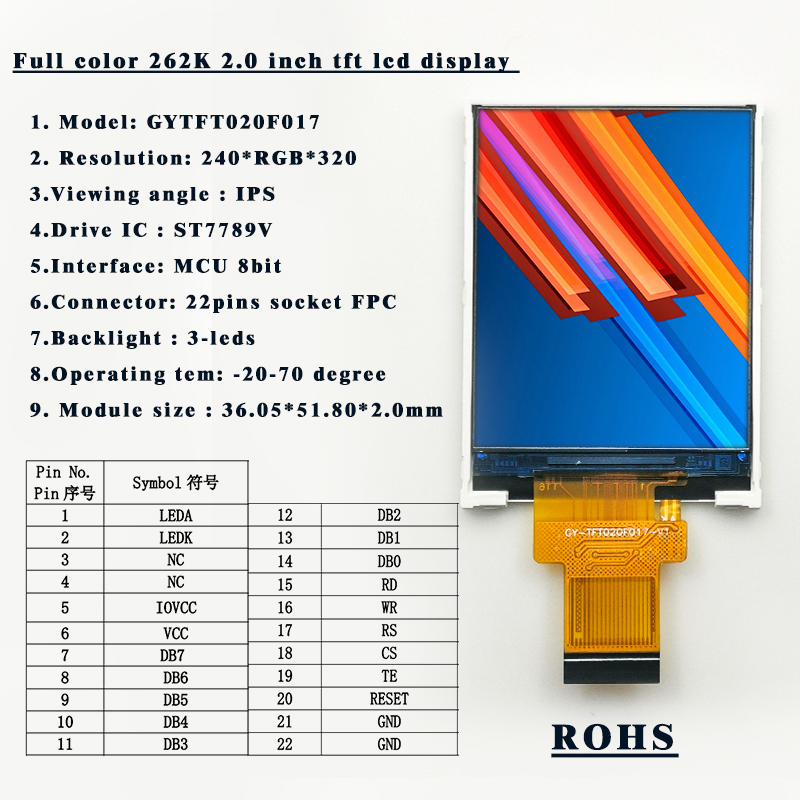

Pin Configuration
Pin 123456789101112131415161718192021-22
Symbol AKNCNCIVVCCVCCD7D6D5D4D3D2D1D0RDWRRSCSTERESETGND
Key Features
  • LCD Type: TFT
  • Interface: 8-bit MCU
  • Drive IC: ILI9225G
  • Viewing Angle: IPS Full Viewing Angle
  • Power Supply: 3.3V
  • Backlight: 3pcs LED White 60mA
Technical Specifications
Display Method2.0 inch TFT
Module Size36.10 × 51.80 × 2.00 mm
Active Area30.6 × 40.8 mm
Working Temperature-20°C to 70°C
Storage Temperature-30°C to 80°C
ConnectionCOG + FPC
Product Images
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Related Products
We offer TFT LCD displays in various sizes including 0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 7.0", and 10.1".
Available Interfaces
RGB, SPI, I2C, 8080, 6800, serial port, parallel port - Customization supported
FPC Options
Pull-in Connector, Solder Type - Customization supported
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Packaging & Shipping
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
Payment & Delivery
Payment Terms: T/T, Western Union, Paypal
Delivery Time: Items ship within 3 working days after payment
Shipping Methods: DHL/UPS/FedEx/TNT (2-5 days), EMS (7-10 days), CPAM/HKPAM (10-30 days)
Packaging Options
  • Anti-static bag or Bubble bag (for samples)
  • Plastic pallet
  • Carton box
Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver
