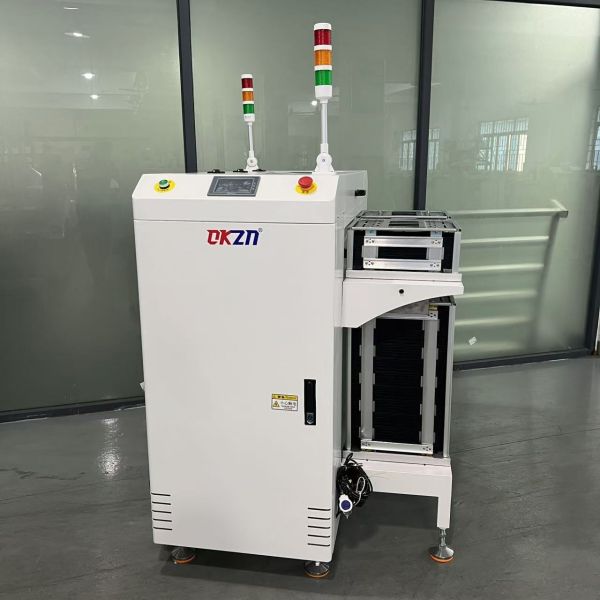

SMT Dual-Rail Automatic PCB Receiving Machine

II. Equipment Parameters
* Equipment Dimensions: 1100*1500*1300mm (L*W*H)
* Conveyor Height: 900±30mm
* Applicable Frame Dimensions: 355*320*563mm, PCB maximum width 50-250mm, PCB maximum length 350mm
* Power Supply and Load: 220V/0.35KW
* Conveyor Direction: Right-Left/Left-Right selectable
* Frame Replacement Time: Approx. 20 seconds
* Frame Running Capacity: One working frame
* Air Pressure and Flow Rate: 4-6 bar
* Equipment Weight: 280kg
* Track: Dual-rail
* Fixed Side: 1.4mm (686mm fixed side)

III. Product Description
This dual-rail automatic PCB receiving machine adopts a sheet metal and aluminum alloy combined structure, with a stable and robust body, good safety protection, and is suitable for long-term continuous operation in the workshop.

Equipped with anti-static material trays, it automatically separates good and defective circuit boards after inspection, eliminating board mixing and improving the standardization of workshop production management.

Featuring an intelligent control system with a servo lifting structure, it offers precise and stable positioning, smooth operation, and a low failure rate, effectively ensuring uninterrupted production.

Equipped with a touchscreen interface, it is intuitive and simple to operate, featuring self-diagnostic prompts for faults, making it easy for beginners to learn and operate without complex training.

A three-point pneumatic positioning and clamping design firmly fixes the material tray position, ensuring neat and non-shifting board collection; the top-opening design facilitates daily inspection and maintenance, making upkeep simple and worry-free.

It features audible and visual alarm functions, promptly alerting staff to troubleshoot equipment malfunctions and reducing downtime losses.

It has a universal interface, allowing seamless integration with various SMT front-end equipment; the built-in pusher protection structure effectively prevents circuit board damage, reducing production losses and saving material costs.

IV. Application Scenarios
1. SMT Electronic Placement Production Line: Adapted for use with back-end inspection equipment, it automatically receives signals and automatically sorts and collects boards, replacing manual sorting and improving automated production efficiency. 2. Various electronic manufacturing workshops: Suitable for automatic material collection and classification at the end of various circuit board production processes, facilitating subsequent re-inspection, assembly, and rework.

3. Compatible with various testing equipment: Can work in conjunction with various conventional testing equipment to achieve automatic material collection and classification after testing, adaptable to production sites in electronic factories of all sizes.
