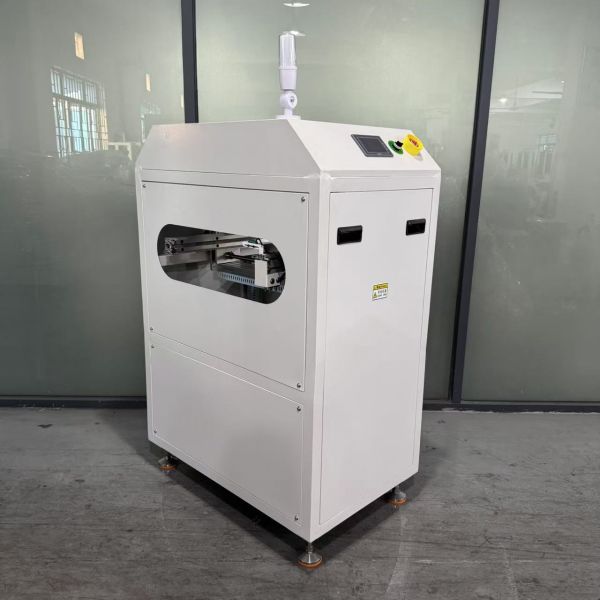

SMT Fully Automatic Single-Rail Flipping Machine

I. Equipment Parameters
Model: OK-FBJ-460
Dimensions: 600*950*1500mm
Conveyor Height: 900±30mm
Applicable PCB Specifications: Width 50-460mm, Maximum Length 450mm
Power Supply: 220V / 0.35KW
Conveying Direction: Freely switchable left and right
Working Air Pressure: 4-6 bar
Equipment Weight: 160kg
Tilting Function: Supports 90°/180°/360° multi-angle tilting
Conveying Track: Standard monorail conveyor structure

II. Equipment Features
Sturdy and Safe Body Structure: Enclosed sheet metal + aluminum alloy combination body, strong protection, safe and durable for workshop use.
Precision Lifting Drive: Stepper motor combined with ball screw lifting transmission, smooth operation without jamming or deformation.
Intelligent PLC Control System: Stable and anti-interference program, uninterrupted long-term continuous production line operation.
Touchscreen Intelligent Operation: Simple and easy-to-understand human-machine interface, built-in automatic fault diagnosis, and clear alarm prompts.
Multi-Angle Free Tilting: Supports 90°, 180°, and 360° tilting modes, adaptable to multiple production processes.
Hand-cranked Track Adjustment: Hand-cranked screw adjusts track width, precise adjustment, adaptable to various P-type specifications. CB Board Material

Multiple Alarm Reminders: Dual alarm prompts (audio-visual + screen) for timely troubleshooting of production line anomalies, reducing downtime losses.

Standard Universal Interface: Equipped with a standard SMEMA communication interface, seamlessly integrating with the entire automated SMT production line.

III. Application Scenarios

Installation Process Flip-up: Automatically flips the PCB after insertion, switching between front and back sides to meet the requirements of double-sided surface mount technology (SMT) production.

Finished Product Inspection Flip-up: Flips the PCB after soldering, facilitating inspection equipment to detect back-side circuitry and components, controlling product quality.

Product Rework Flip-up: Automatically flips the PCB when soldering defects are found, facilitating manual repair and replacement of back-side components, improving rework efficiency.

Adhesive Dispensing and Curing Flip-up: Automatically flips the PCB after adhesive dispensing on the back, ensuring natural curing of the adhesive without dripping, thus not affecting subsequent production processes.

Complete Line Integration: Can be integrated with SMT board loading/unloading machines, buffer machines, and screening machines to form a fully automated production line, suitable for various electronics processing plants.
