1. Introduction

GS-SW6401725-40-G is self-developed domestic scientific deep-cooled short-wave infrared camera covering 0.9–1.7μm spectrum band, tailored for high-end scientific research. It adopts 640×512 InGaAs FPA with 25μm oversized pixel and 16mm×12.8mm large photosensitive area, supporting ultra-long integration time over 2 minutes to capture ultra-faint targets. Equipped with deep TEC cooling system to stabilize chip temperature at -40℃, it greatly reduces thermal noise and improves imaging signal-to-noise ratio. GigE 8/14bit digital signal is standard output; PAL/NTSC analog video via SMA can be customized on demand. The camera supports TTL/LVDS dual external trigger and optional onboard laser centroid tracking function. Global shutter with 1μs minimum exposure, arbitrary ROI readout and complete built-in image correction algorithms fully meet astronomical observation, quantum dot, fluorescence, EMMI and life science testing demands. Air-cooled structure requires no water cooling pipeline, and C lens mount supports personalized customization. Matching multi-algorithm control software and full cross-platform SDK are provided to break import deep-cooled camera monopoly for domestic laboratories.

2. Advantages

1. High-sensitivity InGaAs sensor, quantum efficiency above 70% within 1.0μm–1.6μm waveband, pixel operability ＞99.5%
2. Unique 25μm large pixel & 16×12.8mm big active area, outstanding weak light capture capability
3. Core deep cooling feature: stable -40℃ detector temperature, ultra-low dark noise for 2min+ long exposure
4. 50Hz full frame rate, arbitrary ROI configurable to boost frame rate for fast small research targets
5. 1μs ultra-wide adjustable exposure range, compatible with transient capture and ultra-long cumulative imaging
6. Standard GigE digital transmission, PAL/NTSC analog video available as customized extra option
7. Dual TTL/LVDS trigger signals, perfectly matched with microscopes, spectrometers and synchronous optical platforms
8. Integratable onboard centroid tracking for high-precision laser spot measurement and beam analysis
9. Independent air heat dissipation, no water cooling required, simple laboratory installation & maintenance
10. 90×90×87mm reinforced heat dissipation housing, multi-sided M3 mounting holes for large optical systems

3. Technical Specifications

Note: Specifications are for reference only and subject to change without prior notice.

4. Applications

Low-light imaging, Medical & life science imaging, Hyperspectral analysis, Laser spot tracking, High-temperature thermal detection, Astronomical observation, EMMI system, Quantum dot & fluorescence imaging, Camouflage identification, Semiconductor precision inspection, Garbage sorting

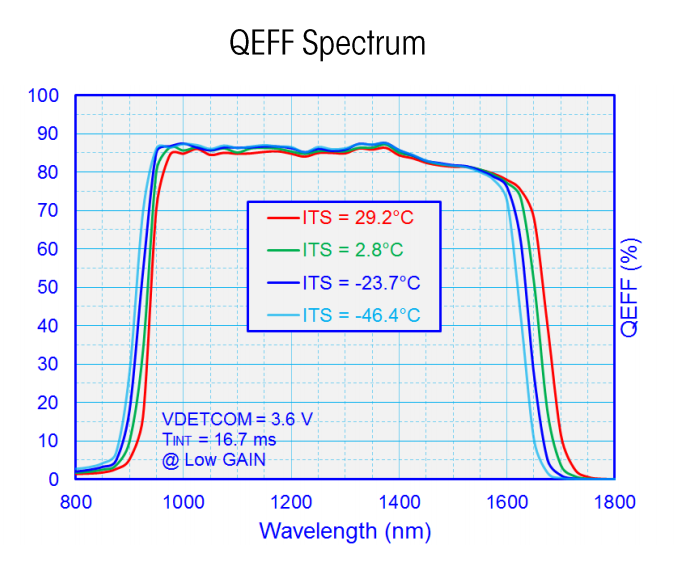

5. Quantum Efficiency

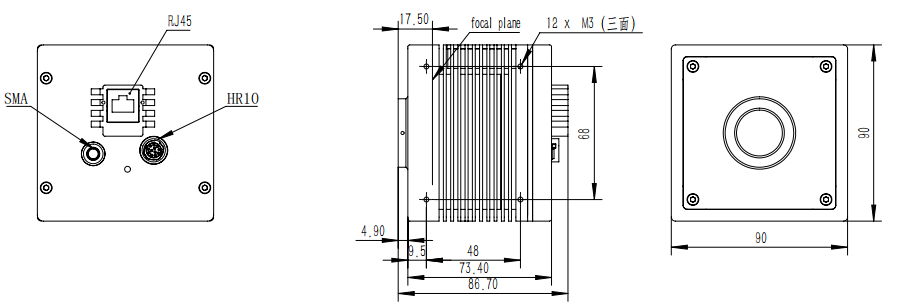

6. Dimensions

7. FAQs
