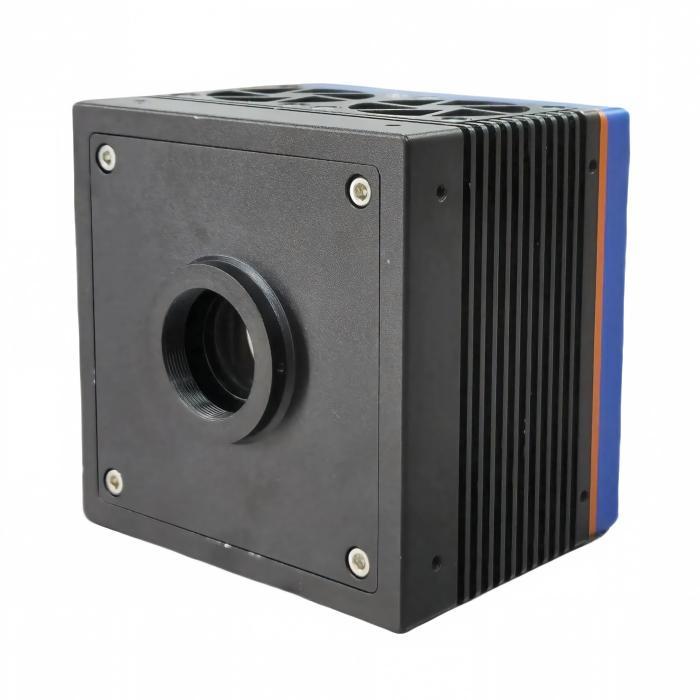

GS-SW6401915-40-G is high-performance domestic deep-cooled short-wave infrared camera with extended 1.1–1.9μm detection band, specially optimized for long-wave SWIR scientific testing. Equipped with 640×512 InGaAs FPA and 15μm pixel, the focal plane quantum efficiency exceeds 80% within core waveband. Adopting two-stage TEC deep cooling structure, the sensor can be stably cooled to -40℃ to cut thermal dark noise and improve long-exposure signal-to-noise ratio. Standard GigE 8/14bit digital transmission; PAL/NTSC analog video via SMA interface can be customized as extra option. It supports arbitrary ROI to lift frame rate, global shutter with 1μs minimum exposure, TTL/LVDS dual external trigger and integratable onboard laser centroid tracking. Interchangeable C lens mount matches spectrometers and customized optical platforms. Exclusive imaging software and complete cross-platform SDK are supplied for secondary development, widely applied to multi-spectral research, industrial inspection and remote sensing.

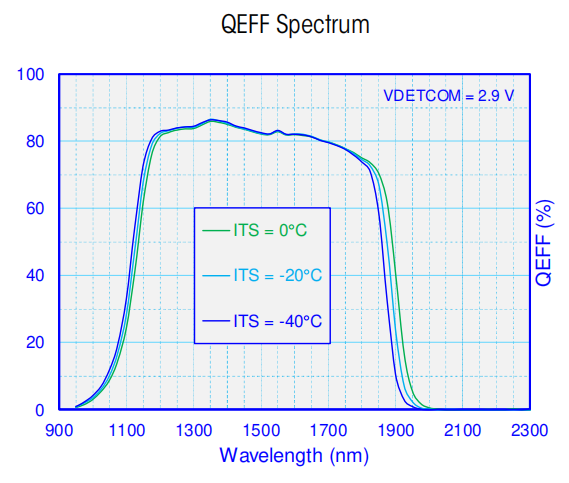

1. Extended 1.1–1.9μm special spectrum, QE＞80%@1000–1600nm, better response for long-wave SWIR targets
2. 640×512 resolution with 15μm pixel, 9.6×7.68mm active area, pixel operability above 99%
3. Deep TEC cooling locked at -40℃, excellent noise control for ultra-long integration capturing
4. Stable 50Hz full frame readout, freely configurable arbitrary ROI to boost capture speed of small fast targets
5. 1μs–1/frame wide exposure range, compatible with transient pulse capture and faint long-time accumulation
6. GigE digital as standard, PAL/NTSC analog video available on customized demand
7. Global shutter + TTL/LVDS dual trigger, perfectly synchronized with laboratory optical testing equipment
8. Reserved interface for laser spot centroid tracking, suitable for laser measurement and beam profiling

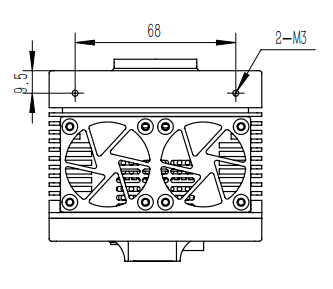

9. C replaceable lens mount, multiple M3 & 1/4″-20 standard tripod mounting holes

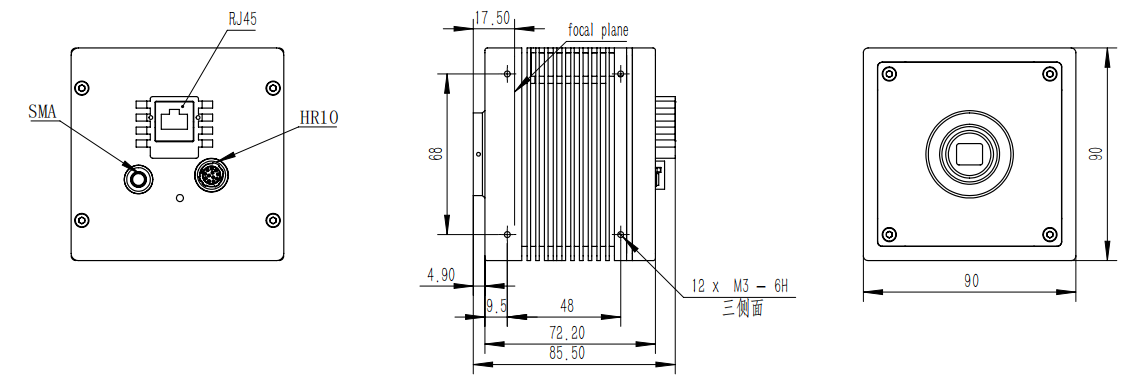

10. 90×90×87mm reinforced heat dissipation housing, air-cooled without water cooling, 24V low ripple power input

Note: Specifications are for reference only and subject to change without prior notice.

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal imaging, Search and rescue remote sensing, Camouflage recognition, Garbage sorting, Semiconductor inspection
