Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Specifications
application :
General
warranty :
1 year
Place of Origin :
Henan, China
power :
Manual
structure :
BUTTERFLY
customized support :
OEM
Product name :
Fire Fighting Flange Butterfly Valve
Keyword :
Fire Fighting Flange Butterfly Valve
Calibration range :
DN40~DN600
Pressure level :
1.0~1.6MPa
Temperature range :
-10℃~+100℃
Transmission mode :
Manual
Applicable media :
Water, oil, gas, etc
Main material :
Ductile iron/CS/SS
Type :
Butterfly valve
Description

Fire Fighting Flange Butterfly Valve

Fire Fighting Flange Butterfly Valve

Main technical parameters

Nominal pressure PN10/PN16/PN25/PN40, 125LB/150LB, 5K/10K/16K
Face to face standard

GB/T12221, API609, EN558-1
Flange connection standard

GB/T17241.6, GB/T9113-2010, EN1092-2
Test standard GB/T13927-2008, API598
Applicable media Water, oil, gas, etc

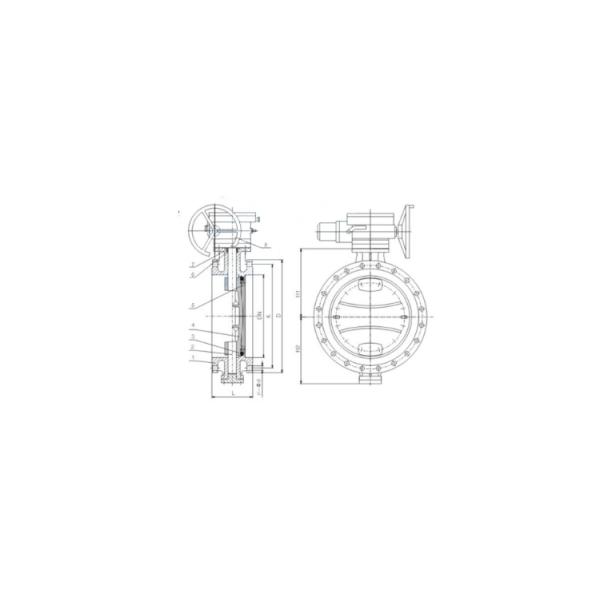

Product structure diagram

Fire Fighting Flange Butterfly Valve

Maximum pressure conditions

Size Max pressure (bar) Min/Max Temp (℃) Test Pressure (bar)
Shell Seat
DN40-DN600 10.0/16.0 -10℃ +100℃ 15.0/24.0 11.0/17.6

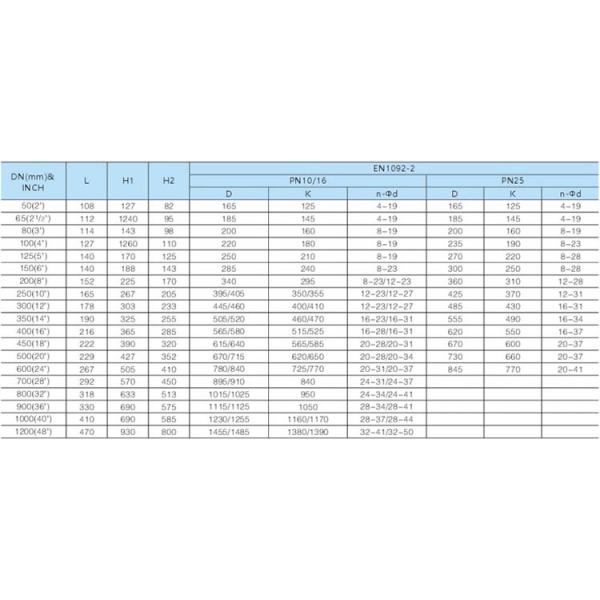

Dimensions

Fire Fighting Flange Butterfly Valve

Ordering notice:

1.Price: The price here is only for reference, the accurate price please contact us to get.

2.Delivery time: The lead time need to calculate according to product parameters, quantity, etc. Please contact us for accurate answer.

3.After-sales service: If you have any questions after you get the product you get from us, please feel free to contact us, we have technical engineer to help you.

FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
