Specifications
application :
General
warranty :
1 year
Place of Origin :
Henan, China
Model Number :
D342X/H
power :
Electric
structure :
BUTTERFLY
customized support :
OEM
applicable medium :
Water, Air, Gas, Oil, sTEAM
Product name :
Wireless remote double eccentric butterfly valve price
Keyword :
electric butterfly valve
Calibration range :
DN50~DN1000
Pressure level :
0.6~2.5MPa
Temperature range :
-30℃~550℃
Transmission mode :
Manual, electric, pneumatic, bevel gear
Applicable media :
Water, steam, gas, oil, etc
Connection :
Clamped, flange, welded
Type :
AXIAL VALVES
Description

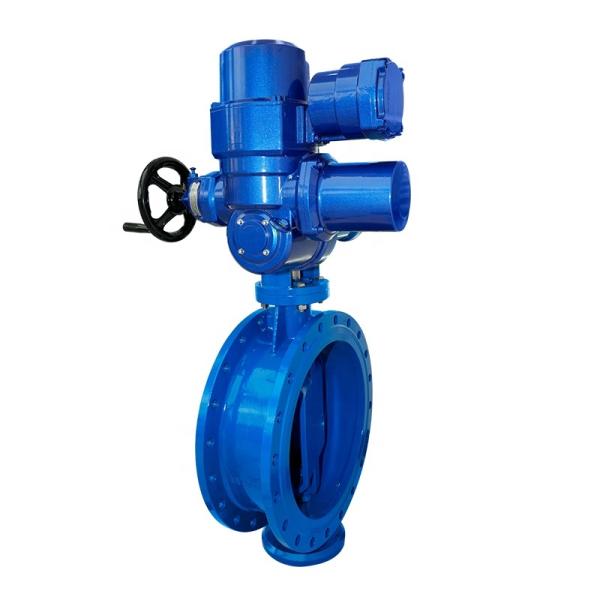

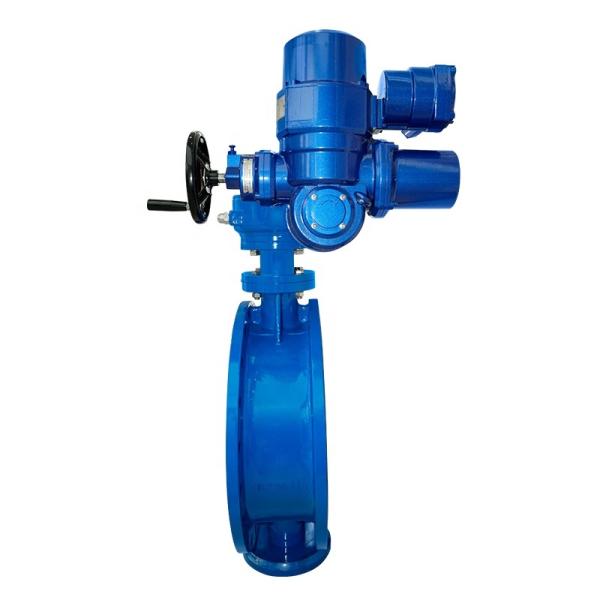

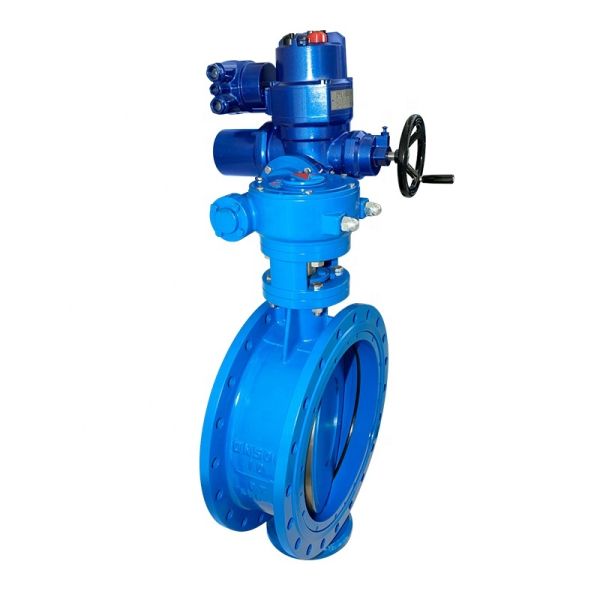

Wireless remote double eccentric butterfly valve price with electric actuator

Wireless Remote Double Eccentric butterfly Valve Price with Electric Actuator

Product Description

Wireless remote double eccentric butterfly valve price with electric actuator

Product description:

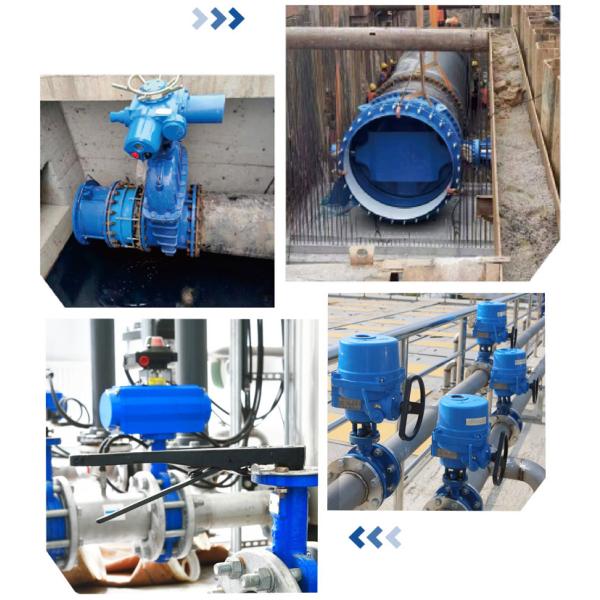

Double eccentric electric butterfly valve is also called high performance butterfly valve, mainly used in water plants, power plant steel making, chemical industry, water source spring project, environmental facilities construction and other systems applicable to the waterway pipeline as a regulating and intercepting equipment. Compared with the centerline butterfly valve, the double eccentric butterfly valve is more resistant to high pressure and has a longer life span and better stability. The butterfly valve and the upper and lower valve shafts adopt the connection of shaped holes and shaped shafts to realize the pinless connection function of floating the butterfly plate up and down, left and right during the process of opening and closing of the butterfly plate, which reduces the interference area between the butterfly plate and the valve and greatly reduces the torque. The floating structure of the butterfly plate realizes the production process of single eccentricity and the use of eccentricity.

Technical parameters:

Nominal Diameter DN50~DN1000
Pressure level 0.6MPa-2.5MPa
Valve inner parts Features: eccentric structure, multi-layer seal seat, hard sealing
Applicable temperature -30℃ to 550℃;
Type of actuator Electric
Valve body type: Straight-through
Bonnet form: standard one-piece type
Flow Rate Characteristics: Approximate Equal Percentage

Wireless Remote Double Eccentric butterfly Valve Price with Electric ActuatorWireless Remote Double Eccentric butterfly Valve Price with Electric ActuatorWireless Remote Double Eccentric butterfly Valve Price with Electric ActuatorWireless Remote Double Eccentric butterfly Valve Price with Electric ActuatorWireless Remote Double Eccentric butterfly Valve Price with Electric Actuator

Our Services

Wireless remote double eccentric butterfly valve price with electric actuator

Our products have become products of 3-High: high technology, high standard, high quality.

Porfessional selection guidance;

Remote technical support;

Professional presale and aftersales service;

Sample order is acceptable.

Company Information

Wireless remote double eccentric butterfly valve price with electric actuator

Wireless Remote Double Eccentric butterfly Valve Price with Electric ActuatorWireless Remote Double Eccentric butterfly Valve Price with Electric ActuatorWireless Remote Double Eccentric butterfly Valve Price with Electric Actuator

FAQ

Wireless remote double eccentric butterfly valve price with electric actuator

How can we get more details?

Welcome to contact us for further information:

Contact person Miranda Tian
Mobile +86 18603780816/18637817105
Email admin @ hysmartwater.com
