Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Specifications
application :
General
Place of Origin :
Henan, China
power :
Manual
structure :
BUTTERFLY
customized support :
OEM
Product name :
Lug Type Butterfly Valve
Keyword :
Lug Type Butterfly Valve
Calibration range :
DN40~DN600
Pressure level :
1.0~1.6MPa
Temperature range :
-10℃~+100℃
Transmission mode :
Manual
Applicable media :
Water, oil, gas, etc
Main material :
Cast iron, carbon steel, stainless steel, etc.
Type :
Butterfly valve
Description
Lug Type Butterfly Valve
Lug Type Butterfly Valve
Product Description
Lug Type Butterfly Valve

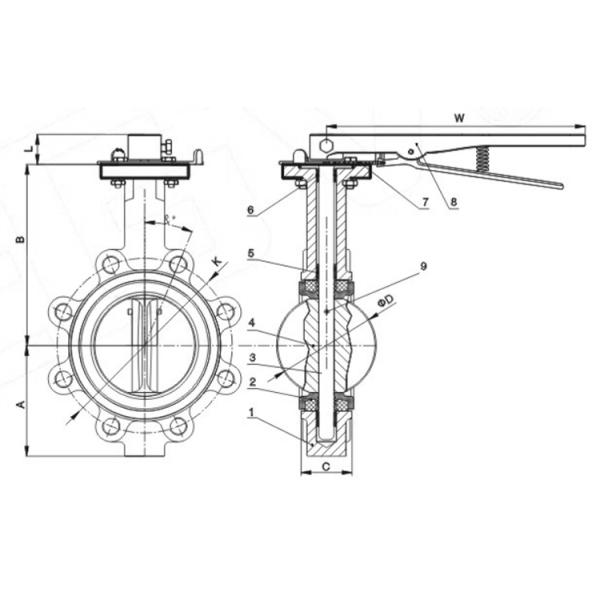

Main Parts Materials:
No.
Part Name
Material
1
Body
Ductile iron/CS/SS
2
Seat
EPDM/NBR
3
Stem
Carbon steel/SS410/SS304/SS316
4
Disc
Ductile iron/CS/SS
5
Bushing
PTFE
6
O ring
NBR/EPDM
7
Lever
QT450-10
8
Pin
SS410/SS304/SS316
Lug Type Butterfly Valve

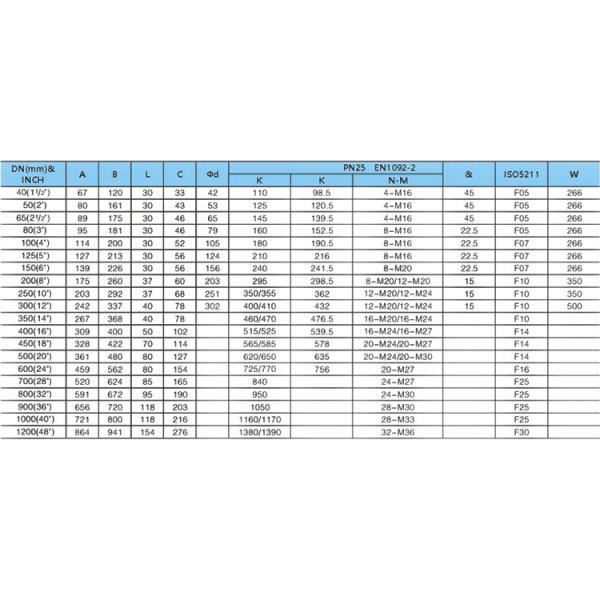

Specification
Main technical parameters
Nominal pressure:
PN10/PN16/PN25/PN40、125LB/150LB、5K/10K/16K
Face to face standard:
GB/T12221-2005、DIN3202
Test standard:
GB/T13927-2008、API598
Applicable media:
Water, oil, gas, etc.
Size
Max pressure (bar)
Min/Max Temp (℃)
Test Pressure (bar)
Shell
Seat
DN40-DN600
10.0/16.0
-10℃ +100℃
15.0/24.0
11.0/17.6
Lug Type Butterfly Valve
Company Profile
Lug Type Butterfly Valve
Company introduction
Henan Haoyuan Intelligent Water Co., Ltd. is a trading company specializing in industrial pipeline water instruments such as valves and flow meters. The company has a professional independent valve factory and flow meter factory; We have over 3 factories located in central China, including Henan Province, Zhengzhou City, and Kaifeng City. We have our own professional teams in research and development, production, sales, and after-sales service. In order to better serve our domestic and foreign customers, our company has established a trading company specializing in exporting various valves, flow meters, and other products. The company has obtained many certificates, including ISO9001, CE, etc. Welcome new and old customers to visit our factory and discuss cooperation.
FAQ
Q. Can I have my own Logo on the product?
A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
