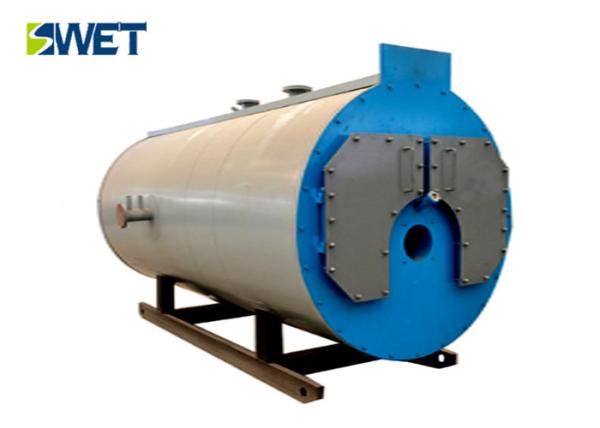

Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
Specifications
Brand Name :
SWET
Model Number :
SZS5.6-1.25-Y,Q-3004
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
nominal working pressure :
0.7(1.0)(1.25) MPa
Leaving Water Temperature :
95(115)(130)℃
return water temperature :
70(90)℃
efficiency :
95.57 %
Model :
SZS5.6-1.25-Y,Q-3004
Keywords :
hot water boiler
Description

Horizontal And Industrial Gas Fired Hot Water Boiler With Water Pipe Type

Product description

1. "D" type arrangement:

Compact structure, small footprint, good flame fullness. The use of the international fashion D-type layout, wet back structure, large-volume combustion chamber design, the combustion more fully.

2. Membrane wall structure

The furnace adopts the membrane type water wall structure, the whole boiler adopts the hermetic inner guard of the totally enclosed welding structure, and the furnace wall has good sealing performance; the exhaust loss is small and the thermal efficiency is high.

Product advantages

1. Simple and reasonable structure

2. Safe and reliable operation

3. Sufficient output

4. Slight positive pressure combustion

5. Low power consumption

6. High thermal efficiency

7. Good environmental protection effect

8. Easy operation and good maintainability.

Application

1. SZS series fuel gas boilers are widely used in hospitals, schools, textile mills, garment factories, large supermarkets, garment factories, printing

2. Especially for this year to improve environmental standards, coal-fired natural gas boilers use places. Small users, please use the WNS series.

Product parameters

SZS water pipe type full automatic gas-fired hot water energy-saving boiler
Model Rated thermal power nominal working pressure Leaving Water Temperature return water temperature efficiency gas consumption Overall dimensions of transportation
Unit MW MPa ℃ ℃ % Nm³/h mm
QXS(SZS)58 58 1.25(1.6)(2.5) 130(150) 70(90) 98.3 6196 15360*7570*8318
QXS(SZS)48 48 1.25(1.6)(2.5) 130(150) 70(90) 98.09 5048 15600*9500*7920
QXS(SZS)29 29 1.25(1.6) 130(150) 70(90) 97.8 3150 9685*6870*7180
QXS(SZS)21 21 1.0(1.25)(1.6) 115(130)(150) 70(90) 97.13 2328 10130*6170*6134
QXS(SZS)14 14 1.0(1.25)(1.6) 115(130)(150) 70(90) 97.02 1558 8120*3385*3750
QXS(SZS)10.5 10.5 1.0(1.25)(1.6) 115(130)(150) 70(90) 97 1136 7250*3682*3820
QXS(SZS)7 7 0.7(1.0)(1.25) 95(115)(130) 70(90) 96.87 754 6770*3210*3775
QXS(SZS)7 7 1.25 115 70(90) 95.76 763 6760*2780*3299
QXS(SZS)5.6 5.6 0.7(1.0)(1.25) 95(115)(130) 70(90) 95.57 619.2 6450*2956*3620
QXS(SZS)4.2 4.2 0.7(1.0)(1.25) 95(115)(130) 70(90) 95.36 456.7 5700*3105*3410
QXS(SZS)2.8 2.8 0.7(1.0)(1.25) 95(115) 70(90) 95.13 314 5160*2840*2930
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler

Sufficient Output Industrial Gas Fired Boilers , Water Pipe Type Horizontal Boiler
