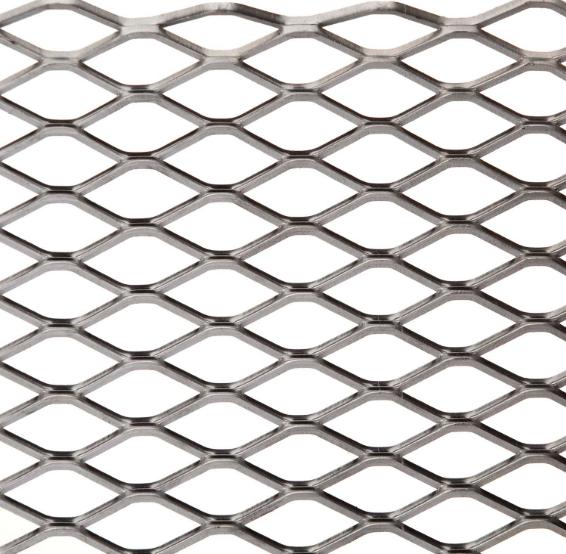

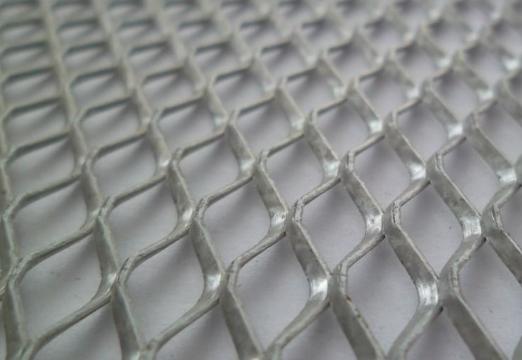

Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Raised Aluminium Expanded Metal Mesh
Specifications
Brand Name :
GNEE
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Product Description

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.

GNEE STEEL also provide Expanded Metal Grating made from carbon steel plates for heavy-duty applications, which is more stronger and durable.

Raised Aluminium Expanded Metal Mesh

Usage
1. Architectural Panels
2. Billboard Walkway
3. Catwalks & Walkway
4. Stairs & Balustrade
5. Drying Racks
6. Security Fences/Grilles
7. Window Guards & Machinery Guards
8. Garden Furnitures

Raised Aluminium Expanded Metal Mesh

Raised Aluminium Expanded Metal Mesh

Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement

Mesh thickness(mm) Distance short(mm) Distance long(mm) Strip(mm) Width (m) Length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26
