Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Expanded Metal Mesh Raised Aluminium
Specifications
Brand Name :
GNEE
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Product Description

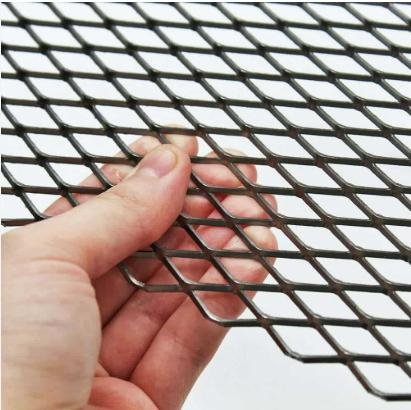

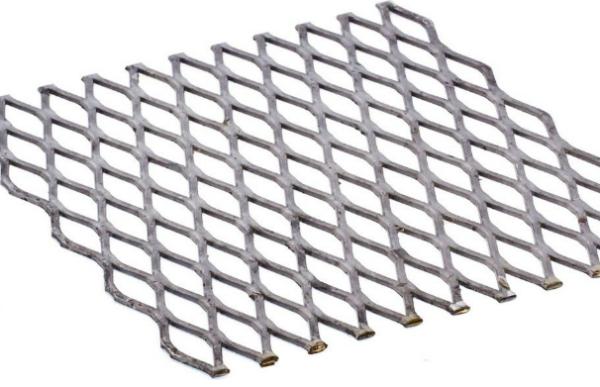

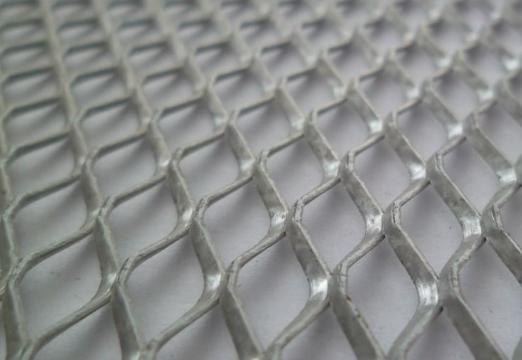

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.

Expanded Metal Mesh Raised Aluminium

1.Material:
Stainless Stee Sheet
Iron Steel Sheet
Aluminium Sheet
We can supply expanded netting in a variety of materials including aluminum, platinum, brass, steel, stainless steel, nickel, etc.

2. Features :
1.Comes from the press after having been die cut and expanded.
2.Ideal for safety guards on equipment or machinery
3.Economical and wear-resistance

Expanded Metal Mesh Raised Aluminium

3.Usage:
1. Architectural Panels
2. Billboard Walkway
3. Catwalks & Walkway
4. Stairs & Balustrade
5. Drying Racks
6. Security Fences/Grilles
7. Window Guards & Machinery Guards
8. Garden Furnitures

mesh thickness(mm) distance short(mm) distance long(mm) strip(mm) width (m) length(m) weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26
