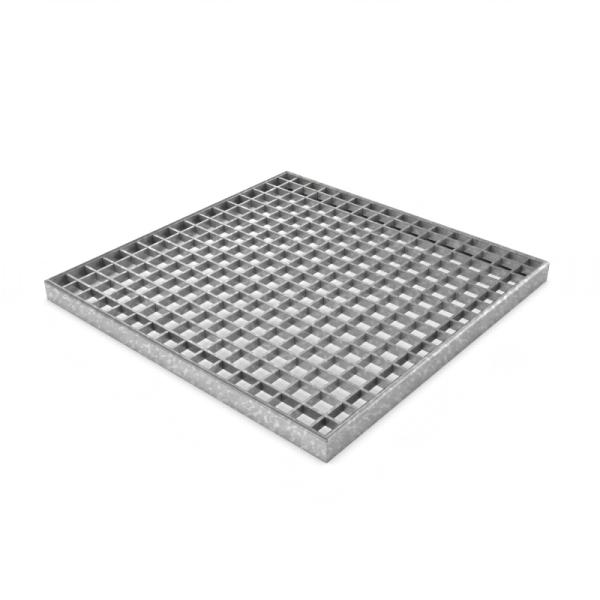

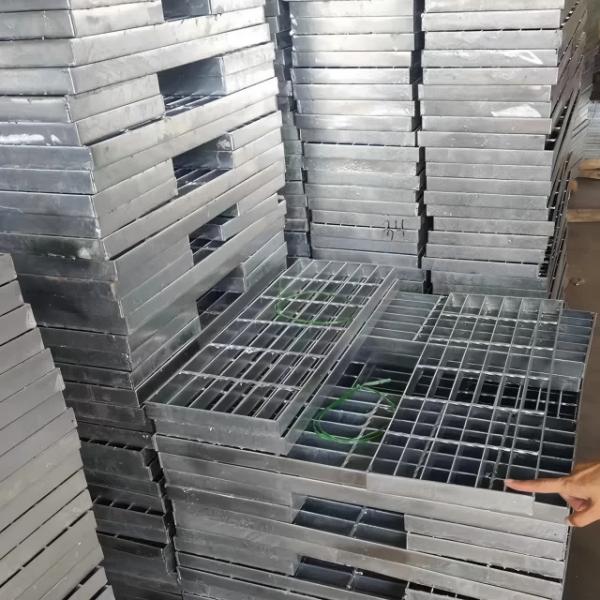

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Specifications
Brand Name :
GNEE
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Description

Heavy duty steel grating are made by welding with heavy flat bar and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties.

Steel grating is hot dip galvanized processing, offers the following advantages: saving materials, saving investment, easy installation, durable in use, light structure, no accumulation of dirt, good performance of ventilation, lighting, heat dissipation,anti-corrosive, anti-acid an alkali corrosion.

Spcification

15-w-4

Bearing Bars at 15/16" O.C.

Cross Bars at 4" O.C.

 15-w-2

Bearing Bars at 15/16" O.C.

Cross Bars at 2" O.C.
19-w-4

Bearing Bars at 1-3/16" O.C.

Cross Bars at 4" O.C.

 19-w-2

Bearing Bars at 1-3/16" O.C.

Cross Bars at 2" O.C.
22-w-4

Bearing Bars at 1-3/8" O.C.

Cross Bars at 4" O.C.

 22-w-2

Bearing Bars at 1-3/8" O.C.

Cross Bars at 2" O.C.
30-w-4

Bearing Bars at 1-7/8" O.C.

Cross Bars at 4" O.C.

 30-w-2

Bearing Bars at 1-7/8" O.C.

Cross Bars at 2" O.C.
38-w-4

Bearing Bars at 2-3/8" O.C.

Cross Bars at 4" O.C.

 38-w-2 Bearing Bars at 2-3/8" O.C.

Product Name Steel grating
Material Low carbon steel / Stainless steel
Grade CN: Q235, Q345, US: A36, UK: 43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 50X4,50X5,60X5,75X8,100X8,100X10mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color Silver/Black

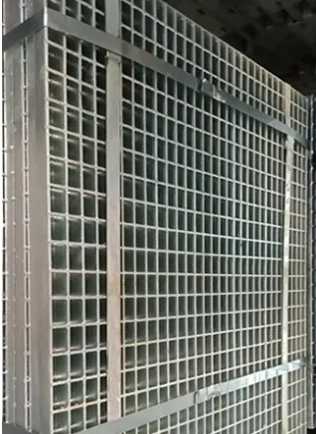

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter

Application

Steel grating can be widely used in petrochemical,water plants,sewage treatment

plants,municipalengineering,environmental engineering and other fields of platforms, walkways, trestlebridge, ditch cover, covers, ladders, fences and railings etc.

Banding

Heavy duty gratings are commonly subjected to shock and impact loads and it is highly recommended that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns. Banding details can be found underSerrated Surface

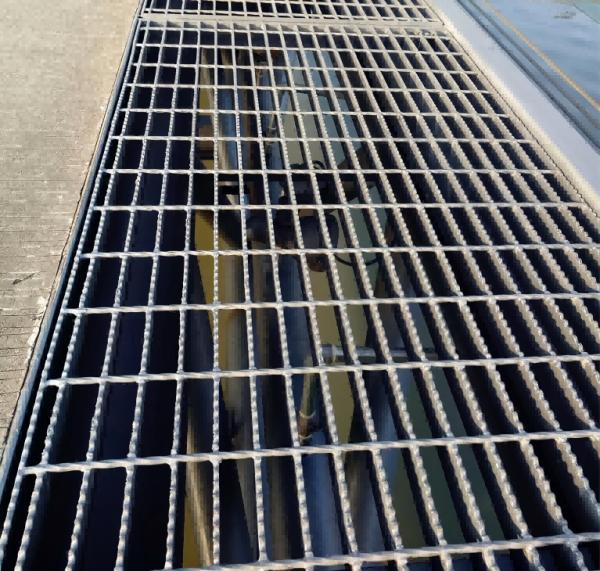

Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations.

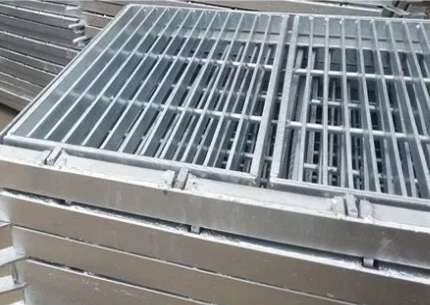

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
