Specifications
Brand Name :
GNEE
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials

Common Specification of Steel Grating
Material Standard
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Bearing Bar
(Width x Thickness)
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style

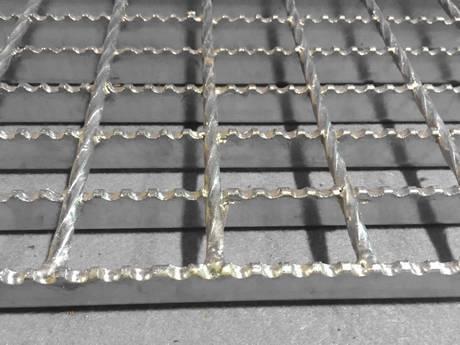

Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
(3) Steel Pallet: Traditional export packing.

Welded Bar Grating is a one-piece metal plank grating manufactured from a single sheet with formed side channels. The perforated buttons provide a walking surface that is slip resistant in all directions. Open area of approximately 35% allow fluids, ice, and mud to easily flow through the grating.

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials
