Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads
Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads
Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads
Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads
Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads
Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

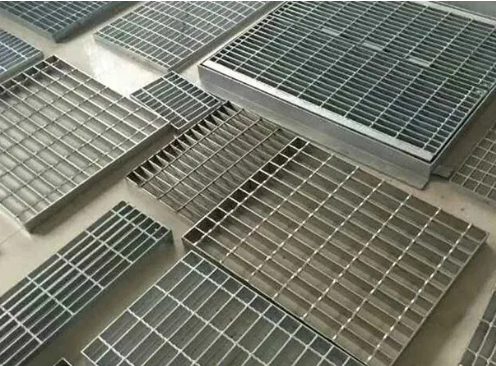

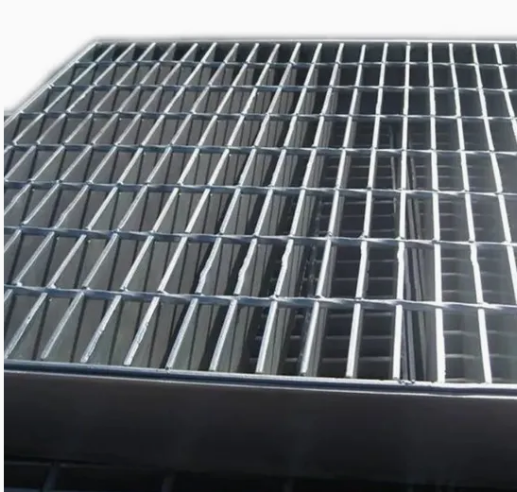

Our Heavy Duty steel bar grating (HD Grating for short) is designed to subject itself to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers, and airports, and therefore its bearing bars are thicker and much deeper than our Standard Duty steel bar grating (SD Grating for short), allowing HD Grating to handle heavier loads.
Our HD Grating is manufactured by an electro-forging process, in which connecting cross members (cold twisted square steel bars or round rods) are resistance welded at a right angle to mild carbon steel bars (bearing bars). During the process, the bearing bars and cross members are permanently forged together by heat and pressure into a single unit construction. Therefore, our HD Grating is also known as Heavy Duty press welded steel grating.
The electro-forging process provides a positive fused connection that makes our HD Grating very durable even under the most demanding conditions.

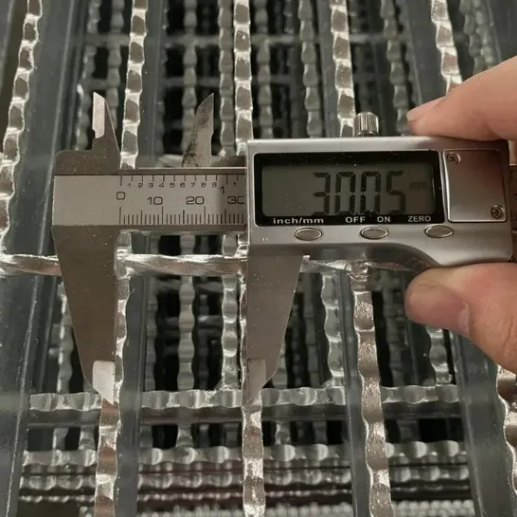

As a rule, our Heavy Duty steel bar gratings are made out of cold rolled Q235 steel shapes. However, there is an exception that both the serrated type of bearing bars and I-bar type of bearing bars are hot rolled Q235 steel shapes.

Heavy-Duty Press Welded Steel Bar Gratings to Service Applications Subject to Heavy Rolling and Static Loads

Technical parameters of our Heavy Duty steel bar grating (HD Grating for short) are shown in the table below:

Specification Table of HD Grating with Plain Top Type of Bearing Bars
Specification Code Size of Bearing Bars Bearing Bar
Spacing
(mm)		 Cross Bar
Spacing
(mm)		 Nominal Weight
(kg/m2)
Depth (mm) Thickness (mm)
G1508/40/100 150 8 40 100 284.90
G1308/40/100 130 8 40 100 247.60
G1208/40/100 120 8 40 100 229.00
G10010/40/100 100 10 40 100 234.90
G1008/40/100 100 8 40 100 191.70
G908/40/100 90 8 40 100 173.10
G808/40/100 80 8 40 100 154.40
G758/40/100 75 8 40 100 145.10
G756/30/100 75 6 30 100 140.10
G756/40/100 75 6 40 100 110.10
G706/30/100 70 6 30 100 131.10
G706/40/100 70 6 40 100 103.20

Note:

  1. The size of cross bars is usually 8mm x 8mm or what you exactly need.
  2. For more information on safe load data, please feel free to contact us, and our engineers will be more than happy to share them with you.
