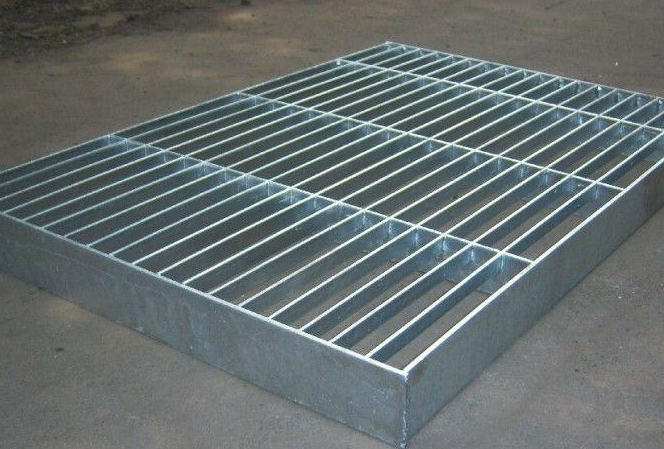

Hot Dipped Galvanized Heavy Duty Steel Grating 70mm x 6mm Bearing Bar

Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings. Our most popular products are described on the following pages.

Materials & Finishes

Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.

Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

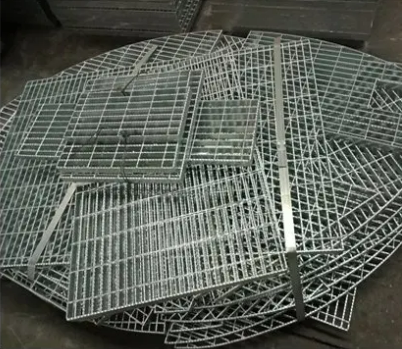

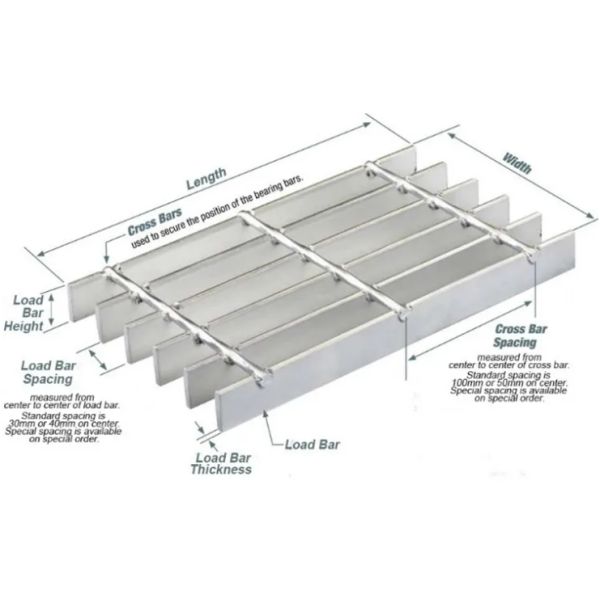

Table of Spacings

15-w-4

Bearing Bars at 15/16" O.C.

Cross Bars at 4" O.C.

15-w-2

Bearing Bars at 15/16" O.C.

Cross Bars at 2" O.C.

19-w-4

Bearing Bars at 1-3/16" O.C.

Cross Bars at 4" O.C.

19-w-2

Bearing Bars at 1-3/16" O.C.

Cross Bars at 2" O.C.

22-w-4

Bearing Bars at 1-3/8" O.C.

Cross Bars at 4" O.C.

22-w-2

Bearing Bars at 1-3/8" O.C.

Cross Bars at 2" O.C.

30-w-4

Bearing Bars at 1-7/8" O.C.

Cross Bars at 4" O.C.

30-w-2

Bearing Bars at 1-7/8" O.C.

Cross Bars at 2" O.C.

38-w-4

Bearing Bars at 2-3/8" O.C.

Cross Bars at 4" O.C.

38-w-2

Bearing Bars at 2-3/8" O.C.

Cross Bars at 2" O.C.

Banding

Heavy duty gratings are commonly subjected to shock and impact loads and it is highly recommended that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns. Banding details can be found under

Serrated Surface

Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations.

How to Specify Heavy Duty Bar Grating

  • Select type of grating
    • “W” for Welded Steel Grating
    • “WS” for Welded Stainless Steel Grating
  • Select bar spacing from table above
  • Select bearing bar size from Load Tables
  • Specify Plain or Serrated surface
  • Specify banding and any additional trim required
  • Specify finish
    • Bare steel (no finish)
    • Painted (red, black, silver, other)
    • Hot Dip Galvanized (per ASTM A-123)
    • Other
  • Specify fasteners
    (if required) - Banding / Layout / Fasteners

Maximum Traffic Conditions

Wheel Load

(Ibs)

(1/2 axle load +30% Impact)

Load Distribution

Parallel

With Axle Perpendicular to Axle

H-25

Truck Traffic 40000lb.Axle Load

Dual Wheels Modified AASHTD H-25

26,000 2(C)+25" 25"

H-20

Truck Traffic 32000lb.Axle Load

Dual Wheels Modified AASHTD H-20

20,800 2(C)+20" 20"

H-15

Truck Traffic 24000lb.Axle Load

Single Wheels Modified AASHTD H-15

15,600 2(C)+15" 15"

Automobile

Automobile Traffic 6,322 Ib Vehicle

3,578 Ib.Load 60%Drive Axle Load

3,861 2(C)+9" 9"

5Ton

Forklift

10000 Ib.Cap.LiftTruck 14000Ib.Vehicle

24,000 Ib.Table Load 85% Drive Axle Load

13,480 2(C)+11" 11"

3Ton

Forklift

6,000 Ib.Cap.Lift Truck 9000Ib.Vehicle

15800 Ib.Table Load 85% Drive Axle Load

8.730 2(C)+7" 7"

1Ton

Forklift

2,000 Ib.Cap.Lift Truck 4200Ib.Vehicle

6200 Ib.Table Load 85% Drive Axle Load

3,425 2(C)+4" 4"
