Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
MOQ :
10 square meter
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

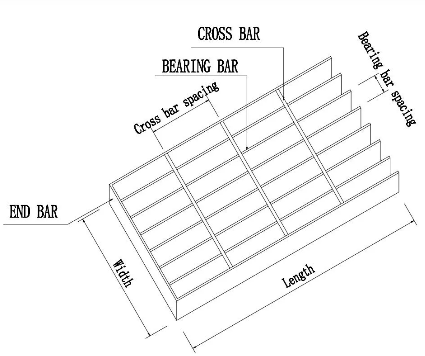

1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel

4) Surface Treatment:
Untreated, Painting or Hot dip galvanizing

5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS

Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating

Material standard
Bearing bar
Cross bar
Bearing bar pitch
Cross bar pitch
Q235
25mm*3mm
5mm
20mm
50mm
25mm*5mm
22mm
30mm*3mm
Q345
30mm*5mm
27mm
32mm*3mm
32mm*5mm
6mm
30mm
ASTM A36
35mm*5mm
40mm*3mm
31mm
100mm
40mm*5mm
ASTM A1011
50mm*5mm
8mm
32mm
60mm*5mm
60mm*8mm
34mm
ss400
75mm*5mm
75mm*8mm
40mm

Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating

Quick Guide to Choosing the Right Flooring

Load 3kPa/Deflection 5mm Load 4kPa/Deflection 5mm Load 5kPa/Deflection5mm
Span(mm) Steel Grating Type Span(mm) Steel Grating Type Span(mm) Steel Grating Type
1500 G255/30/100 1400 G255/30/100 1200 G255/40/100
1800 G325/30/100 1710 G325/30/100 1500 G325/40/100
2100 G405/30/100 1780 G403/30/100 1800 G405/30/100
2400 G505/30/100 2030 G405/30/100 2100 G505/30/100
2800 G655/30/100 2350 G505/30/100 2400 G655/30/100
2400 G655/30/100 2800 G756/30/100

Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating

Hot Galvanized Stair Tread Power Plant Platform Driveway Steel Outdoor Drain Grating
