Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
Specifications
Brand Name :
Gnee
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

HOT DIP GALVANIZED STEEL GRATING

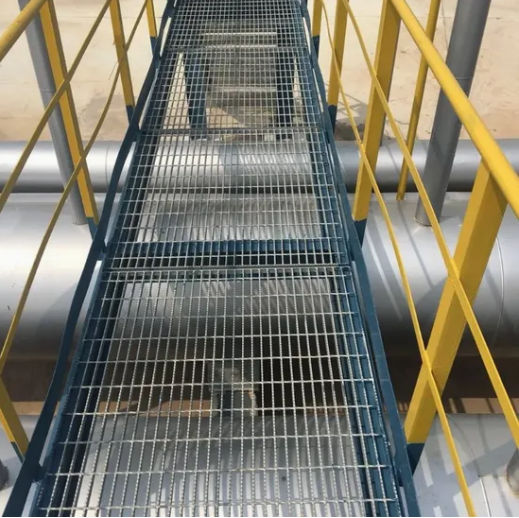

Galvanized steel grating is steel bar according to a certain distance and cross bar arranged and welded into the middle of a square latice with an iron and steel products . It is mainly used on the industrial platform,walking flooring,drainge cover, well cover,oil platform,stair tread step etc.


Press-locked steel bar grating made by fixed size flat steel through slotted, pressure lock plug, finish, etc process. At the intersection point of flat steel and horizontal pole, press horizontal pole into loading flat steel, then fixed it. Sometimes the horizontal pole also used flat steel.

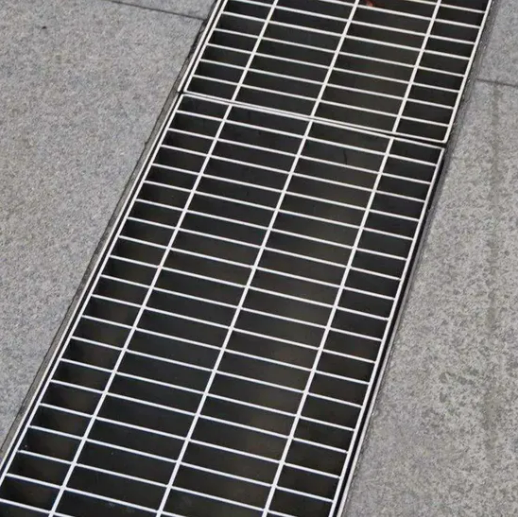

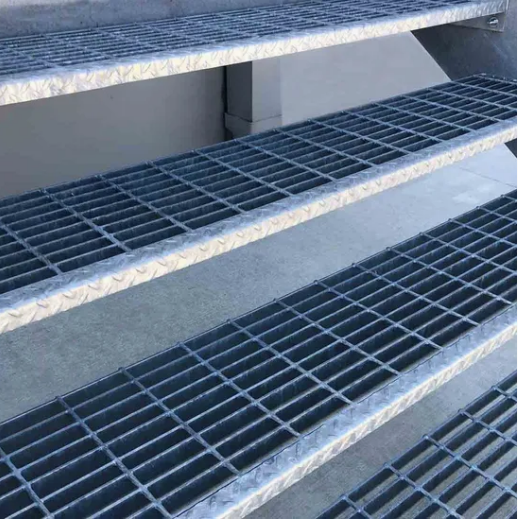

The grating is widely used for floor, catwalk, Mezzanines/decking, stair tread, fencing; vault bin floor floor, ramp, dock/warehouse, all kinds of trench cover, window and machinery safe guards, wash rack, ventilation screen, storage rack, suspended ceiling, drainage pit cover and etc.

Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms

Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms


1. Material Carbon Steel, Stainless Steel
2. Surface treatment

Black, self colour, hot dip galvanized, painted, spray coating

3. Grating Style

Plain / Smooth, Serrated /teeth, I bar, serrated I bar

4. Length& Width

Customized
5. Cross bar

6mm 8mm
6. Cross bar Spacing 50mm 100mm
7. Bearing bar Thinckness 3mm 4mm 5mm
8. Bearing bar depth 25 30 32 35 40 45 50 60mm


Bearing bar pitch Cross bar pitch load steel size ( Width ×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch load steel size (Width ×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms

Heavy Duty 6mm 8mm 50mm Pressure Locked Steel Grating for Industrial Platforms
