Catwalk Pressure Locked Steel Grating Hot Galvanized Building Material
Catwalk Pressure Locked Steel Grating Hot Galvanized Building Material
Catwalk Pressure Locked Steel Grating Hot Galvanized Building Material
Catwalk Pressure Locked Steel Grating Hot Galvanized Building Material
Specifications
Model Number :
pool
Certification :
ISO9001
MOQ :
50pieces
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000t per month
Delivery Time :
4 - 8 work days
Packaging Details :
Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements
Brand Name :
GNEE
Product name :
Building Material Catwalk Steel Grating Press Locked Hot Galvanized
Material :
stainless steel/mild steel,Q235,stainless304/316,low carbon steel
Color :
Black,silver or painted
Welding method :
Machine or manual welding
Steel flat type :
Type F,type I type S,type IS
Flat bar size :
20*3mm,20*5mm,25*3mm,25*5mm,30*3mm,30*5mm,32*3mm,32*5mm,35*3mm,35*5mm
Aplication :
platform,stair tread,walkway,parking lot,trench cover
Surface treatment :
Galvanized,untreated(black self-color),painted
Description

Building Material Catwalk Steel Grating Press Locked Hot Galvanized


Production specification

Steel Grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other propertier. The hot dipped zinc coating gives the product excellent anti-corrosion.

Terms Description
1 Material Low carbon,middle carbon,stainless steel
2. Material standard GB700-88,ASTM(A36),BS4360(43A),AS3679
3. Bearing bar size

20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5,
40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc,
4. Bearing bar pitch 15,20,25,30,33,35,38,40,50,60,80,90mm
5. Cross bar pitch 24-200mm
6. Surface treatment Hot dipped galvanized,painted,self-color,
7. Grating standard YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985
8. Bearing bar type F,I ,S,IS type
9. Application Floor walkway,industrial platform,stair tread,metal ceiling
10. Feature

Fine appearance,anti-corrosive,simple installation,light weight,
high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion
11. Payment terms TT,L/C
12. Package

Pallets in containers packed by steel strap and worthy sea shipping,
or according to the customers' requirements
13. Product capacity 10days for a 20”

Catwalk Pressure Locked Steel Grating Hot Galvanized Building MaterialCatwalk Pressure Locked Steel Grating Hot Galvanized Building Material

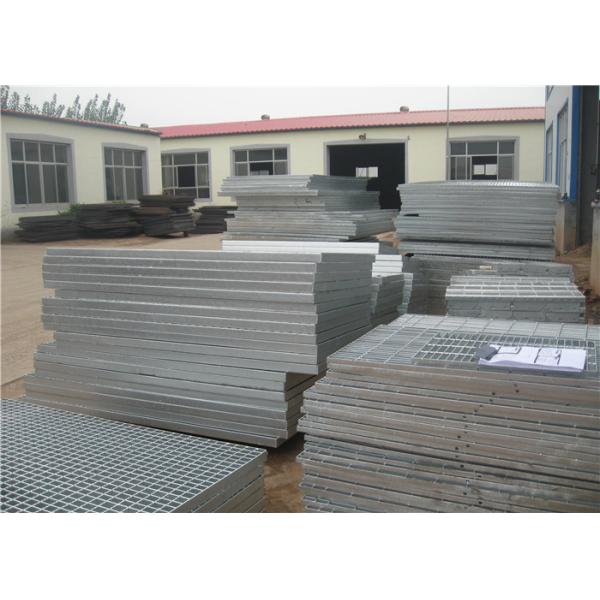

Our factory and equipment

We have nearly 10 years of experience in manufacturing High quality steel grating with various sizes.

galvanized steel grating are widely used by various plants such as electric power b ,petroleum, chemical

industry, metallurgy industry, machinery industry, shipbuilding, harbor ,oceanographic engineering

,building ,paper mills ,cement plant ,medicine ,spinning and weaving ,foodstuff factory, transportation,

municipal administration, parking lot, etc.

Catwalk Pressure Locked Steel Grating Hot Galvanized Building Material

How to order:
1. Kindly indicate the specifications,size,quantities,and required surface treatment of steel grating.

2. Give type and quantity of fastener.In principle,each piece of grating needs four sets of fasteners.

3. Please offer construction plan when big floor areas are required to cover with steel gratings.

Also provide constructional elevation drawing and joint details as well as section size and location of

supporting steel beam.

if any openings are required on such floor areas.

4. When ordering stair treads,please state out types of stair treads,and the specification,length,width,

quantity and required surface treatment for grating used.
