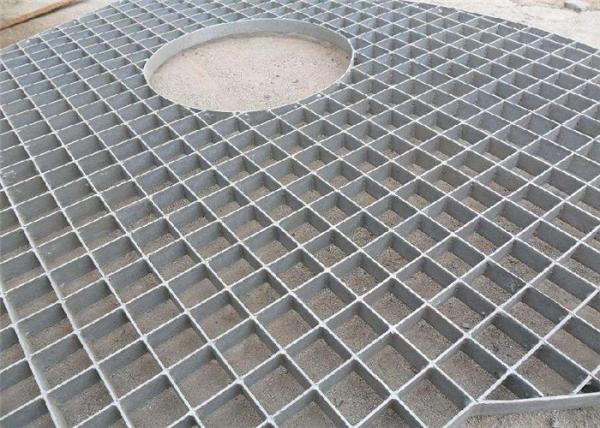

Floor Pressure Locked Steel Grating Metal Grid Hot Galvanized Anti - Sliding
Floor Pressure Locked Steel Grating Metal Grid Hot Galvanized Anti - Sliding
Floor Pressure Locked Steel Grating Metal Grid Hot Galvanized Anti - Sliding
Floor Pressure Locked Steel Grating Metal Grid Hot Galvanized Anti - Sliding
Specifications
Model Number :
Galvanized press locked flat bar grating
Certification :
ISO9001
MOQ :
50 pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000t per month
Delivery Time :
4-7 work days
Packaging Details :
Pallets and customers request
Brand Name :
Gnee
Product name :
Floor Press Locked Metal Grid Hot Galvanized Anti - Sliding Grating
Grid plate shape :
Common shape , special - shaped
Grating type :
Compsite type , common type
Bar pitch :
20,25,30,32.5,34.3,40,50,60,62,65mm
Material :
Stainless steel/mild steel,Q235,stainless304/316,low carbon steel
Color :
Sliver,black or painted
Application :
Petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing
Description

Floor Press Locked Metal Grid Hot Galvanized Anti - Sliding Grating


The press locked welded steel grating,requested by the customers,is made of load flat steel bar,placed horizontally and vertically,and at an equal pitch apart,by welding with 200-ton hydraulic resistance automatic welding equipment,then cutting,punching and banding ends.

Product Name Steel grating
Material Low carbon steel / Stainless steel
Grade CN: Q235, Q345, USA: A36, UK: 43A
Standard CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard CN: GB/T13912, USA: ASTM (A123), UK: BS729
Color Silver/Black
Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing


Quality standard

Standard for steel grid Standard for steel material Standard for hot dipped galvanization
China YB / T4001.1 - 2007 GB700 - 88 GB / T 13912 - 2002
USA ASNI / NAAMM ( MBG531 - 88 ) ASTM ( A36 ) ASTM ( A123 )
UK BS4592 - 1 - 1995 BS4360 ( 43A ) BS729
Australia AS1657 - 1992 AS3679 AS1650


Our company

We have nearly 18 years of experience in manufacturing High quality Steel Grating with various sizes,We can supply plain Type-s, Type-I, cross or composite grating according to customers’ requirements.The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties.

We warmly welcome friends from all corners of the world both at home and abroad to patronize us ,

We wish us cooperate successfully and create the brilliant future together!

Floor Pressure Locked Steel Grating Metal Grid Hot Galvanized Anti - Sliding

Characteristics of the products

1 High strength and light structure

2 Powerful anti-corrosion, durable and long workiing life

3 Beautiful appearance ,bright surface

4 No dirt-rain-snow deposit ,antomatic cleaning ,easy maintenance

5 Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion

6 Easy installation and disassembly
