Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel bar grating is defined as an open grid assembly of steel bars. Steel bar grating is well known for its high strength and robust structure, and it is comprised of bearing bars and cross bars. The bearing bars have a cross-sectional depth much greater than width and are held at equal, parallel spacing by cross bars.
The manner in which the cross bars are attached determines the construction type of steel bar grating.


Steel bar grating is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel bar grating is available in a variety of bearing bar spacing, depths and widths depending on applications and load requirements. It is ideally suited for Walkways, Mezzanines, Stair Landings, Stair Step Treads, Trailer Flooring, Bridge Platforms, Industrial platforms, Trench Grates, Drain Covers and more.

Heavy Duty Galvanized Serrated Steel Grating - Pressure Locked Bar Grating for Industrial Platforms

Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar(widthxthickness)


20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100

50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100

50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50
G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar(widthxthickness)


32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100

50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100

50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50
Materials Q195, Q235 ,Q235B / 304 316 Stainless Steel
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating

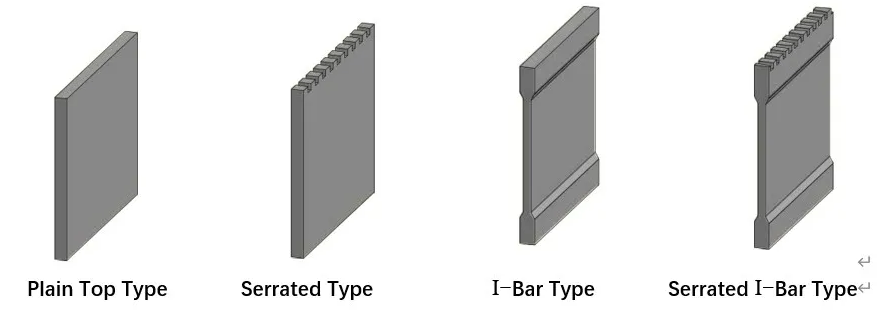

Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Grating Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JJS
