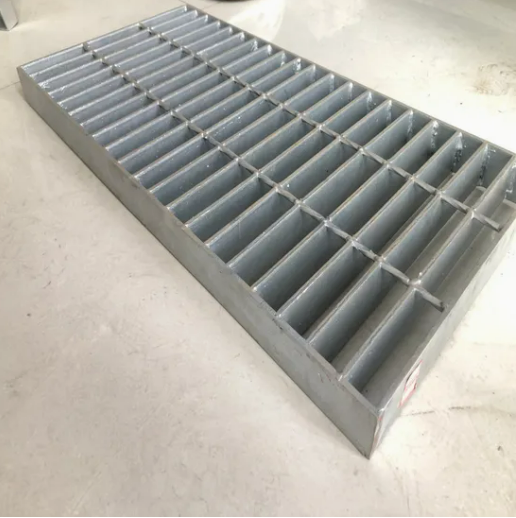

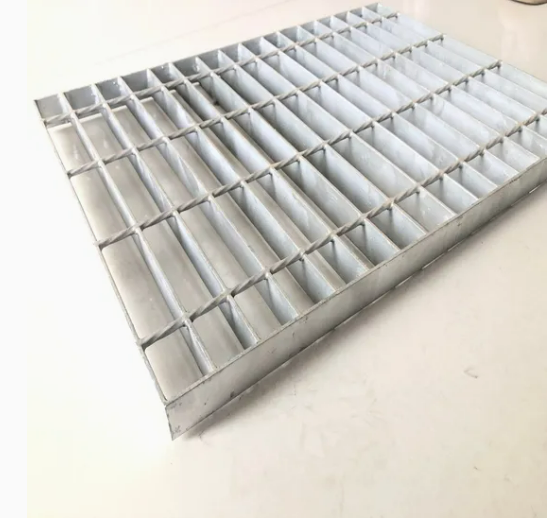

Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms
Specifications
Brand Name :
Gnee
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel Grating Common Specifications

G325/30/76

The grating with the pitch of 30mm between bearing bars and of 76mm between cross bars is the most popular type used home and abroad.it is proper for many applications such as walkways,platforms,etc.

G325/60/50

The grating with the pitch of 60mm between bearing bars and of 50mm is developed specially for mining industry.it solves the problem of mineral splash on the plate.so it is often appointed to use in processing works of mining industry.

G325/30/xx

The steel grating with 30mm spacing is the most widely used type in the industrial field. In the common steel grid series, the surface impact has a strong resistance.

G325/40/xx

The steel grating with a distance of 40mm is the most economical, lighthearted type and the most ideal choice for a small span.

Type Welded steel grating,pressure-locked,socket-welding
Steel flat size 20x3,25x3,25x5,30x3,30x4,30x5,32x3,32x5...45x5mm
Beraing bar pitck 12.5,15,20,25,30,35,40,50mm
Cross bar pitch 38,50,80,100mm
material Low carbon steel,stainless steel,aluminium
Surface treatment Untreated,hot galvanized,painted
Standards China:YB/T 4001.1-2007
USA:ANSI/NAAMM(MBG531-88)
UK:BS4592-1987
Australia:AS 1657-1985



Hot Galvanizing

Normally, Hot galvanizing will be carried out after end welding process. When the thickness of bearing bars is not less than 5mm, the weight of average Zinc Layer will not be less than 610g/mf. when the thickness of bearing bars is less than 5mm, the weight of average Zinc Layer will not be less than 460g/ m.The quality and requirements after hot galvanizing are subject to the standards of GB/T 13912.
