Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
Specifications
Brand Name :
Gnee
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

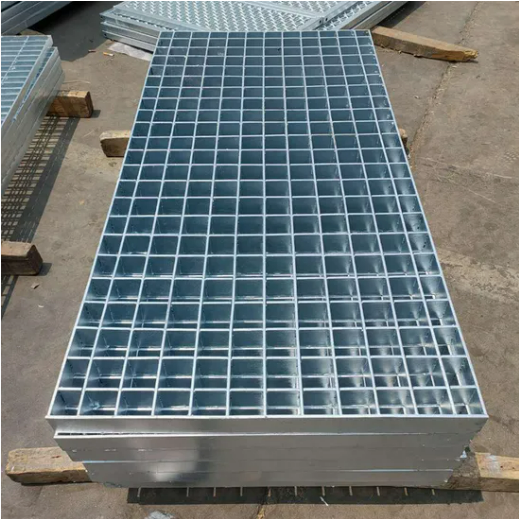

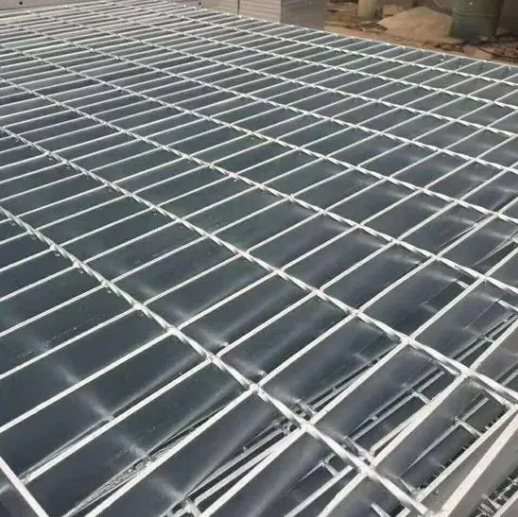

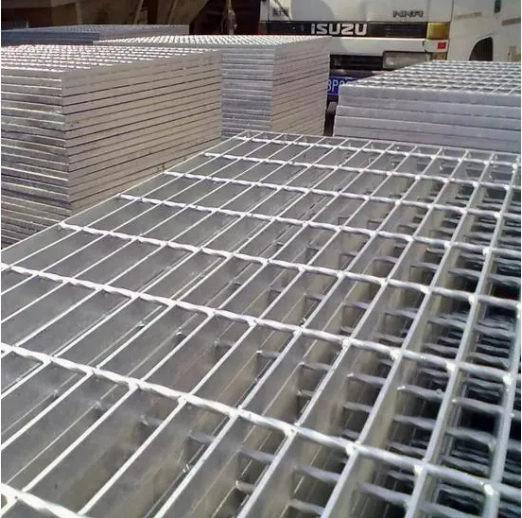

Pressure Locked Grating

Pressure Locked Grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.

The high percentage of open area makes bar grating nearly maintenance free and all products are fully recyclable.

Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; Mild carbon steel, 6000 series aluminum and 300 series stainless steels.


Methods of Manufacturing

Welded Grating

Economical design ideal for most industrial applications.

Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment.

Available in carbon steel and stainless steel.

Dovetail Pressure
Locked Grating

Assembled by inserting pre-punched bearing and cross bars into an "eggcrate" configuration and deforming the cross bars under intense hydraulic pressure.


Common sizes of platform steel grating plate :

Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load(width×thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50
G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load(width×thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size

Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size

Hot-DIP Galvanized Pressure Locked Steel Grating with 6000 Series Aluminum and 300 Series Stainless Steels in 20×3 Size
