​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​
Specifications
Brand Name :
ZMSH
Model Number :
Fiber Laser Marking Machine
Certification :
rohs
Place of Origin :
CHINA
MOQ :
5
Price :
by case
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
3-6 months
Laser Power :
20W 30W 50W 60W 80W 100W 120W 150W 200W
Laser Wavelength :
1064nm
Frequency Range :
1-600KHz 20-200KHz
Pulse Width :
200ns 50-110ns
Spot Diameter :
7±0.5mm 6.5±1mm
Beam Quality :
<1.5 <1.6
Description

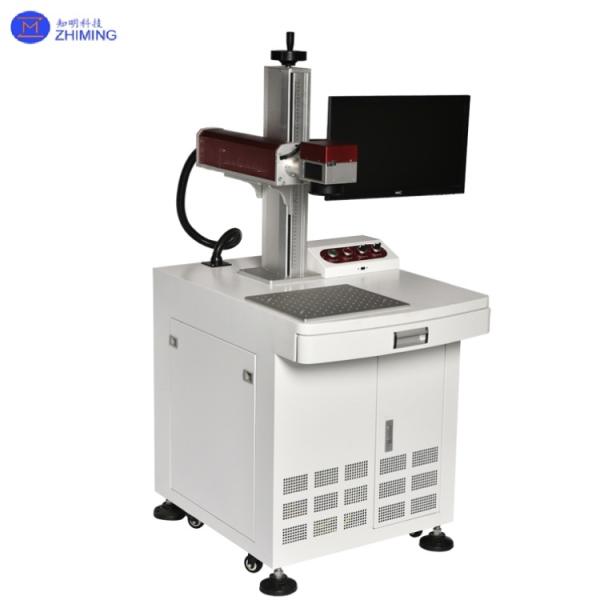

Fiber laser marking machine of equipment overview

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

A fiber laser marking machine is an advanced industrial solution designed to deliver ​​permanent, high-resolution markings​​ (text, patterns, QR codes, serial numbers) on diverse materials with micron-level precision. Renowned for its ​​non-contact processing​​, ​​energy efficiency​​, and ​​24/7 operational stability​​, it has revolutionized industrial marking by replacing traditional methods like inkjet printing (prone to smudging) and mechanical engraving (limited by material hardness).

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

​​Company-Specific Enhancements​​

  • ​​Customized Solutions​​: Tailored marking parameters (e.g., power/frequency adjustments) for specialized materials (e.g., titanium alloys, anodized aluminum) .
  • ​​Integrated Services​​:
  1. ​​Pre-Installation Support​​: On-site workflow analysis to optimize marking efficiency.
  2. ​​Post-Sale Maintenance​​: 7×24-hour technical support and spare part availability to minimize downtime .
  3. ​​Software Upgrades​​: Free access to AI-driven pattern recognition for automated batch marking.

​​Strategic Role in Production​​

  • ​​Quality Assurance​​: Ensures traceability across industries (e.g., medical device serialization, automotive part authentication) .
  • ​​Cost Efficiency​​: Reduces material waste by 90% compared to chemical etching and eliminates ink/consumable expenses .
  • ​​Scalability​​: Compatible with IoT systems for real-time data integration in smart manufacturing .

This synergy of cutting-edge technology and comprehensive service support positions the fiber laser marking machine as a ​​core enabler of industrial digital transformation​​.

Fiber laser marking machine of technical specifications

Laser Power

 20W 30W 50W 60W 80W 100W 120W 150W 200W

Laser Wavelength

 1064nm

Frequency Range

 1-600KHz 20-200KHz

Pulse Width

 200ns 50-110ns

Spot Diameter

 7±0.5mm 6.5±1mm

Beam Quality

 <1.5 <1.6

Polarization Direction

 Random

Carving Speed

 ≤10000mm/s

Engraving Range

 110mm*110mm (Custom optional)

Engraving Depth

 0.1mm-2.0mm (Depending on the material)

Working Temperature

 0-40℃

Cooling Way

 Air Cooling

Working Environment

 Dry, clean, and ventilated

Power Supply

 AC220V/50Hz (Custom optional)

Power Consumption

 ≥0.6KW ≥1KW ≥1.3KW ≥1.8KW

Equipment Weight

 ≈85KG

Fiber laser marking machine of ​​key components​

Fiber laser marking machine's system integrates five core subsystems for coordinated operation:

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

1. Core Light Source: Fiber Laser​​

  • ​​Technology​​: Employs rare-earth-doped fibers (e.g., ytterbium) as gain media. Semiconductor pump sources (980/1480 nm) excite ions, generating stimulated emission within an integrated resonator.
  • ​​Advantages​​:
  1. Electro-optical conversion efficiency up to 30% .
  2. Beam quality (M² ≤ 1.05) and long lifespan (>100,000 hours) .

2. Optical System: Galvanometer Scanner + F-theta Lens​​

  • ​​Galvanometer Scanner​​: X/Y-axis mirrors deflect the laser beam for 2D scanning, achieving kHz-level response speeds.
  • ​​F-theta Lens​​: Focuses the beam to a spot diameter of 0.01–0.2 mm, ensuring high energy density (10⁶–10⁸ W/cm²) .

​​3. Control System​​

  • ​​Software​​: Converts vector graphics (DXF, AI) or raster images into machine-readable commands (e.g., EZCAD, MarkMan).
  • ​​Hardware​​: PCI/USB interfaces synchronize with galvanometers for real-time power/frequency adjustments.

​​4. Auxiliary Systems​​

  • ​​Workstation​​: Fixtures for parts (manual/automatic loading).
  • ​​Cooling​​: Air-cooled (low power) or water-cooled (≥30 W) systems .

Fiber laser marking machine of ​​operating principles​

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

Fiber laser marking machine's process involves four stages of laser-material interaction:

​​1. Laser Generation​​

  • Pump light excites rare-earth ions in the fiber, creating population inversion. Stimulated emission produces coherent laser pulses.

2. Beam Focusing​​

  • Mirrors direct the beam through the scanner and F-theta lens, forming a micrometer-scale focal spot.

3. Material Interaction​​

  • ​​Thermal Ablation​​: Dominates for metals. High energy density melts/vaporizes surface layers (e.g., stainless steel oxidation for dark marking).
  • ​​Photochemical Effects​​: Used for plastics/ceramics (e.g., ABS carbonization) .

4. Mark Solidification​​

  • Rapid cooling (metals) or molecular stabilization (non-metals) preserves permanent marks.

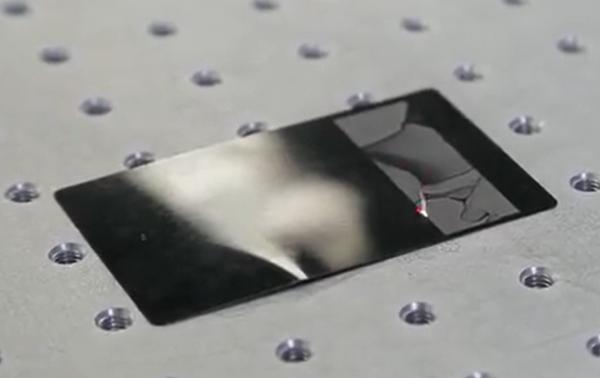

Fiber laser marking machine process samples:

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

​

Fiber laser marking machine of ​technical advantages

Parameter

Performance

​​Precision​​

0.01 mm spot size, 0.1 mm character

​​Speed​​

Up to 10,000 mm/s

​​Lifespan​​

>100,000 hours (laser source)

​​Maintenance​​

No optical alignment, minimal downtime

​​Material Compatibility​​

Metals, ceramics, plastics, wood

Fiber laser marking machine of industrial applications​

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

1. Electronics & Automotive​​

  • ​​Semiconductors​​: Wafer identification, PCB traceability . ​​
  • Automotive​​: Engine part serialization, brake disc anti-counterfeiting .

2. Medical Devices​​ ​​

  • Surgical Tools​​: Stainless steel etching. ​​
  • Pharmaceuticals​​: Tamper-proof vial labeling . ​​

3. Aerospace & Defense​​ ​​

  • Aircraft Components​​: Aluminum alloy part marking (heat-resistant). ​​
  • Composite Materials​​: Fiber layer engraving (no delamination) . ​​

4. Consumer Goods​​ ​​

  • Luxury Packaging​​: Tamper-evident holographic patterns.
  • ​​Jewelry​​: Micro-engraved hallmarks .

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

Fiber laser marking machine of environmental & operational benefits​​

​​20W-200W Fiber Laser Marking Machine for Metal and Non-metal Laser Engraving​​

  • Service life is up to 100,000 + hours

  • Zero consumables, maintenance-free

​

  • Suitable for all kinds of metal ​

Fiber laser marking machines excel in precision, speed, and adaptability, making them indispensable in industries demanding traceability and aesthetic quality. Ongoing advancements (e.g., MOPA pulsing for anodized aluminum) and AI-driven automation further expand their applicability in smart manufacturing.

FAQ of fiber laser marking machine

1. Q: What is a fiber laser marking machine?

A: A fiber laser marking machine is a high-precision device that uses fiber lasers to create permanent marks (text, patterns, QR codes) on metal/non-metal surfaces via laser-material interaction.

2. Q: What materials can be marked with a fiber laser?

A: It works on metals (stainless steel, aluminum), non-metals (plastics, ceramics), and some coated materials, covering industrial and daily items.

Tags: #Fiber Laser Marking Machine, #20W-100W, #Marking on Stainless Steel/Components, #​​20W-200W, #Metal and Non-metal, #Laser Engraving​​
