SiC Precision Bonding Machine for Wafers, Graphite Paper, and SiC Seeds

Product Overview

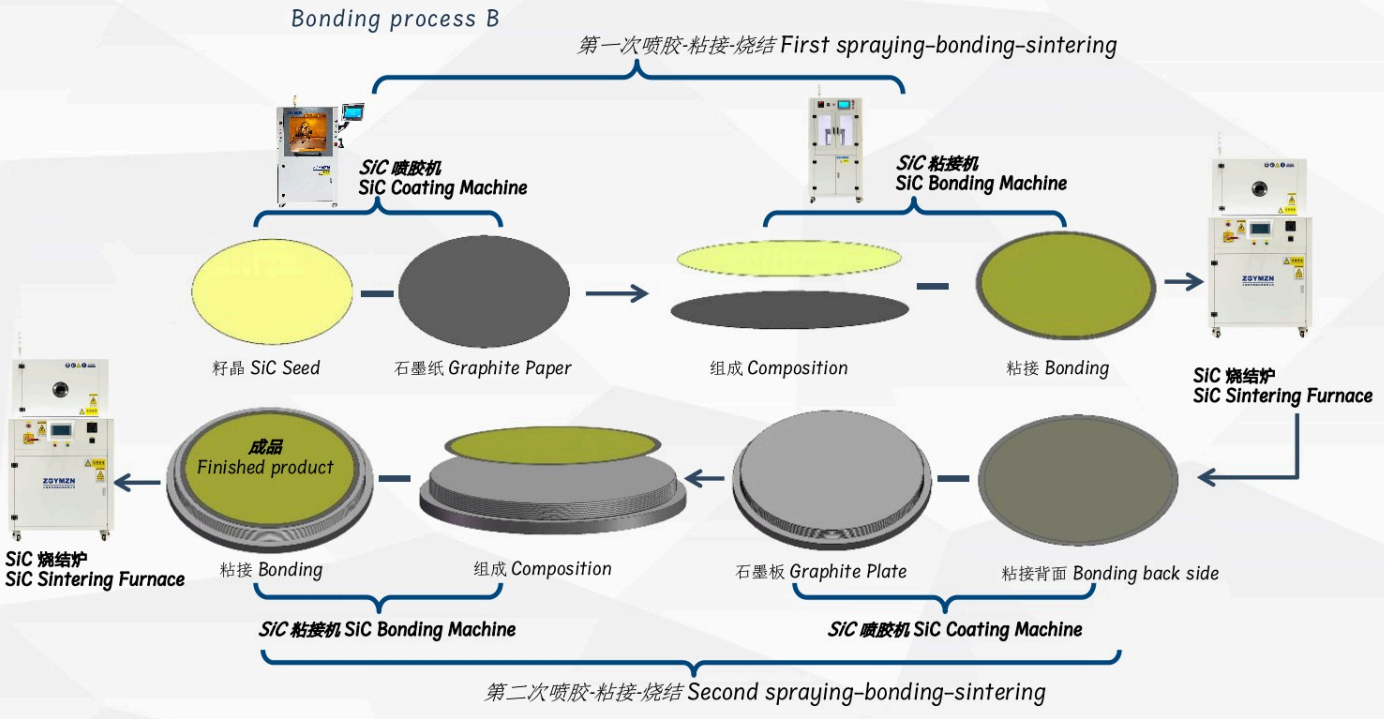

The SiC Bonding Machine is a high-precision system designed to bond wafers, SiC seeds, graphite paper, and graphite plates. It provides accurate center alignment, vacuum-assisted bonding, and adjustable pressure, ensuring bubble-free, uniform, and stable bonding.

This machine is ideal for semiconductor manufacturing, SiC seed preparation, high-temperature ceramics, and research or pilot-scale applications. It offers a reliable, reproducible process for materials that require high precision and integrity.

Key Advantages

• High Bonding Precision: Accurate alignment guarantees uniform bonding across the substrate.

• Bubble-Free Bonding: Vacuum-assisted bonding removes trapped air and prevents defects.

• Adjustable Pressure: Ensures uniform compression for consistent bonding quality.

• Material Compatibility: Supports wafers, SiC seeds, graphite paper, and graphite plates.

• Stable and Reproducible Process: Ideal for small-batch or pilot-scale production.

• User-Friendly Operation: Simple interface for easy control and process monitoring.

System Features

• Center Alignment Mechanism: Precisely positions wafers, SiC seeds, and graphite plates.

• Vacuum-Assisted Bonding: Eliminates air bubbles in the adhesive layer.

• Adjustable Pressure System: Ensures uniform interface compression.

• Programmable Process Parameters: Temperature, pressure, and dwell time can be set for specific materials.

• Data Logging and Monitoring: Records process parameters for quality assurance.

• Compact and Modular Design: Easy to integrate into existing workflows.

Technical Specifications

Typical Applications

• SiC Seed Bonding: High-precision bonding of SiC seeds to wafers or substrates.

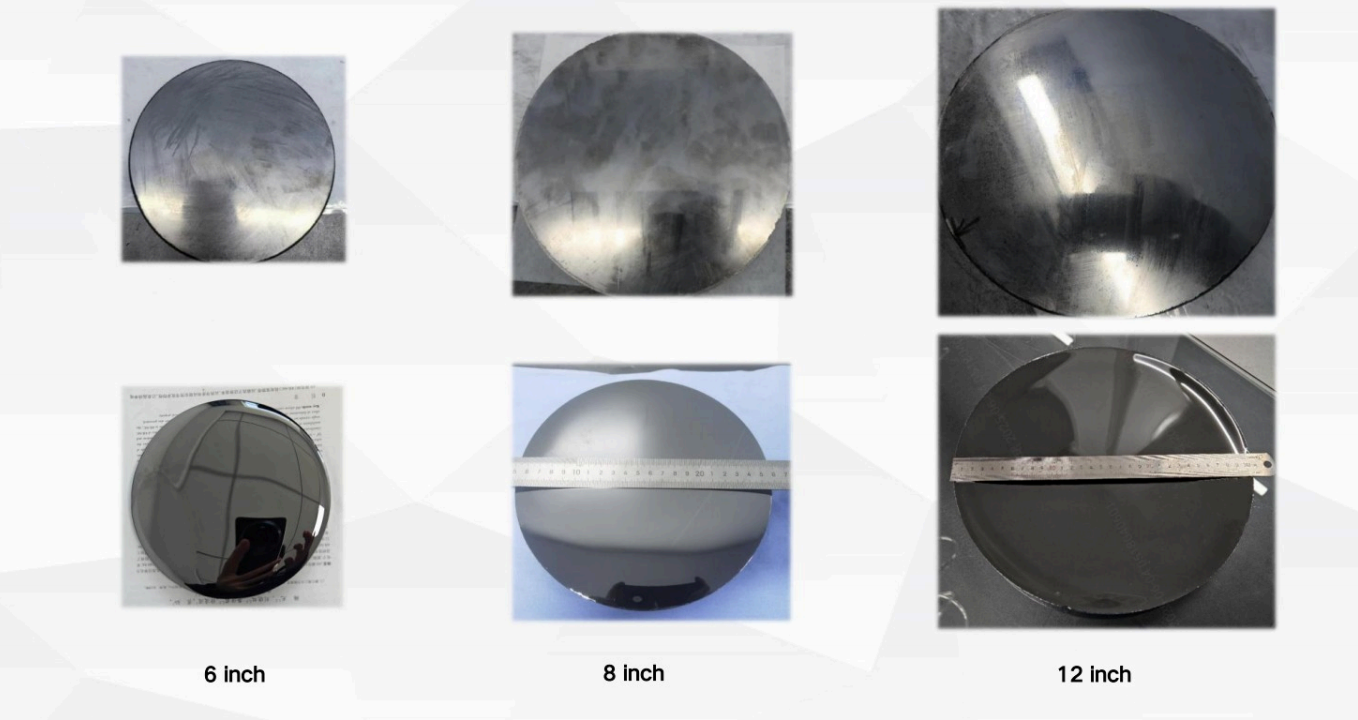

• Semiconductor Wafers: Bonding single or multi-layer wafers.

• Graphite Substrates: Bonding graphite paper or plates for high-temperature applications.

• R&D and Pilot Production: Small-batch or research-scale bonding.

• High-Temperature Materials: Bonding ceramic or composite substrates.

FAQ – Frequently Asked Questions

Q1: What substrates can this bonding machine handle?
A1: Wafers, SiC seeds, graphite paper, and graphite plates, including rigid and flexible substrates.

Q2: How is bubble-free bonding achieved?
A2: Vacuum-assisted bonding removes trapped air, ensuring a defect-free adhesive layer.

Q3: Is the bonding pressure adjustable?
A3: Yes, pressure is adjustable from 0–5 MPa for uniform interface compression.

Q4: Can this machine support pilot-scale production?
A4: Yes, it is suitable for research, pilot-scale, and small-batch production.

Q5: Is the machine easy to operate?
A5: Yes, the system features a user-friendly interface and semi-automated alignment for easy operation.
