Thermocouple / Infrared Sensor Level Measurement Instruments For Arc Furnace
Thermocouple / Infrared Sensor Level Measurement Instruments For Arc Furnace
Thermocouple / Infrared Sensor Level Measurement Instruments For Arc Furnace
Thermocouple / Infrared Sensor Level Measurement Instruments For Arc Furnace
Specifications
Brand Name :
Hongxin
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Display Type :
Digital LCD
Response Time :
Less than 1 second
Application :
Temperature measurement in furnaces
Calibration :
Factory calibrated with certificate
Operating Temperature :
-10°C to 50°C
Sensor Type :
Thermocouple / Infrared
Type :
Industrial Measurement Instruments
Accuracy :
±1°C
Output Signal :
4-20mA / RS485
Description

Level Measurement Instruments Used for Arc Furnace

SAF and EAF require monitoring of circulating water tank level, gas holder level, and bin stock level to ensure continuous and stable system operation.

1. Level Meter

Type Measuring Principle Measuring Range Accuracy Applications

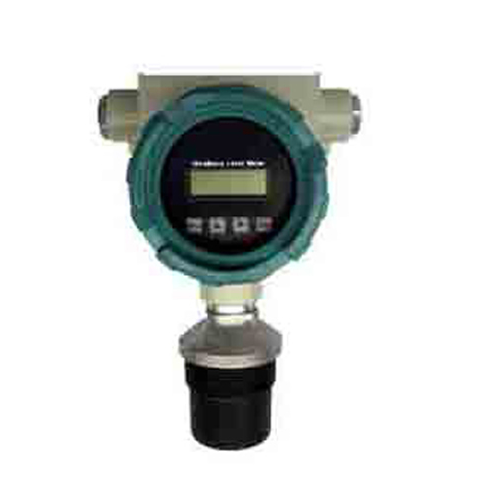

Ultrasonic Level Meter Sound wave reflection 0~20m 0.5%FS Water tank level, bin stock level

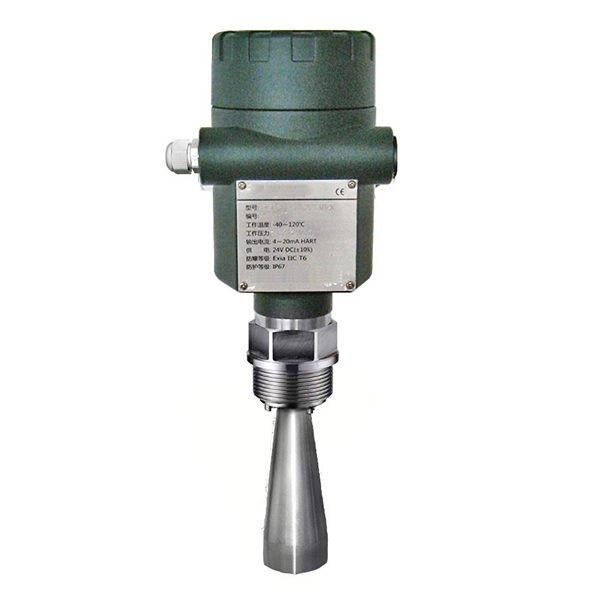

Radar Level Meter Electromagnetic wave reflection 0~30m ±2mm High temp, high pressure, volatile liquid/solid
Hydrostatic Level Meter Hydrostatic pressure 0~100m 0.2%FS Water tank, non-pressurized vessel level
Rotary Paddle Level Switch Rotation obstruction Custom rod length Switching Bin high/low level alarm
Tuning Fork Level Switch Vibration frequency change Custom insertion depth Switching Fine powder, granular material level alarm
Plumb Bob Level Meter Weight detection 0~40m ±5cm Large bin continuous level measurement

2. Level Instrument Selection Reference

Measurement Scenario Recommended Instrument Selection Reason
Circulating water tank level Ultrasonic level meter / Hydrostatic level meter Non-contact/economical, easy installation
Steam drum/accumulator level Capacitive / Differential pressure level meter High temp and pressure resistance
Gas holder level/capacity Laser / Radar level meter High accuracy, unaffected by gas
Bin stock level (continuous) Radar level meter / Plumb bob level meter Dust-resistant, high reliability
Bin stock level (switch) Rotary paddle / Tuning fork level switch Simple, reliable, low cost
