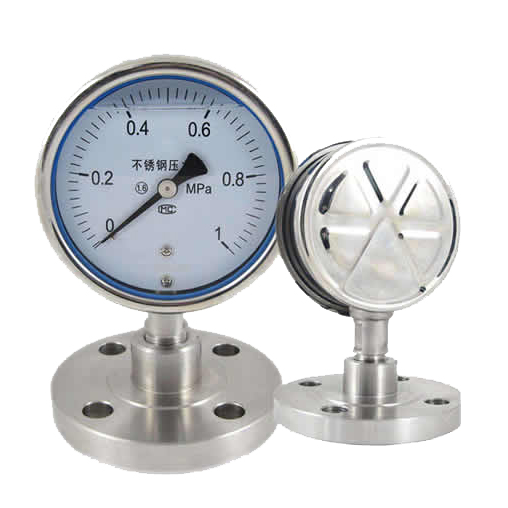

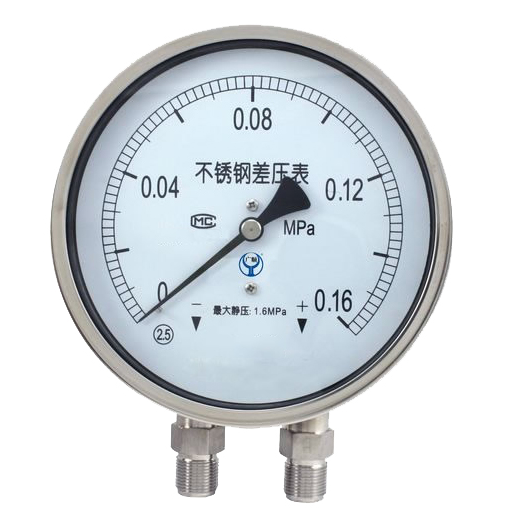

SAF And EAF Furnace Pressure Measurement Instruments 220V / 380V
SAF And EAF Furnace Pressure Measurement Instruments 220V / 380V
SAF And EAF Furnace Pressure Measurement Instruments 220V / 380V
SAF And EAF Furnace Pressure Measurement Instruments 220V / 380V
Specifications
Brand Name :
Hongxin
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Operating Voltage :
220V / 380V
Safety Features :
Over-temperature protection, Emergency shut-off
Type :
Industrial Furnace Equipment
Heating Method :
Resistance / Induction
Dimensions :
Customizable based on model
Energy Efficiency :
High efficiency with insulation technology
Control System :
Digital Microprocessor Controller
Description

Pressure Measurement Instruments
SAF and EAF require monitoring of key pressure parameters including furnace chamber pressure, gas pressure, cooling water pressure, and hydraulic system pressure to ensure stable furnace pressure, equipment safety, and proper process operation.

2.1 Pressure Transmitter

TypeMeasuring PrincipleMeasuring RangeAccuracyOutput SignalApplications
Capacitive Pressure TransmitterCapacitance change-0.1~40MPa0.075%~0.1%FS4~20mA+HARTGeneral pressure, differential pressure
Piezoresistive Pressure TransmitterPiezoresistive effect-0.1~60MPa0.1%~0.25%FS4~20mAHydraulic system, oil pressure monitoring
Diaphragm-Sealed Pressure TransmitterIsolated diaphragm-0.1~10MPa0.1%~0.2%FS4~20mAClogging-prone, high-viscosity media
Low Differential Pressure TransmitterCapacitive/Silicon resonant0~1kPa0.1%FS4~20mAFurnace micro-differential pressure control (±15Pa)

2.2 Pressure Switch

TypeSetting RangeContact RatingProtection ClassFeaturesApplications
Mechanical Pressure Switch-0.1~40MPa10A/250VACIP65Simple structure, low costPressure high/low alarm, interlock protection
Electronic Pressure Switch-0.1~60MPa0.5A/24VDCIP67High accuracy, adjustable setpointAutomation control system pressure monitoring

2.3 Pressure Instrument Selection Reference

Pressure Measurement ScenarioRecommended InstrumentSelection Reason
Furnace chamber pressure (low DP)Low DP transmitter (≤1kPa)High accuracy, good stability, absolute error <±15Pa
Gas pressureDiaphragm-sealed pressure transmitterClog-proof, corrosion-resistant
Cooling water pressureCapacitive pressure transmitterGeneral purpose, cost-effective
Hydraulic system pressurePiezoresistive pressure transmitterWide range, impact-resistant
Alarm/interlock protectionPressure switchFast response, high reliability
