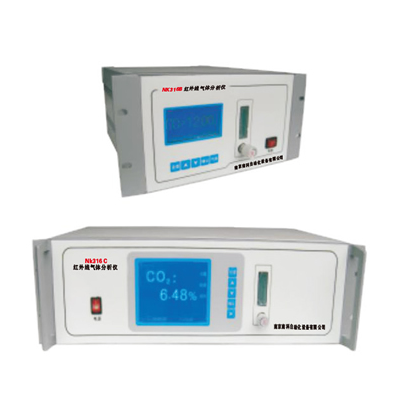

Gas Composition Analyzer Furnace Instruments Industrial Measurement Instruments RS485
Gas Composition Analyzer Furnace Instruments Industrial Measurement Instruments RS485
Specifications
Brand Name :
Hongxin
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Response Time :
Less than 1 second
Application :
Furnace temperature and process monitoring
Display Type :
Digital LCD
Accuracy :
±1°C
Material :
Stainless Steel
Power Supply :
AC 220V / DC 24V
Type :
Industrial Measurement Instruments
Calibration :
Factory calibrated, field adjustable
Output Signal :
4-20mA / RS485
Installation Type :
Panel Mount / Wall Mount
Description

Gas Composition Analysis Instruments
SAF gas contains combustible gases including CO, H₂, CH₄, etc. The closed furnace gas purification and recovery system requires real-time gas composition monitoring to ensure safe operation and recovery efficiency.

1. Gas Analyzer

TypeMeasured ComponentsRangeAccuracyResponse TimeApplications
Infrared Gas AnalyzerCO, CO₂, CH₄0~100%±1%FS≤15sSAF gas composition online analysis
Zirconia Oxygen AnalyzerO₂0~25%±1%FS≤5sFlue gas oxygen content monitoring
Thermal Conductivity Gas AnalyzerH₂0~100%±2%FS≤15sHydrogen content monitoring in gas
Electrochemical Gas SensorO₂, CO, H₂S0~1000ppm±5%≤30sSafety monitoring, toxic gas alarm
Gas ChromatographMulti-component0~100%±1%FS2~10minLaboratory precise analysis

2. Gas Analysis System
The SAF gas analysis system consists of sampling unit, pre-treatment unit, analysis unit, calibration unit, and control unit, with the following features:

Full stainless steel sampling probe, dust/water-proof pre-treatment
Response time ≤15s
System dust filtration ≤0.5μm
System reliability MTBF >3 years
Sampling probe service life ≥5 years, maintenance-free throughout life
System maintenance interval >1 year
Automatic/manual back-flushing anti-clogging device
Output signal: 4~20mA, control alarm signal NO/NC

3. Gas Analysis Instrument Selection Reference

Measurement ScenarioRecommended InstrumentSelection Reason
SAF gas CO/CO₂/CH₄Infrared gas analyzerOnline continuous monitoring, fast response, high accuracy
Flue gas oxygen contentZirconia oxygen analyzerHigh temp resistant, direct insertion, fast response
Gas H₂ contentThermal conductivity gas analyzerH₂ sensitive, good linearity
Safety monitoring/leak alarmElectrochemical gas sensorHigh sensitivity, suitable for low concentration alarm
Toxic/flammable gas monitoringLocal audible/visual alarm, control room display alarmSafety standard requirement
Flue gas composition analysisConsider background gas effects, equip pre-treatment systemDust removal, dehumidification, lag treatment
