8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight With 28 Dots x 28 Dots
8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight With 28 Dots x 28 Dots
8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight With 28 Dots x 28 Dots
8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight With 28 Dots x 28 Dots
Specifications
Brand Name :
Viso
Model Number :
PH 3.91 481
Certification :
UL/CE/ROHS/FCC/ISO/EMC
Place of Origin :
China
MOQ :
1 pcs / 1 sqm
Price :
negotiation factory
Payment Terms :
L/C T/T Western Union Paypal Credit Card MoneyGram VISA
Supply Ability :
8,000 square meters per month
Delivery Time :
4-6 work days
Packaging Details :
Wooden box or Flight case
Brightness :
6500cd/m2
Cabinet Size :
500x500mm Or 500x1000mm
Outdoor Waterproof :
IP65 / IP54
Life Span :
>100,000hours
Refresh Rate :
1000-2500HZ
Pixel Pitch :
4.81 3.91
Screen Dimension :
3m*2m
Description


Video wall displays 8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight with 28dots x 28dots

Key features:
1. Slim and light weight, only 11 Kg/pc2. Quick lock installation
3. User-friendly support bar
4. Seamless surface with module combination instead of strip
5. Super thin mask
6. Indoor & outdoor available

Technical Parameters:

Pixel Pitch 8.925mm
Pixel Density 12554dots/sqm
Color Configuration 1R1G1B
LED Package SMD3535
Module Size 250mm x 250mm
Module Resolution 28dots x 28dots
Drive Duty 1/7 Scan Constant Current
Module Weight 0.5KG/pcs
Standard Cabinet Size 500mm x 500mm/500mm x 1000mm
Cabinet Weight 8KG/15KG
Brightness 7000cd/sqm
Viewing Distance 8m-100m
Viewing Angle H: 120°; V:160°
Refresh Rate 1000HZ
Frame Rate 120frame/sec
Grey Scale 16.7M colors(Synchronized)
Color Temperature R.G.B brightness 256 level adjustable
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 600W/sqm
Ave. Power Consumption 200W/sqm
Storage Temperature -30℃~+70℃
Working Temperature -20℃~+50℃
Blind Spot Rate <1/10000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10%~95%
PC Display Resolution 1024x768
Control PC With DVI Graphic card
Control Method Synchronous, Asynchronous, 3G,WIFI,USB
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS

1. Application

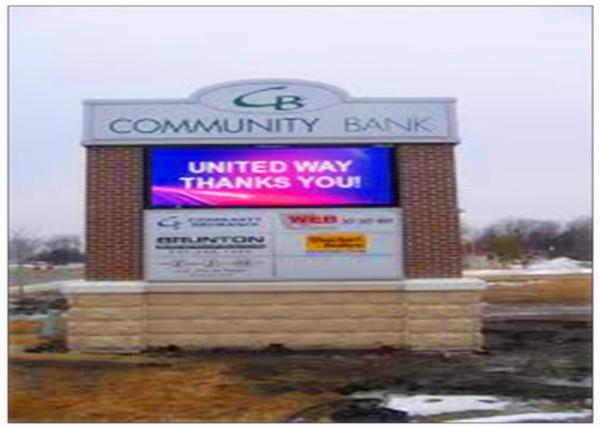

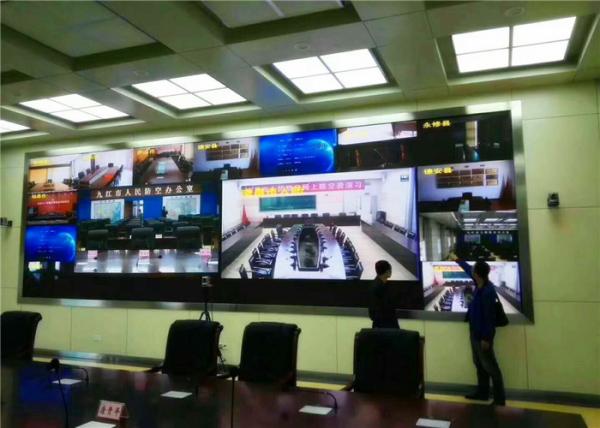

Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc

2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Product advantages:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps
3) Service advantage: Better service at same situation, better cooperation at same service

Trade Terms:
1). Payment: T/T ,ususally 40% prepayment before production, 60% balance to be paid before delivering,it also change according to total quantity
2). Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3). Sample can be deliveried within 3days
4). Shipping port: Shenzhen, Mainland China
5). Discounts are offered based on order quantities
6). MOQ:1 sqm/1pcs

Our service:
1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English .
3). OEM&ODM, any your customized screen we can help you to design and put into product.
4). Distributor ship are offered for your unique design and some our current models .
5). Protection of your sales area, ideas of design and all your private information

8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight With 28 Dots x 28 Dots8.9mm Pixel Pitch SMD LED Mesh Screen Light Weight With 28 Dots x 28 Dots
