1 / 8 Scan P5 Waterproof Outdoor LED Screens , LED Video Wall Panels 3G Control
1 / 8 Scan P5 Waterproof Outdoor LED Screens , LED Video Wall Panels 3G Control
Specifications
Brand Name :
Viso
Model Number :
PH5
Certification :
UL CE ROHS ISO ETL SGS SAA Fcc EMC
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiation
Payment Terms :
L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA
Supply Ability :
5,000 square meters per month
Delivery Time :
4-6 work days
Packaging Details :
Wooden box or Flight case
Led Lamps :
SMD2727
Pixel configuration :
RGB 3 in 1
Scan :
1 / 8 Scan
Warranty :
5 years
resolution ratio :
32 x 32dots
Output Voltage :
5V , 40A
Protection Level :
IP67
Pixel density :
7500 dots / mm
Description


large led display panels​ 1 / 8 Scan P5 Waterproof Outdoor LED Screens , led video wall panels 3G Control

Specifications :

1.Pixel Pitch: 5mm
2.Type: SMD2727
3.Aplication : Outdoor
4.Using : Outdoor Pole LED Screen

Parameters :

The specifications Pole LED Screen
Items Parameter
Product Model P5 Full Color Led Module
Module size 320 x 160mm
resolution ratio 32 x 32dots
Pixel pitch 5.0mm
Pixel density 7500 dots/mm
Pixel configuration RGB 3 in 1
Driving method Constant Current Driving,1/8 scan

Working voltage/

Module maximum power consumption

 DC5V,22W
Led Lamps SMD2727
Red Wavelength 620nm
Green Wavelength 520nm
Blue Wavelength 470nm
The specifications of cabinets
Frame rate 60Hz/Second
Refresh rate ≥1000HZ
Display colour 16384
Grey scale 16384
Brightness in White Color (cd/m2) 5000-6300 CD/mm
Brightness adjustment

5000-6300CD,automatic or

manual 1%-100%
Color temperture 3000-13000
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating temperature sub zero 10℃~55℃
Stock temperature sub zero 10℃~65℃
Operating humidity 10%-90%RH
Average power consumption ≤400W/mm
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 5m - 40m
Input Voltage 220V/110V, 50Hz/60Hz
Output Voltage 5V,40A
Protection Level IP67
Operating system XP, WIN7, WIN8,VISTA
Control Mode Synchronization
Input Signal

MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/

RA/RMJ/ASF/Composite,etc

Product Features :

1. Fational design, hight brightness for outdoor usage, timing backlight
2. Intelligent light sensitive and temperature control
3. Sunshine-proof, anti-dust, waterproof, easy maintenance
4. Multiple timing, hardware decoding, embedded system
5. Adopting SMD hight brightness lights, wide view angle, 5000:1 high contrast, soft image;
Widely located in street lamp posts.

Application :

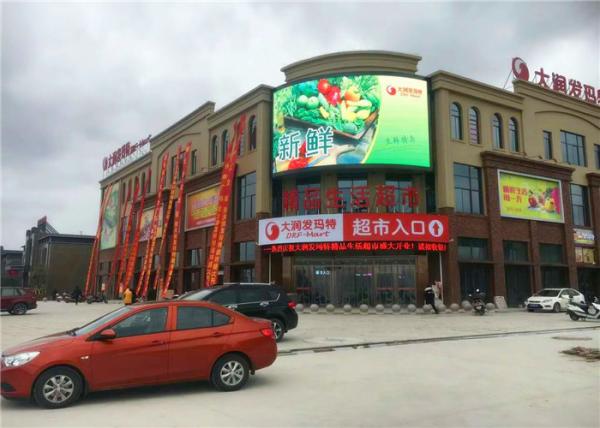

It can be used on road, mall stage, high-grade residence district, tourist attractions, 4S stores, hospital entrance and many more outdoor places.
Packaging & Shipping :

1. FedEx/DHL/UPS/TNT , Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5-10 days for samples; 10-15 days for batch goods.
