Flexible Tri Color LED Sign Large SMD P10 LED Panel , Outdoor Digital Signage For Party
Flexible Tri Color LED Sign Large SMD P10 LED Panel , Outdoor Digital Signage For Party
Flexible Tri Color LED Sign Large SMD P10 LED Panel , Outdoor Digital Signage For Party
Flexible Tri Color LED Sign Large SMD P10 LED Panel , Outdoor Digital Signage For Party
Flexible Tri Color LED Sign Large SMD P10 LED Panel , Outdoor Digital Signage For Party
Flexible Tri Color LED Sign Large SMD P10 LED Panel , Outdoor Digital Signage For Party
Specifications
Brand Name :
Viso
Model Number :
PH10
Certification :
UL/CE/ROHS/FCC/ISO/EMC
Place of Origin :
China
MOQ :
1 pcs / 1 sqm
Price :
negotiation factory price
Payment Terms :
L/C T/T Western Union Paypal Credit Card MoneyGram VISA
Supply Ability :
8,000 square meters per month
Delivery Time :
4-6 work days
Packaging Details :
Wooden box or Flight case
Waterproof Level :
IP65
LED Chip :
Epistar+Silan
Brightness :
>8000nits
Drive Mode :
1/4 Scan Constant Current
Refresh Rate :
≥1200Hz
Pixel Resolution :
10000pixels/sqm
Lifetime :
50000hours
LED :
SMD3535
Description


Product Features:
1) Light-weight. Convenient in transporting and installing saving labor cost, suitable for flow shows.
2) Nice appearance and simple structure.
3) Jointed precisely, being installed dismounted by one person without tool.
4) Humanized operating interface with breakdown indicator lights, easy to maintain.
5) High debugging brightness and no damage for nice image.

Application:

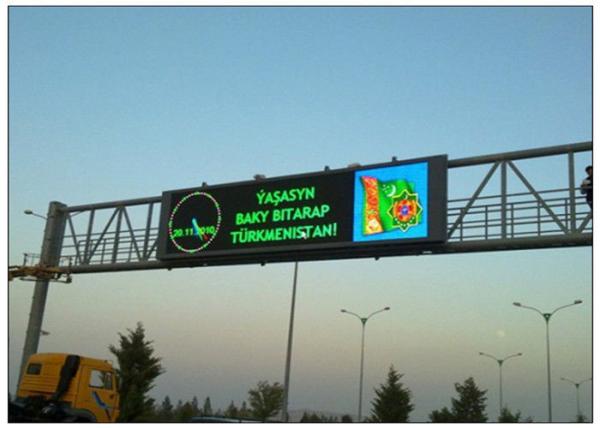

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc. Live broadcast: Gym, Stadium, Concert, Sport Match, Competition, Gov publication etc. Rental business: Entertainment, Wedding, Party etc.

Technical Parameters:

P10 Outdoor Advertising LED Video Wall
Pixel Pitch: 10mm Pixel Density: 15625dots/square meter
Pixel Configuration: SMD3535 Driving Method: 1/2 Scan
Module Resolution: 16x16dots View Angle: 140H,120V
Module Pixles: 256dots Optimal Viewing Distance: 8-140m
Module Size: 160mmx160mm Brightness Control: Red,Green and Blue 4096 Grade/Each
Cabinet Size(W*H*D): 960mmx960mm Fresh requency: ≥1200Hz
Cabinet Resolution: 96x96dots Input Voltage: AC220V/60Hz
Module Quanity: 36pcs Defects Rate: ≤0.00001
Cabinet Pixels: 9216dots Power Consumption: Max:750W/sm Average:350W/sm
Brightness: ≥7500cd/square meter Screen weight: 55KG/Cabinet
MTBF: >10,000 hours Life span: ≥100,000 hours
Earth Leakage Current: <3mA Humidity-operating: 10%~95%
Protective Grade: IP65 Controlling system: Nova
Temperature-operating: -20℃~50℃ Operating System: Windows XP/7/8

1. High Resolution 6944
2. High Brightness 12000nit
3. Ultrathin & super light
4. Five years warranty
5. Low power consumptio

Display and Control Feature
Items Parameter
Pixel Pitch 10mm
Pixel composing 1R1G1B(3IN1)
Wavelength (R) 625±5nm
Wavelength (G) 522±2.5nm
Wavelength (B) 567±2.5nm
Wave Angle (H) 140°(H)/140°(V)
LED package SMD3535
Density 10000
Display color 256*256*256
Whiteness brightness ≥5500nit
Brightness level 128 grade
Changing frame frequency 60 Hz
Refresh 1000 Hz
Driving method Constant current 1/4 scan
Control mode synchronous
Display port DVI
MTBF >5000 hours
Out of control 1/10,000 ( scattered)
lifetime 100,000 hours
Structure Feature
Items Parameter
LED module size 320mm*160mm
Display resolution/module 96 dots*96dots
Standard cabinet size 960*960mm
Weight per sqm 50 Kg/sqm
Protection classification IP65
Install mode Wall mounted, hung and stand structure
Cabinet Material Aluminum/Iron
Working Power
Specification Parameter
Working voltage AC 220v/380v±10% 47~64Hz
Max power/sqm 950W/sqm
Average power/sqm 400W/sqm
Short circuit protection Yes
Working Environment
Specification Parameter
Environment Outdoor
Working temperature --20~60°C
Working Humidity 10~90%

Meanwell power
Unequalled brightness & extreme viewing angles
Slim, light-weight, modular design
Accurate color uniformity and smoother, flicker-free video
Ultimate picture quality, longevity and low cost of ownership
5 years warranty
