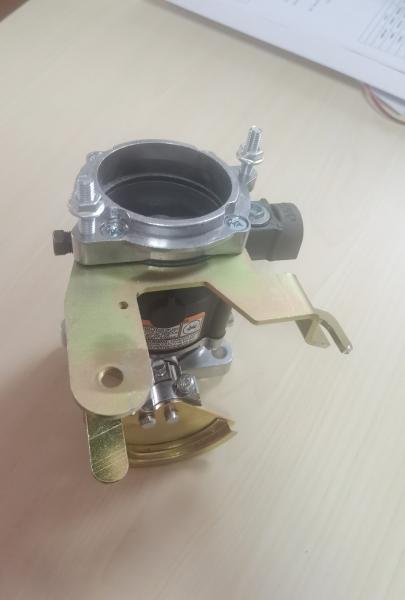

CA55-500 Natural Gas Impco Lpg Mixer Fuel System Parts
CA55-500 Natural Gas Impco Lpg Mixer Fuel System Parts
Specifications
Brand Name :
IMPCO
Model Number :
CA55M-500
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Fuel Type :
LPG Vapor or Natural Gas, Bi-Fueled with Gasoline
Operating Temperature Range :
-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
Up to 75 hp (55.9 kW) Flow Rate: 118CFM(55.7L/s)
Flow Rate :
118CFM (55.7 L/s)
Inlet Pressure :
-1.5” w.c. (-0.37 kPa)
HP/kW Rating :
Up to 75 hp (55.9 kW) @ 118 CFM (55.7 L/s) and 2.0” Hg manifold depression
Horsepower :
Up to 73 hp (54 kW) @ 118 CFM (55.7 L/s) and 2.0” in Hg manifold depression
Description
Model CA55-500 Mixer Only : Carburetion Equipment
IMPCO CA55-500 Carburetor specifications:
This Model CA55-500 is for use with either LPG Vapor or Natural Gas on engines from 1.5 to 73 hp (1 to 54kW) with a flow rate of 118 CFM (59.0 L/s). This flow-through design may be mounted in either a downdraft, updraft, or side draft configuration. Various air horns and flange sizes are available.
DESCRIPTION
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c. (-0.37 kPa)
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Any
Diaphragm Material N/A
HP/kW Rating Up to 75 hp (55.9 kW) @ 118 CFM (55.7 L/s) and 2.0” Hg manifold depression

CA55-500 Natural Gas Impco Lpg Mixer Fuel System Parts

CA55-500 Natural Gas Impco Lpg Mixer Fuel System Parts
CA55-500 Natural Gas Impco Lpg Mixer Fuel System Parts

PLEASE REFER TO THE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

  • ITEM IS A CARBURETOR MIXER ONLY
  • BODY ASS'Y: AB1-38
  • AIR/GAS VALVE: AV1-14925
  • [A] CENTER TO CENTER BOLT SPACING: N/A
  • [B] BORE: N/A
  • [C] AIR HORN DIA.: N/A
  • [D] OVERALL WIDTH: 104.8mm (4.125")
  • [E] NPT FUEL INLET: 3/8"
  • [F] OVERALL HEIGHT: 57.2mm (2.250")
  • [G] THROTTLE BODY HEIGHT: N/A
  • [H] THROTTLE SHAFT DIA.: N/A
  • [J] FLANGE TO TOP OF MIXER: N/A
