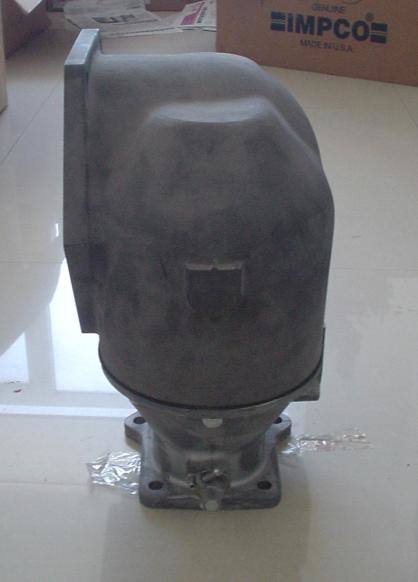

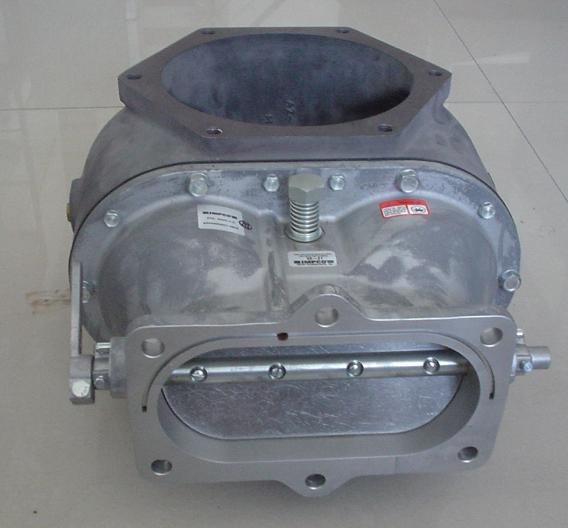

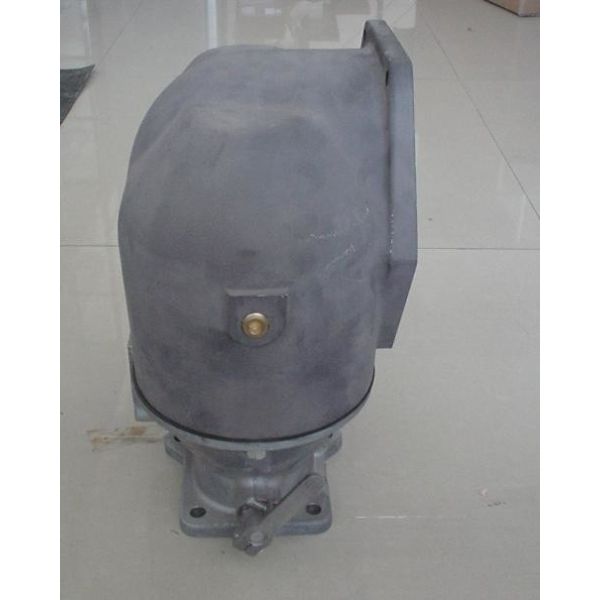

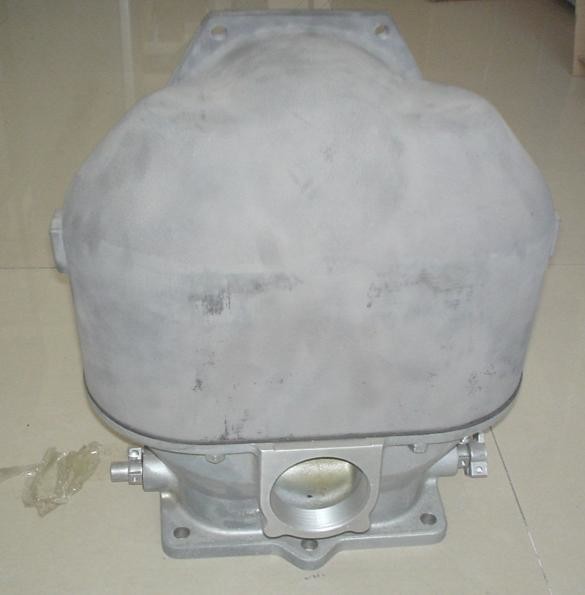

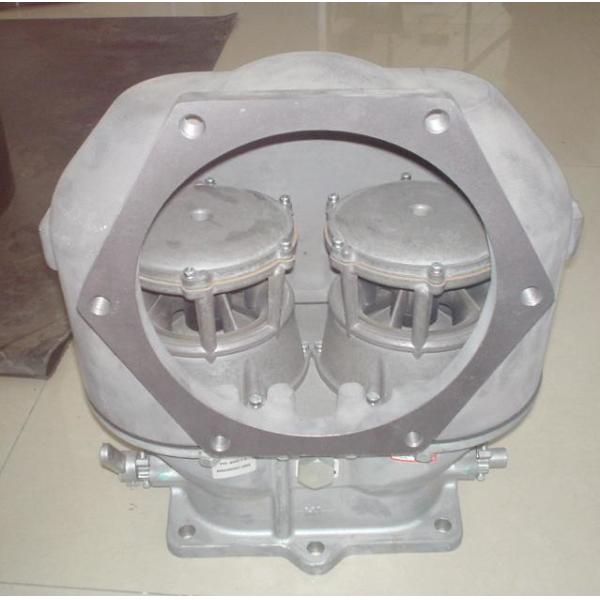

1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
Specifications
Brand Name :
IMPCO
Model Number :
Model 600D
Certification :
UL
Place of Origin :
USA
MOQ :
24
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Material :
Aluminum
Fuel Type :
LPG Vapor -- 90% + Propane; Natural Gas--85% + Methane; Digester Gas-- 56-72% Methane; Landfill Gas -- 45-56% Methane
Operating Temperature Range :
.-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
1000hp (745.7kw)
Flow Rate :
1600CFM (755L/s)
Inlet Pressure :
+5.0” w.c. (1.24 kPa) over Air Inlet (Idle Setting)
Mounting Position :
Vertical
Diaphragm Material :
Silicone
Description

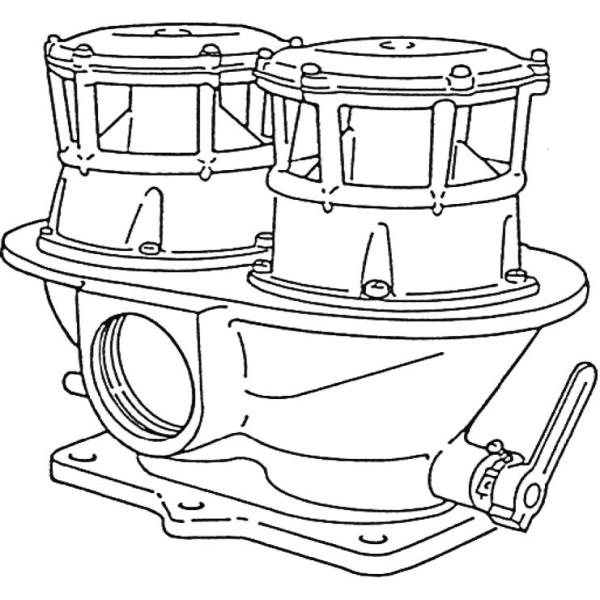

IMPCO Large Engine Mixer Model 600D Is A Concentric Flow Type Air Valve Mixer LPG, Natural, Landfill And Digester Gases
Model 600D
DESCRIPTION
The Model 600D mixer is a concentric flow type air valve carburetor. This mixer is suitable for LPG Vapor, Natural Gas, Landfill and Digester gases for applications requiring up to 1600 CFM (7551 L/s). A precision gas metering valve is attached to the air valve. The air valve and gas valve motion is linear in relation to the volumetric flow. The air/fuel ratio is controlled by the adjustable power valve, jet, shape of the gas metering valve and the pressure from the gas regulator. Gas valves are shaped to provide A/F versus flow characteristics defined by the fuel composition.
SPECIFICATIONS
Fuel Type
LPG Vapor ............................................. 90% + Propane
Natural Gas ........................................... 85% + Methane
Digester Gas .......................................... 56-72% Methane
Landfill Gas............................................ 45-56% Methane
Inlet Pressure .............................................. +5.0” w.c. (1.24 kPa) over Air Inlet (Idle Setting)
Operating Temperature Range .................... -40°F to +250°F (-40°C to +121°C)
Mounting Position ........................................ Vertical
HP/kW Rating .............................................. 1,000 hp (745.7 kW) @ 1600 CFM (755 L/s) and 2.0” Hg manifold depression
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
1000hp 600D IMPCO Large Engine Mixers Fuel System Parts1000hp 600D IMPCO Large Engine Mixers Fuel System Parts1000hp 600D IMPCO Large Engine Mixers Fuel System Parts
