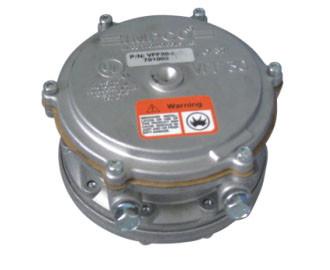

242.4kW Inlet 21.5Bar VFF30 IMPCO Mechanical Lockoff
242.4kW Inlet 21.5Bar VFF30 IMPCO Mechanical Lockoff
Specifications
Brand Name :
IMPCO
Model Number :
Model VFF30-2/VFF30-3
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Product Name :
Shut-off Filter
Part Number :
VFF30-2/VFF30-3
Brand :
IMPCO
Fuel Type :
Vapor or Low Pressure Natural Gas
Mounting Position :
Vertical
Engine Power :
242.4kW
Inlet Pressure :
21.5Bar
Vacuum Activation Pressure :
0.12 kPa
Description
IMPCO Model VFF30/VFF30-2/VFF30 , A Combination Fuel Lockoff And Filter , LPG Liquid/Vapor Natural Gas Vapor
DESCRIPTION
The Model VFF30 is a combination fuel lockoff and filter, engineered for use with LPG Liquid/Vapor or Natural Gas Vapor. It is available with Hydrin, Silicone and Fluorosilicone diaphragms. A pressure of 0.12 kPa is required to open the lockoff. The VFF30 is suitable for engines up to 242.4 kW at a maximum working pressure of 21.5 Bar. The extra-large capacity filter element is fully serviceable.
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor or Low Pressure Natural Gas
Inlet Pressure (Maximum) 21.5 Bar
Flow Rate 12.6 L/s
Operating Temperature Range -40°C to +121°C
Vacuum Activation
Minimum Opening 0.12kPa
Fully Opened 2.86 kPa
Min. Operating Opening 0.50 kPa

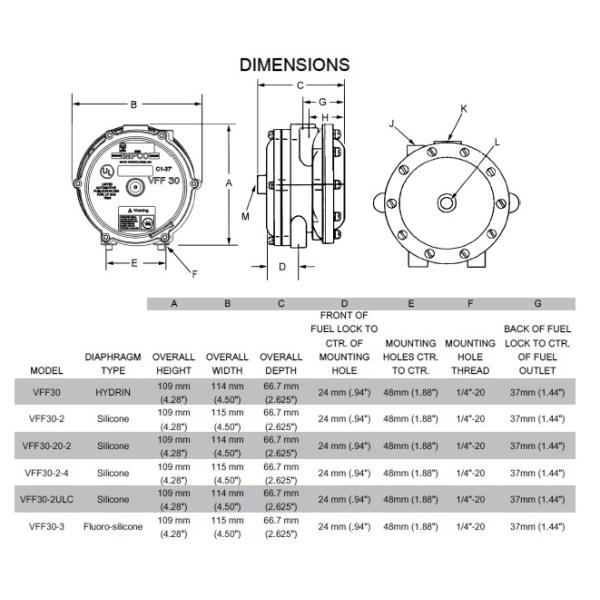

Mounting Position as shown above
Certification UL (AU1502), Inquire for specific ECE approval

242.4kW Inlet 21.5Bar VFF30 IMPCO Mechanical Lockoff

242.4kW Inlet 21.5Bar VFF30 IMPCO Mechanical Lockoff

242.4kW Inlet 21.5Bar VFF30 IMPCO Mechanical Lockoff
