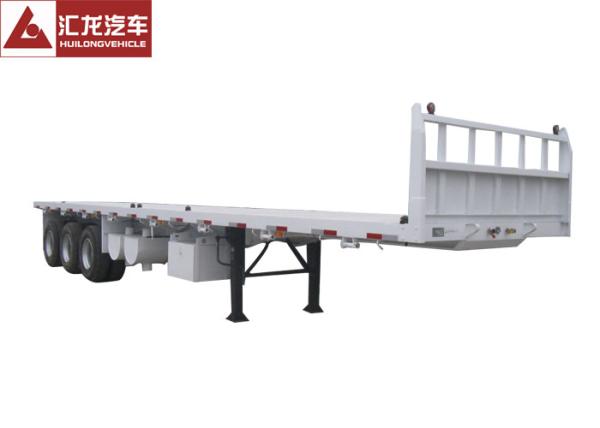

White Color Cargo Container Trailer , Flatbed Sea Container Trailer 3 Axle Steady
White Color Cargo Container Trailer , Flatbed Sea Container Trailer 3 Axle Steady
White Color Cargo Container Trailer , Flatbed Sea Container Trailer 3 Axle Steady
White Color Cargo Container Trailer , Flatbed Sea Container Trailer 3 Axle Steady
Specifications
Brand Name :
Huilong
Model Number :
Cargo Container Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Color :
White
Payload :
45000KGS
Axle Detail :
3
Suspension Tech :
Mechanical / Air
Container Range :
1x20ft, 2x20ft; 1x40ft
Multi-protection :
1 coat of anti-corrosive prime; 2 coats of final paint
Description

White Color Cargo Container Trailer , Flatbed Sea Container Trailer 3 Axle Steady​

Description:

• Wide Application

The flatbed container trailer can transport a variety of large equipments, covering mechanical equipments, power equipments, road construction equipments, large tanks and containers.

• Solid Design

The frame and carriage are welded by high-quality steel which can decrease the light weight. The carrying capacity is strong with the solid design and the permanent set is disabled. The step-shaped frame and I beam structure improve the stiffness.

Advantages:

• Slick Technology

Key components are processed by large devices. Axles and leaf springs are exactly installed by assembly machine.

• Steady Transportation

The main surface of the platform is low enough to ensure the steadiness of the transportation.

• Pneumatic Tyre with Large Size

Pneumatic tyres are produced with security technology. They are punctured resistant, anti-skidding and anti-friction. The rolling resistance is low.

• Aluminium Alloy Wheel Hub

The wheel hub made of aluminium alloy is light and can save fuel. Besides, the heat radiation is also very good.

• Strong Applicability

The container trailer can run on complex mountain road, highway, and soil road.

Specifications:

DIMENSIONS
Tare Weight 7700KGS Payload 45000KGS
Overall Length 12400mm Overall Width 2480mm
SPECIFICATION
Chassis

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345;

Welded by automatic Submerged-Arc processes;

Top Flange 14mm, width 140mm;

Middle Flange 6mm;

Bottom Flange 16mm, width 140mm.
Axle 3 axles
Brand name: BPW, L1 or FUWA
Suspension Mechanical suspension or air suspension
Spring Leaf spring or air bag
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear

JOST brand Two-speed;

manual operating;

heavy duty landing gear
Wheel Rim 8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
Twist Lock 12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
Tyre 11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
Spare tyre One set of spare tire including a carrier
Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

40L air tanks
Painting

Complete Chassis sand blasting to clean rust;

1 coat of anticorrosive prime;

2 coats of final paint
Accessories One standard tool box
