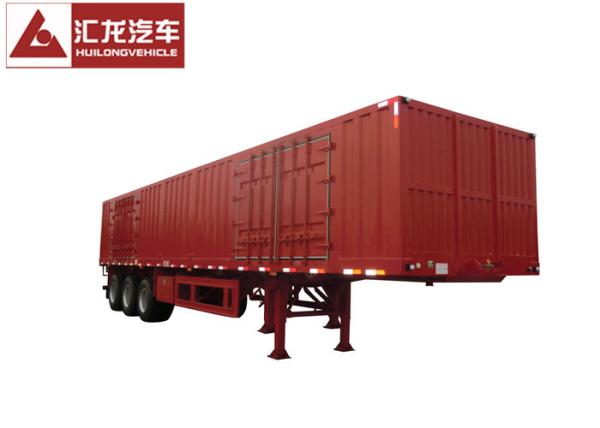

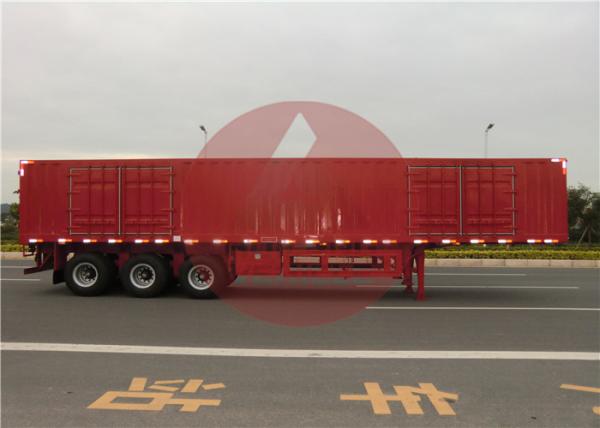

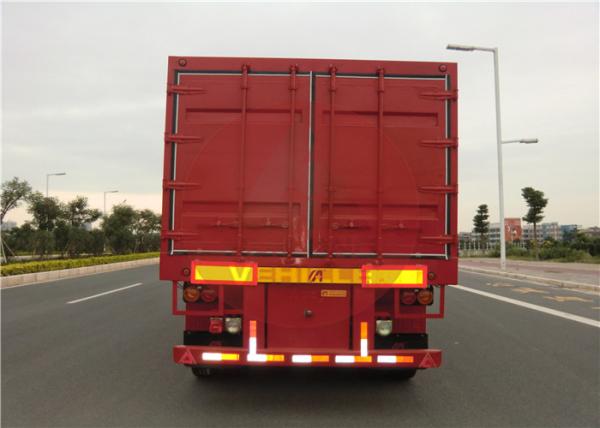

Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
Specifications
Brand Name :
Huilong
Model Number :
Cargo Container Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Tare Weight :
8900KGS
Payload :
45000KGS
Axle :
3 axles
Axle Producer :
BPW, L1 or FUWA
Curtain Material :
PVC, fitted with buckles
Slide Chunnel :
Aluminum alloy double slide Chunnel
Description

​​Multi-Pull Cargo Container Trailer Container Semi Trailer Light Self-Weight

Description:

The cargo box semi trailer is suitable for the transportation of household appliances, textile goods, coal, sand and other building materials and goods.

Advantages:

• strong bearing capacity

The cargo box semi trailer has strong bearing capacity, high safety factor, reasonable design, ruggedness and durability, and advanced manufacturing technology.

• Van structure

The box body is made of high strength cold-bonded corrugated steel plate, which has large loading space without skeleton structure, reasonable distribution in the box body and X-shaped stretching brace. It has the characteristics of multi-pull, heavy load and light self-weight.

• Different options

The side wall height and side or back door numbers and opening ways have several options for your better usage.

Specifications:

DIMENSIONS
Tare Weight 8900KGS Payload 45000KGS
Overall Length 13000mm Overall Width 3950mm
Technical Data
Chassis

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345B,

welded by automatic Submerged-Arc processes.

Top Flange 14mm,width 140mm;

Middle Flange 6mm;

Bottom Flange 16mm,width 140mm.
Axle 3 axles

Brand Name: BPW, L1, or FUWA-Optional upon requirement
Suspension

Mechanical suspension or Air Suspension upon requirement
Spring

8-piece leaf spring
King Pin

2” Bolt-in King Pin
Landing Gear

Two-speed, manual operating, heavy duty landing gear
Wheel Rim

8.5-20, 8.25-22.5, 9.0-22.5-Optional upon tire requirement
Tyre

11.00-20, 12.00-20, 11.00R20, 12.00R20, 11R22.5, 12R22.5-Optional
Spare Tyre One set of spare tire including a carrier
Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

45L air tanks
Painting

Complete Chassis sand blasting to clean rust,

1 coat of anticorrosive prime,

2 coats of final paint
Accessories One standard tool box
Gallery

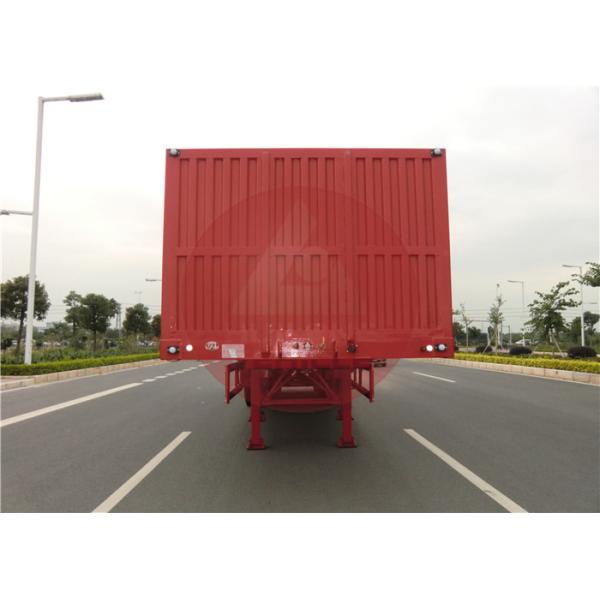

Multi - Pull Cargo Container Movers Container Semi Trailer Light Self - Weight
