Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable
Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable
Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable
Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable
Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable
Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable
Specifications
MOQ :
1000
Application :
Industrial, Construction, Urban power grids, substations, underground cable tunnels
Working Temperature :
0-90
Model Number :
YJV
Size :
4-300mm2
Material :
PVC
Brand Name :
F.T
Price :
usd 3.5 ～ 83.3 / meter
Insulation Material :
XLPE
Rated Current :
16 A
Service :
ODM OEM Accepted
Jacket :
PVC
Delivery :
10-25days After Received The Prepayment
Supply Ability :
800–1500 kilometers per month
Delivery Time :
30days
Type :
Other, Low Voltage
MOQ :
1000m
Place of Origin :
Shaanxi, China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Sample :
Free
Rated Voltage :
0.6/1KV, 0.6/1KV
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Conductor Material :
Copper
Description

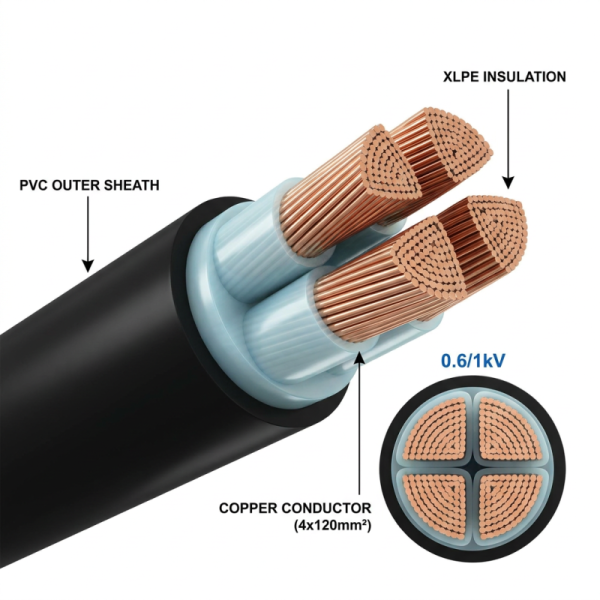

XLPE Insulated Cable Low Voltage YJV 4X120mm² Copper Power Cable

Technical Specifications

Parameter Technical Details
Model YJV (CU/XLPE/PVC)
Number of Cores 4 Cores (L1, L2, L3 + Neutral)
Nominal Cross‑section 120 mm² per core
Rated Voltage 0.6/1 kV (Um: 1.2 kV)
Conductor Type Class 2 Compacted Stranded Copper
Current Carrying Capacity Approx. 310A (In Air, 30°C)
Max. Conductor Temp. 90°C (Normal) / 250°C (Short Circuit)
Outer Diameter Approx. 42‑45 mm

Key Performance Advantages

  • Optimized Power Distribution: The 120mm² cross-section is the ideal choice for main feeder lines in industrial plants and high-rise commercial buildings.
  • Thermal Stability: XLPE insulation allows for a higher continuous operating temperature (90°C) compared to PVC (70°C), resulting in a higher current rating and longer life.
  • Chemical & Moisture Resistance: The high-grade PVC outer sheath provides excellent protection against humidity, oil, and common industrial chemicals.
  • Low Power Loss: Precision-stranded copper cores minimize skin effect and resistance, ensuring energy efficiency across your power network.

Low Voltage XLPE Insulated Cable YJV 4X120mm2 Copper Power Cable

Product Attributes

99.99% Copper Purity
Oxygen-free copper for maximum conductivity.
XLPE Insulation
Superior heat resistance up to 90°C.
IEC 60502-1
Fully compliant with international LV standards.
Industrial Durability
Robust PVC jacket for harsh environments
