0.6/1KV YJV32 XLPE Power Cable Steel Armoured Pure Copper Conductor Cable
0.6/1KV YJV32 XLPE Power Cable Steel Armoured Pure Copper Conductor Cable
0.6/1KV YJV32 XLPE Power Cable Steel Armoured Pure Copper Conductor Cable
0.6/1KV YJV32 XLPE Power Cable Steel Armoured Pure Copper Conductor Cable
0.6/1KV YJV32 XLPE Power Cable Steel Armoured Pure Copper Conductor Cable
0.6/1KV YJV32 XLPE Power Cable Steel Armoured Pure Copper Conductor Cable
Specifications
Insulation Material :
PVC
Place of Origin :
Shaanxi, China
Model Number :
YJV32
Type :
Low Voltage
Service :
ODM OEM Accepted
MOQ :
1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Jacket :
XLPE
Delivery :
10-25days After Received The Prepayment
No. of Cores :
1~6 Core
Hot Sale Countries :
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Afr
Brand Name :
F.T
Sample :
Free
Application :
Construction
Material :
copper
Certification :
CE，VDE,SO 9001
Size :
4 core
Supply Ability :
800–1500 kilometers per month
Delivery Time :
30 days
MOQ :
1000m
Price :
usd 2～ 32 / meter
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Rated Voltage :
0.6/1KV
Conductor Material :
Copper
Description

XLPE Power Cable 0.6/1KV YJV32 Steel Armoured Pure Copper Conductor Cable

Model

YJV32 (steel tape armoured)

Voltage rating

0.6/1kV (U₀/U)

Conductor

Pure annealed copper, class 2 stranded – no copper‑clad or recycled scrap

Core configurations

2 core, 3 core, 4 core, 5 core, or 3+1, 4+1, 3+2 (tell us your need)

Conductor size

1.5mm² up to 400mm² – same price formula per kg of copper

Insulation

XLPE (cross‑linked polyethylene) – 90℃ continuous, 250℃ short‑circuit

Armour

Double layer galvanized steel tape (0.2–0.5mm thick depending on size)

Outer sheath

Black PVC, flame retardant, UV stabilised

Standard

GB/T 12706.1‑2020 (also passes IEC 60502‑1 tests)

Certification

Factory test report included; CE or TUV available at extra cost

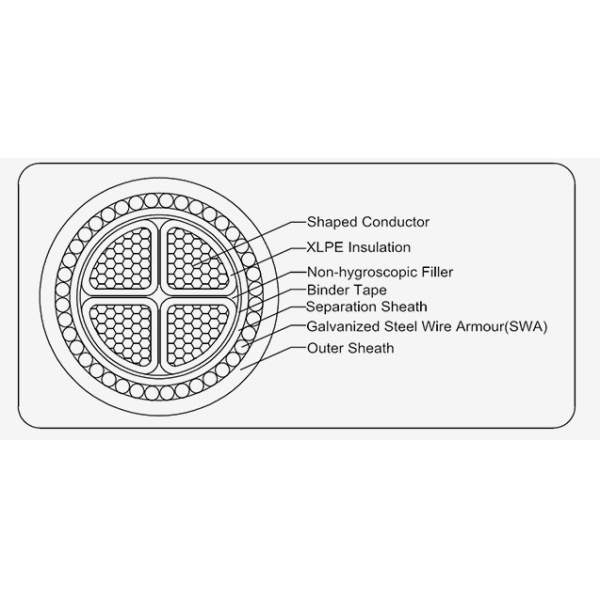

  • Copper stranding – We use 99.95% pure copper wire rods from Jiangxi Copper. For a 4×70mm² cable, the 70mm² conductor has 19 strands of 2.14mm wire. DC resistance test is done on every production lot – we keep the values 3% below the GB max limit as a safety buffer.

  • XLPE extrusion – The insulation goes through a continuous vulcanisation tube (CV line). We take a hot‑set sample every 2 hours: 200℃, 20N/cm², elongation must stay under 80%. If it hits 85%, the whole batch gets re‑run.

  • Assembly & filling – For round cores (3 or 4 equal), we twist the cores with PP filler ropes. For 3+1 or 4+1 shapes, we use a central filler to keep the neutral core in the gap. A polyester binder tape wraps everything to hold shape before the inner sheath.

  • Inner PVC sheath – 1.0–1.5mm thick (depends on the overall diameter). This layer is soft – its job is to stop the steel tape from digging into the XLPE when the cable is bent.

  • Steel tape armouring – Two layers of 0.3mm to 0.5mm galvanised steel strip (thicker for larger diameters). Applied helically with a gap – we measure the gap with a feeler gauge: must not exceed 45% of the tape width. Overlap between layers is about 25%. We run a continuity test on the armour: less than 0.5Ω per 100m.

  • Outer PVC sheath – Black, matte finish. We print the full specification every metre: “YJV32 0.6/1kV 4×95 + 1×50mm²” or whatever your order is.
