YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
Specifications
Insulation Material :
XLPE
Rated Voltage :
0.6/1KV
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1000m
MOQ :
1000
Supply Ability :
800–1500 kilometers per month
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Type :
Low Voltage
Service :
ODM OEM Accepted
Application :
Industrial, Construction, Urban power grids, substations, underground cable tunnels
Delivery :
10-25days After Received The Prepayment
Delivery Time :
30 days
Place of Origin :
Shaanxi, China
Size :
4-300mm2
Price :
usd 2～ 32 / meter
Sample :
Free
Conductor Material :
Copper
Certification :
CE，VDE,SO 9001
Model Number :
YJV32
Brand Name :
F.T
Description

XLPE Power Cable YJV32 0.6/1kV – 4×185+1×95 mm² & 4×240+1×120 mm² – Pure Copper, Steel Tape Armoured

Specifications

Parameter 4×185+1×95 mm² 4×240+1×120 mm²
Voltage rating 0.6/1kV 0.6/1kV
Conductor Pure annealed copper, class 2 stranded (GB/T 3956) Same
Insulation XLPE (thickness: 1.6mm for 185/240, 1.2mm for neutral) XLPE (1.6mm for 240, 1.2mm for 120)
Inner sheath PVC, nominal 1.5mm PVC, nominal 1.6mm
Armour Double layer galvanized steel tape (0.5mm thick per layer) Double layer galvanized steel tape (0.5mm)
Outer sheath Black PVC, flame retardant, ~2.2mm thick Black PVC, flame retardant, ~2.3mm thick
Approx. overall diameter 55–58 mm 62–65 mm
Approx. copper weight 7,050 kg/km 9,150 kg/km
Approx. total weight 8,200 kg/km 10,500 kg/km
Min. bending radius 15 × OD 15 × OD
Standard GB/T 12706.1 / IEC 60502-1 Same

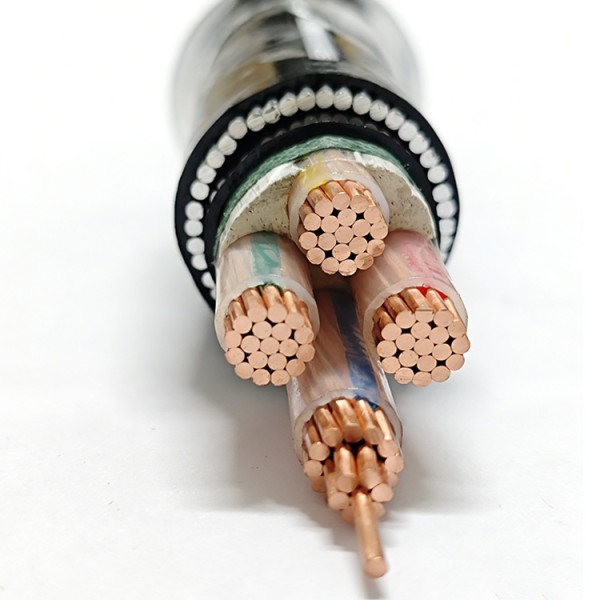

Construction

YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV

  • Conductor: 185 mm² main cores (stranded from 0.5mm copper wires, 37 strands each) + 95 mm² neutral. For the 240/120 version, the 240 mm² uses 61 strands, neutral 120 mm² uses 37 strands.

  • XLPE insulation: extruded and chemically cross-linked. We check hot set elongation at 200℃ – must stay under 80%.

  • Filler: PP rope + a polyester tape wrap to keep the 3+1 shape round.

  • Inner PVC sheath: soft enough to cushion the steel tape but not too soft to stick.

  • Steel tape armouring: two 0.5mm thick galvanized steel strips, applied with 25% overlap. We run a continuous earth continuity test on the armour – typical resistance <0.5Ω per 100m.

  • Outer PVC sheath: black, UV stabilised. Printed: “YJV32 0.6/1kV 4×185+1×95” or “4×240+1×120” every metre.

YJV32 XLPE Power Cable 4x185+1x95mm2 4x240+1x120mm2 Pure Copper 0.6KV 1KV
