Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable
Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable
Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable
Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable
Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable
Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable
Specifications
Supply Ability :
800–1500 kilometers per month
Application :
Industrial, Construction, Urban power grids, substations, underground cable tunnels
MOQ :
1000m
Place of Origin :
Shaanxi, China
Delivery Time :
30days
Insulation Material :
XLPE
Price :
usd 1.5 ～ 2.8/ meter
Type :
Low Voltage
Sample :
Free
Rated Current :
16 A
Jacket :
PVC
Size :
4-300mm2
Certification :
CE，VDE,SO 9001
Service :
ODM OEM Accepted
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Model Number :
YJV32
Brand Name :
F.T
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
0.6/1KV
Conductor Material :
Copper
MOQ :
1000
Description

Copper Core Power Cable 0.6/1KV YJV32 3X6mm XLPE Insulated PVC Sheathed Electric Cable

YJV32 3x6mm² series is specifically engineered for environments requiring superior longitudinal tensile strength. By integrating a full circle of **Galvanized Steel Wire Armor (SWA)**, this cable eliminates the risk of conductor stretching in high-rise vertical shafts and deep-slope mining applications.

Technical Specifications

Item Details
Model Designation YJV32 (CU/XLPE/PVC/SWA/PVC)
Voltage Rating 0.6/1KV (600/1000V)
Standard Compliance IEC 60502-1, BS 6622, GB/T 12706.1
Conductor Class 2 Compacted Stranded Copper (99.99% Purity)
Core Construction 3-Core x 6mm²
Armor Construction Round Galvanized Steel Wire Armored (SWA)
Insulation Cross-linked Polyethylene (XLPE)
Operating Temp. 90°C (Normal) / 250°C (Short Circuit)

Why YJV32 3x6mm² is the Engineering Standard

Vertical Installation Integrity

Unlike steel tape armor (YJV22), our SWA structure provides the mechanical strength to support the cable's own weight in vertical shafts, preventing internal core elongation.

360° Mechanical Shielding

Interlocking galvanized steel wires form a robust barrier against crushing forces, rodent attacks, and sharp-object impacts in industrial power tunnels.

Thermal Stability (XLPE)

Our premium XLPE insulation ensures reliable operation at higher continuous temperatures, permitting a higher current density for 6mm² secondary feeders.

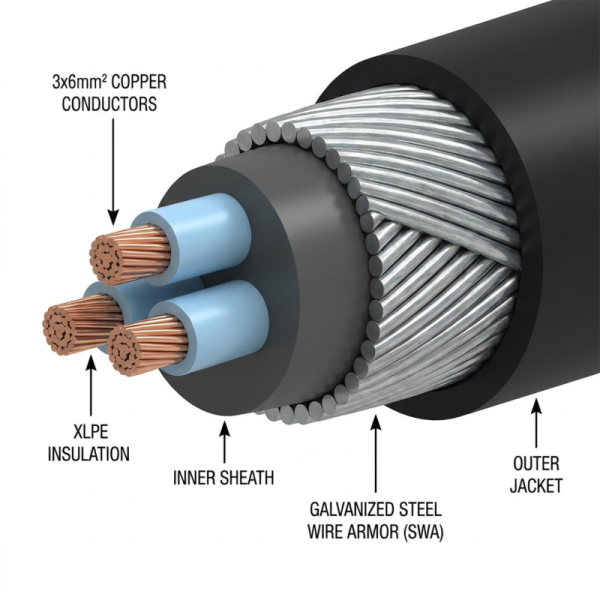

Structural Anatomy

Copper Core XLPE Power Cable 0.6 1KV YJV32 3X6mm PVC Sheathed Electric Cable

Engineering Selection Data

Outer Diameter (Approx.)18.5 - 20.0 mm
Min. Bending Radius15 × O.D. (approx. 300 mm)
Approx. Net Weight≈ 680 kg/km
Max. Pulling Tension(Contact Support for SWA Load Data)

Pricing Note: Get Real-time Quote Based on LME Copper Index. As a source manufacturer, our rates fluctuate with the raw material market to ensure transparency.
