Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
Specifications
Model Number :
high temperature cable
Conductor :
Stranded Copper
Price :
usd 0.25 ～ 1.5 / meter
Application :
Industrial heating, furnaces, fire-resistant circuits
Supply Ability :
800–1500 kilometers per month
Certification :
CE，VDE,SO 9001
Insulation :
Mica Tape
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1000
Delivery Time :
7-15 Working Days
Temperature Rating :
High-temperature resistant
Place of Origin :
china
Rated Voltage :
300V / 600V
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Brand Name :
F.T
Product Name :
High-Temperature Mica Cable
Description

High-Temperature Mica Cable for Industrial Heating & Furnace Applications

High-temperature mica cable is a fire-resistant electrical cable designed for applications where continuous operation at elevated temperatures is required. The cable uses mica tape insulation combined with high-temperature fiberglass braiding and stranded copper conductors to maintain circuit integrity during heat exposure.

This type of cable is widely used in industrial furnaces, heating equipment, steel plants, power generation systems, fire-resistant circuits, and other environments where conventional PVC-insulated cables cannot operate reliably.

Product Features

Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications

  • Excellent heat resistance: Suitable for continuous operation in high-temperature environments.

  • Fire-resistant performance: Mica insulation helps maintain electrical continuity during fire exposure.

  • Copper conductor: Provides stable electrical conductivity and mechanical flexibility.

  • Fiberglass braided insulation: Offers additional thermal protection and mechanical strength.

  • Low smoke characteristics: Produces less smoke than many standard polymer-insulated cables.

  • Good durability: Resistant to thermal aging, abrasion, and vibration in industrial environments.

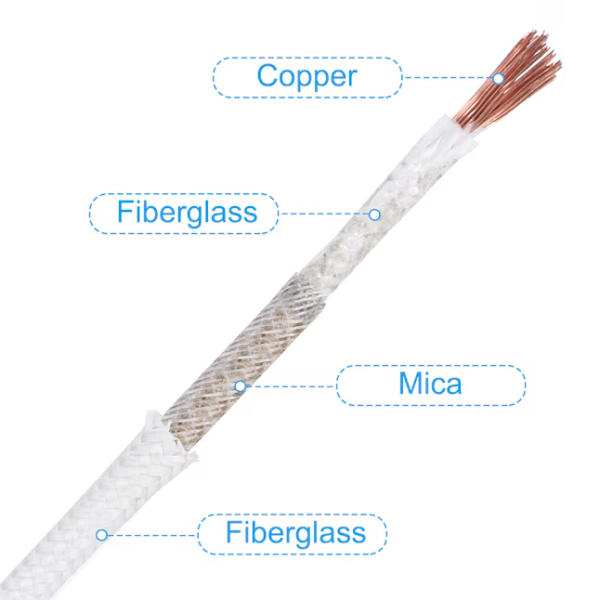

    Product Structure

    Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications

    Layer Material
    Conductor Stranded copper
    Primary insulation Mica tape
    Reinforcement Fiberglass braid
    Outer layer (optional) Silicone, fiberglass, or other heat-resistant materials

    Technical Parameters

    Item Specification
    Rated Voltage 300V / 600V
    Conductor Material Stranded Copper
    Insulation Material Mica Tape
    Braiding Material Fiberglass
    Operating Temperature Up to 450℃ continuous (depending on construction)
    Short-Term Temperature Resistance Higher temperature capability during fire exposure
    Flame Resistance Available according to relevant fire-resistant standards

    Applications

    Fireproof High Temperature Mica Insulated Wire For Industrial Heating Furnace Applications
