High-Temperature Mica Cable – Fire Resistant Mica Insulated Copper Wire

High-Temperature Mica Cable is designed for electrical systems that must continue operating under extreme heat conditions. The cable uses mica tape insulation combined with copper conductors and a heat-resistant outer layer, providing reliable electrical performance at elevated temperatures. It is widely used in industrial furnaces, heating equipment, metallurgy, glass manufacturing, power plants, and other high-temperature environments where conventional cables may fail.

This type of cable is valued for its excellent fire resistance, thermal stability, and insulation performance. Even when exposed to direct flame for a certain period, the mica insulation helps maintain circuit integrity, making it suitable for emergency power, fire protection systems, and critical industrial applications.

product features

• Excellent heat resistance: Suitable for continuous operation in high-temperature environments.

• Fire-resistant performance: Mica insulation helps maintain circuit integrity during fire exposure.

• Stable electrical properties: Copper conductors provide reliable conductivity and low resistance.

• Good insulation strength: Designed to withstand demanding industrial conditions.

• Mechanical durability: Resistant to vibration, abrasion, and thermal aging.

• Wide application range: Suitable for heating systems, furnaces, ovens, power equipment, and fire protection circuits.

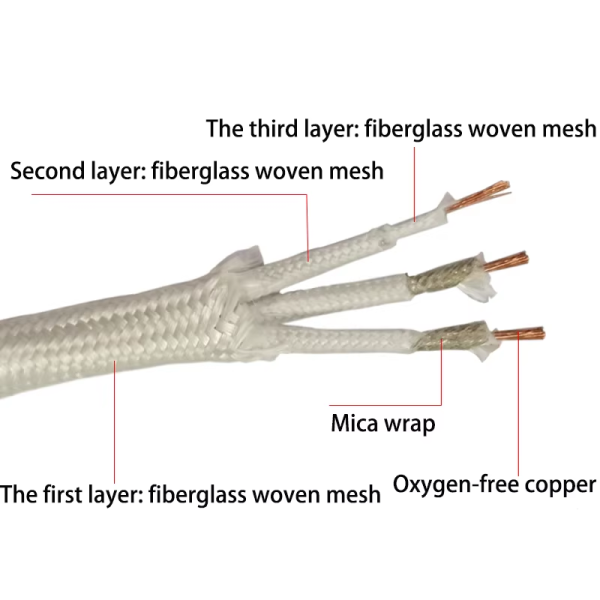

  Product Structure



  Layer	Material
  Conductor	Stranded copper conductor
  Primary Insulation	Mica tape insulation
  Reinforcement Layer	Fiberglass or braided layer (optional)
  Outer Sheath	Heat-resistant fiberglass braid or high-temperature jacket

  Technical Parameters

  Item	Specification
  Rated Voltage	300V / 500V / 600V (customizable)
  Conductor Material	Copper
  Insulation Material	Mica Tape
  Outer Covering	Fiberglass Braid / High-Temperature Sheath
  Operating Temperature	-60°C to +450°C (depending on model)
  Fire Resistance	Maintains insulation performance under flame exposure
  Conductor Size	0.5 mm² – 240 mm² (customizable)
  Standards	IEC, GB, or customized specifications

  Applications



  High-Temperature Mica Cable is commonly used in:

  • Industrial furnaces and kilns

  • Electric heating equipment

  • Metallurgical plants

  • Glass manufacturing lines

  • Power generation facilities

  • Fire alarm and emergency circuits

  • Petrochemical equipment

  • High-temperature control systems

  • Steel and cement production lines

  These environments often involve continuous exposure to heat, flame, or thermal cycling, where standard PVC or XLPE cables may not provide sufficient performance.

  FAQ

  1.What is the maximum temperature this cable can withstand?

  The operating temperature depends on the cable design. Common models can work continuously at 250°C to 450°C, while some special constructions can withstand even higher temperatures for short periods.

  2.Can this cable be used in fire protection systems?

  Yes. Mica insulated cables are widely used in fire alarm systems, emergency power circuits, and other applications that require circuit integrity during a fire.

  3.Is the cable suitable for outdoor installation?

  Standard fiberglass braided types are mainly used indoors or in protected environments. For outdoor installation, a weather-resistant outer sheath can be added based on project requirements.

  4.Can conductor size and voltage rating be customized?

  Yes. The cable can be customized according to conductor cross-section, number of cores, voltage rating, temperature class, and application requirements.

  Contact us today for bulk pricing, custom lengths, and fast shipping.
