800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use
800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use
800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use
800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use
800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use
800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use
Specifications
Model Number :
S(SZ)13; S(SZ)18; S(SZ)20; S(SZ)22;
Phase :
Three
Supply Ability :
800–1500 Piece /per month
Certification :
CE，VDE,SO 9001
Type :
Dry-type
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Operating Environment :
Indoor
Price :
US $1625 - 3500/ Piece
Voltage Regulation Method :
On-load tap changer, Off-load tap changer
MOQ :
1
Delivery Time :
30 days
Capacity Range :
800-25000KVA
Place of Origin :
china
Application :
Power Transformer
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Brand Name :
F.T
Frequency :
50 Hz, 60 Hz
Description

Best-selling 35KV Level Dry-type Power Transformer Airport Industrial Use

The Three Phase 35KV Level Dry-type Power Transformer is an advanced epoxy resin cast dry-type distribution transformer engineered specifically for the demanding power requirements of airports, industrial facilities, and critical infrastructure. Utilizing state-of-the-art vacuum casting technology with high-grade epoxy resin, this transformer delivers exceptional electrical performance, operational reliability, and environmental safety.

Designed for three-phase, 50/60Hz power systems, this transformer is available in capacities ranging from 30 kVA up to 25,000 kVA, with primary voltages up to 35kV. It serves as the ideal solution for stepping down 35kV grid power to lower distribution voltages (0.4kV, 10kV, or custom voltages) for airport terminals, industrial plants, commercial buildings, and infrastructure projects.

The dry-type design eliminates the need for oil or other hazardous liquids, making it a fire-safe and environmentally friendly solution—particularly critical for airports and other public facilities where fire safety regulations prohibit oil-filled equipment. The transformer has been successfully deployed in numerous landmark projects including the world's highest-altitude civil airport—Daocheng Yading Airport, Beijing Daxing International Airport, Sanya Phoenix International Airport, and the Hong Kong-Zhuhai-Macao Bridge

Item Specification
Product Name Three-Phase Dry-Type Power Transformer
Voltage Class 35kV
Rated Capacity 50kVA–3150kVA (Customizable)
Rated Frequency 50Hz / 60Hz
Phase Three Phase
Insulation System Cast Resin Epoxy
Cooling Method AN / AF
Vector Group Dyn11, Yyn0, YNd11, Custom
Tap Changer Off-Circuit / Optional On-Load
Protection Degree IP20 / IP23 / IP31 / IP54
Temperature Rise According to IEC Standards
Insulation Class F / H
Installation Indoor
Service Life 30 Years (Under Normal Operating Conditions)
Standards IEC 60076, IEC 60076-11, GB/T 10228
OEM / ODM Available

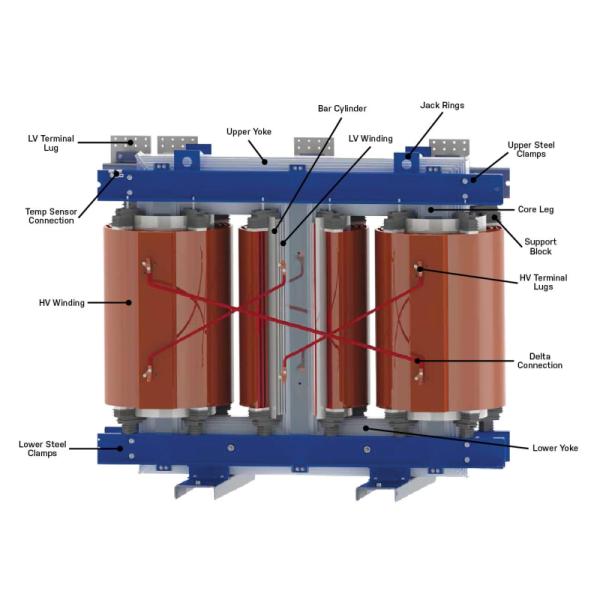

Product Structure

800-25000KVA 35KV Level Dry Type Power Transformer Airport Industrial Use

Product Features
