Specifications
Model Number :
s(sz)13;s(sz)18;;s(sz)20;s(sz)22
Phase :
Three
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Operating Environment :
Outdoor
Price :
US $4399 - 7199/ Piece
Voltage Regulation Method :
On-load tap changer, Off-load tap changer
Supply Ability :
800–1500 Piece /per month
Certification :
CE，VDE,SO 9001
Type :
Oil-Immersed Transformer
MOQ :
1
Delivery Time :
30 days
Capacity Range :
30-3150KVA
Place of Origin :
china
Application :
Power Transformer
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Brand Name :
F.T
Frequency :
50 Hz, 60 Hz
Description

Wholesale Low Loss 10KV Oil-immersed Distribution Transformer for Grid System

Product Overview

The 10kV Oil-Immersed Distribution Transformer is designed for reliable medium-voltage power distribution in utility grids, industrial facilities, commercial buildings, and renewable energy projects. Featuring a sealed oil-filled cooling system, high-quality silicon steel core, and oxygen-free copper or aluminum windings, it ensures stable voltage regulation, low operating losses, and long service life.

Built in accordance with international power distribution standards, this transformer is suitable for both indoor and outdoor substations. Its optimized magnetic circuit and advanced insulation structure contribute to improved energy efficiency, reduced operating costs, and dependable long-term performance.

Our factory provides OEM and ODM manufacturing services, allowing customers to customize voltage ratings, capacity, cooling methods, winding materials, tap changers, and accessories according to project requirements.

Parameter Specification
Product Name Oil-Immersed Distribution Transformer
Voltage Class 10kV
Rated Capacity 30kVA–2500kVA (Customizable)
Phase Three Phase
Rated Frequency 50Hz / 60Hz
Cooling Method ONAN (Oil Natural Air Natural)
Winding Material Copper / Aluminum
Insulation Medium Mineral Insulating Oil
Vector Group Dyn11, Yyn0, Custom
Tap Changer Off-Circuit Tap Changer (Optional OLTC)
Tank Type Hermetically Sealed / Conservator Type
Installation Outdoor / Indoor
Protection Class IP00 (Installed in Enclosure/Substation)
Standards IEC 60076, ANSI/IEEE, GB/T 6451 (Optional)
OEM / ODM Supported

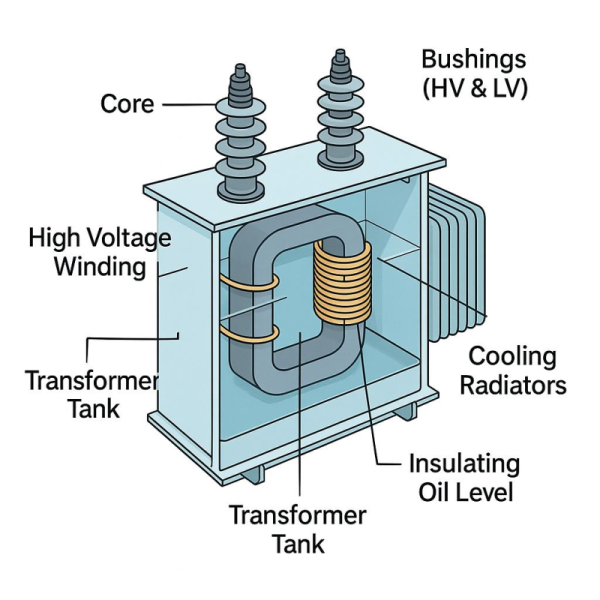

Product Structure

Low Loss 10KV Oil Immersed Distribution Transformer For Grid System

Main Components

Component Function
High Voltage Bushings Connect the medium-voltage network
Low Voltage Bushings Deliver power to the low-voltage distribution system
Silicon Steel Core Reduces magnetic losses and improves efficiency
HV & LV Windings Perform voltage transformation
Transformer Oil Provides insulation and heat dissipation
Oil Tank Protects internal components and stores insulating oil
Radiators / Cooling Fins Improve heat transfer efficiency
Off-Circuit Tap Changer Adjusts output voltage
Pressure Relief Device Enhances operational safety
Oil Level Indicator Monitors insulating oil level
Temperature Indicator Tracks operating temperature
Lifting Lugs & Base Channel Simplify transportation and installation

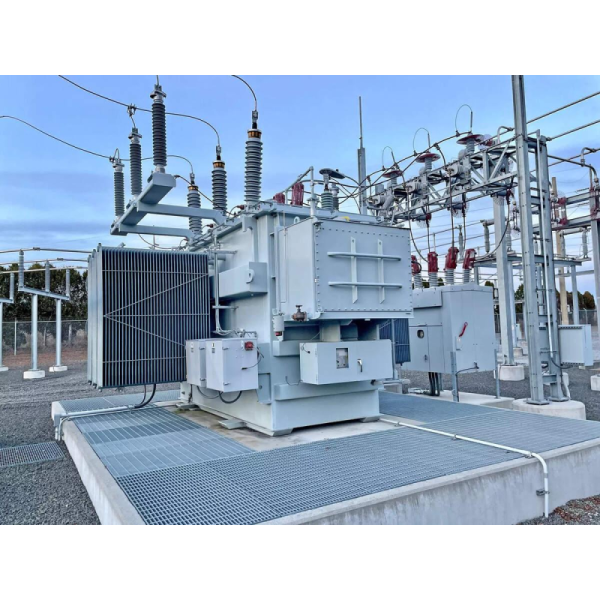

Typical Applications

Low Loss 10KV Oil Immersed Distribution Transformer For Grid System

The 10kV oil-immersed distribution transformer is widely used across medium-voltage distribution networks.

Utility Grid Systems

  • Urban distribution substations
  • Rural electrification
  • Utility feeder networks
  • Public power infrastructure

Industrial Facilities

  • Manufacturing plants
  • Mining operations
  • Steel mills
  • Cement factories
  • Petrochemical facilities

Commercial Buildings

  • Shopping centers
  • Office complexes
  • Hotels
  • Logistics parks
  • Business campuses

Renewable Energy Projects

  • Solar photovoltaic power plants
  • Wind farms
  • Battery energy storage stations
  • Hybrid power systems

Infrastructure Construction

  • Airports
  • Railway stations
  • Ports
  • Water treatment plants
  • Municipal engineering projects

FAQ

Q1. What transformer capacities are available?

We supply standard capacities from 30kVA to 2500kVA, with higher capacities and customized ratings available for specific utility and industrial projects.

Q2. Can I choose copper or aluminum windings?

Yes. Both oxygen-free copper and high-quality aluminum winding options are available. The selection depends on project specifications, budget, efficiency targets, and local standards.

Q3. What cooling method does this transformer use?

The standard configuration uses ONAN (Oil Natural Air Natural) cooling. Other cooling arrangements can be provided for higher-capacity or specialized applications.

Q4. Is the transformer suitable for outdoor installation?

Yes. The sealed oil tank and weather-resistant construction make it suitable for outdoor substations, utility distribution networks, industrial sites, and renewable energy facilities when installed according to applicable standards.

Q5. Which international standards can the transformer comply with?

Our transformers can be manufactured in accordance with IEC 60076, ANSI/IEEE, GB/T 6451, or other regional standards based on customer requirements and destination markets.
