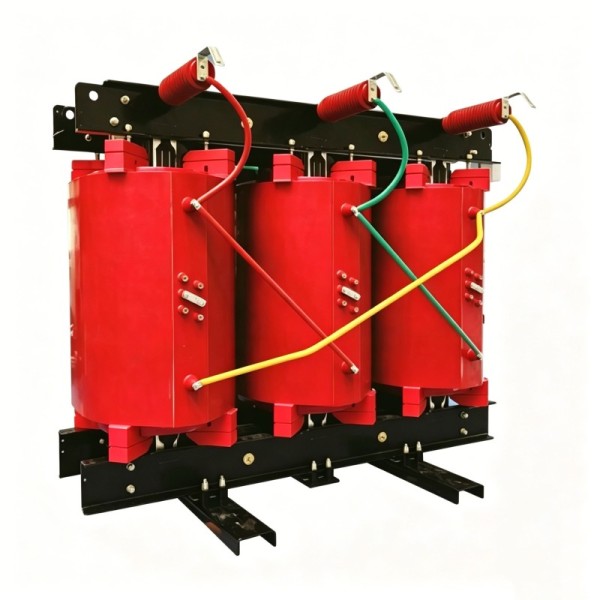

Three Phase Customizable 35KV Level Dry Type Distribution Transformer
Three Phase Customizable 35KV Level Dry Type Distribution Transformer
Specifications
Model Number :
S(SZ)13; S(SZ)18; S(SZ)20; S(SZ)22;
Phase :
Three
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Operating Environment :
Indoor
Price :
US $1035 - 1860 / Piece
Voltage Regulation Method :
On-load tap changer, Off-load tap changer
Supply Ability :
800–1500 Piece /per month
Certification :
CE，VDE,SO 9001
Type :
Dry-type
MOQ :
1
Delivery Time :
30 days
Capacity Range :
50-5000KVA
Place of Origin :
china
Application :
Power Transformer
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Brand Name :
F.T
Frequency :
50 Hz, 60 Hz
Description

Three Phase Customizable 35KV Level Dry-type Distribution Transformer

Product Overview

The Three Phase Customizable 35KV Level Dry-type Distribution Transformer is an advanced epoxy resin cast dry-type power transformer engineered for medium-voltage distribution networks. Utilizing state-of-the-art vacuum casting technology with high-grade epoxy resin, this transformer delivers exceptional electrical performance, operational reliability, and environmental safety. The dry-type design eliminates the need for oil or other hazardous liquids, making it an environmentally friendly and fire-safe solution for modern power distribution systems.

Designed for three-phase, 50/60Hz power systems, this transformer is available in capacities ranging from 30 kVA up to 25,000 kVA, with primary voltages up to 35kV. It serves as an ideal solution for stepping down 35kV grid power to lower distribution voltages (0.4kV, 10kV, or custom voltages) for industrial, commercial, and infrastructure applications.

Whether you require standard configurations or fully customized solutions—including multi-tap designs, dual-voltage outputs, or multi-winding arrangements—our engineering team can tailor the transformer to meet your specific grid requirements and application needs.

Parameter Specification
Product Model SC(B)10 / SC(B)12 / SC(B)14 / SC(B)18 series
Voltage Class 35kV (38.5kV, 36.75kV optional)
Capacity Range 30 kVA – 25,000 kVA
Rated Frequency 50 Hz / 60 Hz
Number of Phases Three-phase
High Voltage 35 kV (38.5, 36.75 kV optional)
Low Voltage 0.4 kV, 10 kV, 0.69 kV, or custom
Connection Group Dyn11, Yyn0, Yd11
Short-circuit Impedance 6% – 10%
Insulation Class Class F (155°C) / Class H (180°C)
Insulation Level (35/0.4kV) LI170AC70 / AC5
Insulation Level (35/10kV) LI170AC70 / LI75AC35
Cooling Method AN (Air Natural) / AF (Air Forced)
Tap Range ±2×2.5% or ±5% (off-load); ±4×2.5% (on-load)
Partial Discharge ≤10 pC
Temperature Rise Limit 100K (Class F)

Application Fields

The Three Phase Customizable 35KV Level Dry-type Distribution Transformer is widely deployed across diverse industries and infrastructure projects where safety, reliability, and environmental compatibility are paramount.
