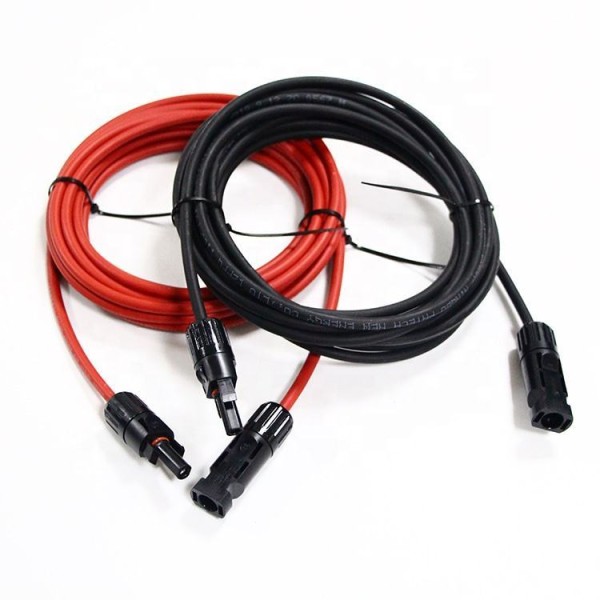

4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels
4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels
4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels
4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels
4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels
4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels
Specifications
Model Number :
solar cable
MOQ :
1000
Supply Ability :
800–1500 kilometers per month
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Application :
Solar Panel Connection / DC String
Place of Origin :
china
Price :
usd 0.35 ～ 0.65/ meter
Conductor Material :
Tinned Copper
Cross Section :
4 mm²
Delivery Time :
30 days
Brand Name :
F.T
Insulation Material :
XLPO
Certification :
TUV, CE, RoHS
Number of Cores :
1 Core
Jacket Color :
Black or Red
Halogen Free :
Yes
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
DC 1000V
Description

Product Description

This PV1-F 4mm² solar cable delivers a fixed connection between photovoltaic panels and combiner boxes, inverters, or DC distribution equipment. Rated at 1000V DC, it supports residential and commercial solar arrays. TUV certification guarantees compliance with EN 50618 standards.

The tinned copper conductor (Class 5 flexible) resists corrosion – a common failure point in outdoor DC circuits. Cross-linked polyethylene (XLPE) insulation provides low smoke, halogen-free performance during a fire. Temperature range: -40°C to +90°C. Peak resistance up to 120°C.

Key Features

4mm² cross section – supports up to 55A current capacity (depending on ambient temperature).

1000V DC rating – matches most string inverters and combiner boxes for ground-mount or rooftop arrays.

TUV EN50618 approved – each reel carries a traceable TUV mark.

UV resistant and waterproof – rated for direct burial and exposed outdoor runs (IP68).

Flexible – bending radius 5×OD, easy to route through conduits or cable trays.

Technical Specifications

Parameter Value
Conductor material Tinned copper (Class 5)
Conductor construction 56/0.30 mm
Insulation material XLPO (UV+Ozone resistant)
Sheath color Black / Red (double insulation)
Nominal cross section 4 mm²
Outer diameter 6.1 ±0.2 mm
Rated voltage AC 0.6/1 kV, DC 1.0/1.5 kV
Test voltage 6.5 kV (AC, 5 min)
Current carrying capacity 55 A (30°C ambient)
Temperature range -40°C to +90°C (fixed installation)

Certifications & Standards

  • TUV 2PfG 1169/08.2007 (PV1-F)

  • EN 50618:2014

  • IEC 62930 (optional)

  • RoHS, REACH compliant

Each drum includes a test report showing conductor resistance, insulation thickness, and voltage withstand test results.

Typical Applications

  • DC cables between solar modules (series/parallel connections)

  • String to inverter cabling

  • Off-grid battery charging circuits

  • Portable solar panel extension lines (with MC4 connectors)

Not intended for AC wiring inside buildings unless double insulation is not required locally.

4mm2 PV1-F Solar Cable 1000V DC TUV Photovoltaic Wire For Solar Panels

Packaging & Customization

  • Standard length: 100m, 200m, 500m per reel (wooden drum or plastic reel)

  • Cut lengths available: 1m, 5m, 10m, 20m with optional MC4 crimped ends

  • Custom printing on jacket: voltage, cert number, batch code (MOQ applies)

For bulk orders, sample reels can be shipped within 3 working days.
