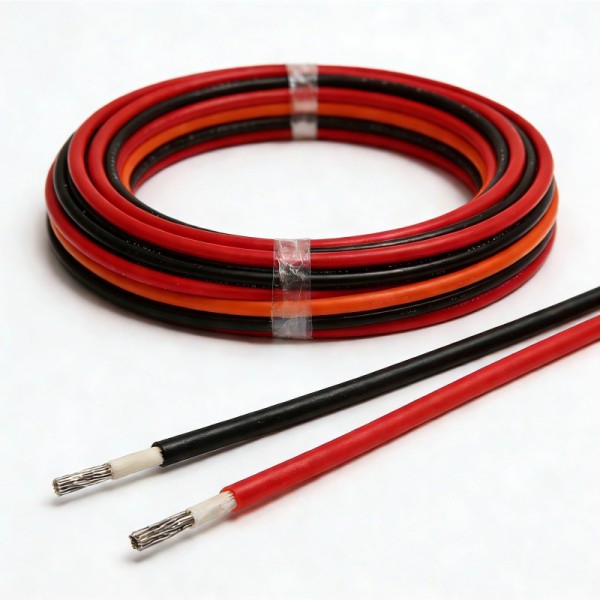

1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel
1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel
1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel
1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel
1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel
1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel
Specifications
Model Number :
H1z2z2-k /PV1-F
Rated Voltage :
1500v
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Rated Current :
55A
Specification :
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²
Price :
$0.5-1.5/m
Jacket :
PVC
Certification :
tuv
Size :
6mm, 4MM, 10MM, 2.5MM
MOQ :
1000
Delivery Time :
30 days
IP Level :
IP67/ IP68
Working Temperature :
- 45 °+120 °
Supply Ability :
800–1500 kilometers per month
Type :
low voltage
Sheath :
XLPO/XLPE
Brand Name :
F.T
Conductor Material :
Tin Plated Copper
Place of Origin :
Shaanxi, China
Application :
Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Model :
H1z2z2-k/ PV1-F
Description

H1Z2Z2-K Solar Battery Tinned Copper Cable 1x16mm2 Electric Wire For Solar Panel

H1Z2Z2-K / PV1-F / 62930 IEC131, providing multiple standard certifications, can be selected and produced according to different national requirements, and can be authorized TUV Certification.
Complies with the TUV MARK certificate issued by TUV Rheinland and the European standard (H1Z2Z2 - K) photovoltaic DC irradiated cable, used for interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installation inside and outside pipes or systems. with excellent acid and alkali resistance, damp and heat resistance, high and low temperature impact resistance, halogen-free, environmentally friendly, and long service life.

1x16mm2 H1Z2Z2-K Solar Battery Tinned Copper Cable Electric Wire For Solar Panel

Conductor Material: Five-level Flexible Tinned Oxygen-free CopperInsulation Material: Irradiated Cross-linked Low Smoke Halogen-free Polyolefin (XLPO/XLPE)
Sheath Material: Irradiated Cross-linked Low Smoke Halogen-freePolyolefin (XLPO/XLPE)

Model Standard Specification Core Rated Voltage
PV1-F TUV Rheinland Standard Photovoltaic Solar Cable 1.5-35mm² 1 Core AC: 600/1000V
DC: 900/1800V
H1Z2Z2-K European Standard Photovoltaic Cable 1.5-240mm² 1 Core AC: 1.0/1.0kV
DC: 1.5kV
62930 IEC 131 IEC Photovoltaic Cable Line 1500V 1.5-35mm² 1 Core 1500V/1500V
Wholesale Tuv halogen free leader XLPE Solar Cable Insulation PV1-F 1.5mm 2.5mm 4mm 6mm 16mm 25mm 35mm Solar Pv Cable 6mm2 10mm2
Used for the connection of solar photovoltaic systems, it can be applied in deserts with large temperature differences between day and night, coastal areas with salt spray and humidity, and plateau areas with strong radiation.

TÜV PV1-F Data Sheet

Standard: TÜV Rheinland 2PFG 1169 PV1-F 1×1.5mm² ~ 35mm²

Conductor Nominal Cross-section (mm²) Conductor Structure (n/mm) Conductor Stranding Outer Diameter (mm ±0.02) Insulation Thickness (mm) Sheath Thickness (mm) Finished Product Outer Diameter (mm ±0.3) Conductor Resistance (Ω/km) 60℃ Current-Carrying Capacity (A)
1.5 30/0.245 1.5 0.5 0.5 4.3 13.7 24
2.5 50/0.245 1.9 0.5 0.5 4.8 8.21 33
4 56/0.285 2.4 0.5 0.5 5.2 5.09 44
6 84/0.285 3.0 0.5 0.5 6.1 3.39 57
10 140/0.285 4.0 0.5 0.5 7.2 1.95 79
16 224/0.285 5.0 0.5 0.5 8.4 1.24 107
25 350/0.285 6.3 0.5 0.5 10.2 0.795 142
35 490/0.285 7.4 0.5 0.5 11.2 0.565 176
Wholesale H1Z2Z2-K solar cable Conventional sizes 1.5 ~ 35 mm², and the maximum size is 240 mm²
It is produced in accordance with the latest European standard EN 50618 and is uniformly named H1Z2Z2-K cable. It is the designated cable for photovoltaic power station systems, especially for installations where the voltage between the nominal direct current conductors on the direct current (DC) side and between the conductors and the ground does not exceed 1.5 kV and does not exceed 1800 V. The EN 50618 certification requires that photovoltaic cables use low-smoke zero-halogen and be flexible tinned copper conductors with single-core cross-linked insulation and sheathing.

Why choose F.T Cable?

Selected tinned copperconductorslinacat
High quality rawmaterialsLow resistanceGood electricalconductivity

Class A flame retardant
The temperature resistance is ashigh as 120 °C, and it will not beignited in case of fire, and it will beextinguished when it is out of fire

Low smoke safety
Only a small amount ofwhite smoke isproduced during thefire> transmittance of 60%

Durable
The service life canreach 25 years

Leading technology

The performanceof social products processed by irradiation crosslinkingprocess is morestable and better
