12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head
12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head
12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head
12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head
12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head
12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head
Specifications
Model Number :
PV1-F
Rated Voltage :
1500v
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Rated Current :
55A
Specification :
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²
Price :
$0.5-1.5/m
Jacket :
PVC
Certification :
tuv
Size :
6mm, 4MM, 10MM, 2.5MM
MOQ :
1000
Delivery Time :
30 days
IP Level :
IP67/ IP68
Working Temperature :
- 45 °+120 °
Supply Ability :
800–1500 kilometers per month
Type :
low voltage
Sheath :
XLPO/XLPE
Brand Name :
F.T
Conductor Material :
Tin Plated Copper
Place of Origin :
Shaanxi, China
Application :
Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Model :
PV1-F
Description

High-Performance 12AWG 4mm² Solar Connector Cable for Reliable PV Power Transmission

12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male/Female Head

Designed for modern photovoltaic systems, the 12AWG 4mm² Copper XLPO Insulated IP65 Waterproof Solar Connector Cable provides a dependable solution for connecting solar panels, inverters, combiner boxes, and energy storage equipment. Manufactured with stranded tinned copper conductors and premium XLPO insulation, this cable delivers excellent conductivity, superior weather resistance, and long-term durability in outdoor environments.

Each cable is factory-assembled with precision-engineered male and female solar connectors, allowing quick installation while reducing wiring time and ensuring a secure electrical connection. Suitable for residential, commercial, and industrial solar projects, it supports efficient DC power transmission under demanding environmental conditions.

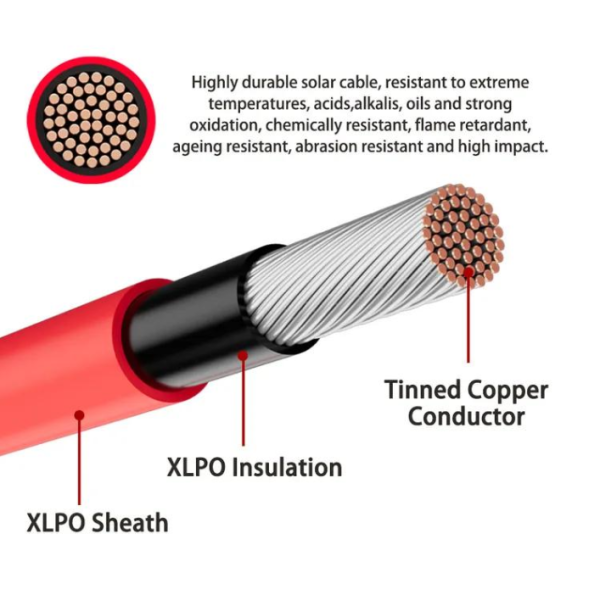

Product Structure

12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head

Cable Construction

  • Conductor: Stranded Tinned Copper
  • Insulation: XLPO Cross-linked Polyolefin
  • Outer Jacket: UV Resistant XLPO
  • Connector: Waterproof Male & Female Solar Connector
  • Locking Mechanism: Secure Snap Lock Design
  • Protection Level: IP65

Product Specifications

Parameter Specification
Product Name 12AWG 4mm² Solar Connector Cable
Cable Size 12AWG (4mm²)
Conductor Material Stranded Tinned Copper
Insulation Material XLPO
Jacket Material XLPO UV Resistant
Rated Voltage DC 1000V / DC 1500V
Rated Current Up to 30A
Waterproof Rating IP65
Connector Type Male & Female Solar Connector
Contact Material Copper with Tin Plating
Operating Temperature -40°C to +90°C
Maximum Conductor Temperature 120°C

Product Advantages

  • High electrical conductivity with low transmission loss
  • Excellent resistance to UV radiation and outdoor weather
  • Reliable waterproof protection for long-term outdoor use
  • Strong resistance to corrosion and oxidation
  • Flexible cable simplifies rooftop installation
  • Factory-assembled connectors improve installation efficiency
  • Suitable for residential and commercial photovoltaic systems
  • Multiple cable lengths and connector configurations available

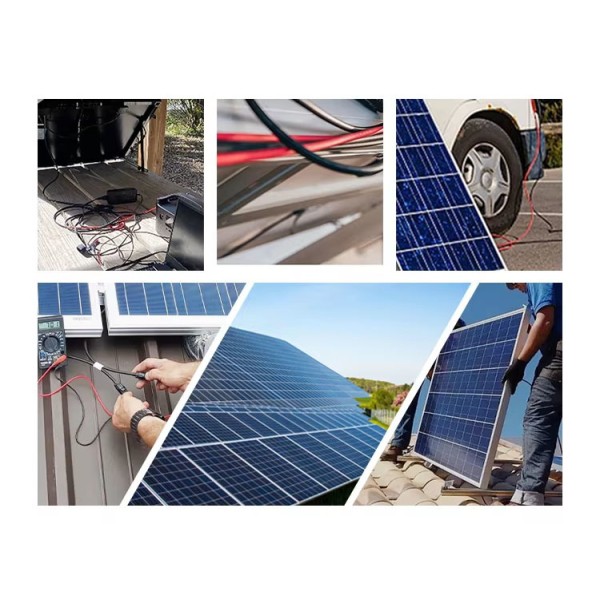

Application Fields

12AWG 4mm2 Copper XLPO Insulated IP65 Waterproof Solar Connector Cable Male Female Head

Residential Rooftop Solar Systems

Ideal for connecting rooftop photovoltaic panels to inverters and combiner boxes while ensuring stable DC power transmission.

Commercial Solar Power Projects

Widely used in distributed photovoltaic systems installed on commercial buildings, warehouses, factories, and office facilities.

Utility-Scale Solar Farms

Suitable for module interconnection and power transmission in large-scale ground-mounted solar power stations.

Off-Grid Solar Energy Systems

Provides reliable electrical connections for remote homes, cabins, telecommunications equipment, and agricultural power systems.

RV and Mobile Solar Systems

Perfect for recreational vehicles, camper vans, caravans, boats, and portable solar charging systems requiring flexible and waterproof wiring.

Energy Storage Systems

Used to connect photovoltaic modules with battery storage systems and DC charging equipment.

Contact us today for bulk pricing, custom lengths, and fast shipping.
