25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire
Specifications
Sheath :
XLPO/XLPE
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Model Number :
PV1-F
Conductor Material :
Tinned Copper
Price :
$0.65-0.7
Application :
Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/
Type :
Low Voltage, low voltage
Specification :
1.5mm²/ 2.5mm²/ 4mm²/ 6mm²/ 10mm²/16mm²/25mm²/35mm²
MOQ :
1000
Supply Ability :
800–1500 kilometers per month
Model :
PV1-F
Working Temperature :
- 45 °+120 °
Certification :
tuv
Jacket :
PVC
Place of Origin :
Shaanxi, China
Brand Name :
F.T
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Delivery Time :
30 days
Rated Current :
55A
Description

PV1-F Solar Cable 25mm² Solar Cable XLPE/XLPO Insulation Certified DC Photovoltaic Wire

Our PV1-F 25mm² solar cable is a high-performance DC transmission wire, specifically designed for medium to large-scale photovoltaic power generation systems. It adopts XLPE or XLPO insulation material—two of the most reliable insulation options for solar cables, chosen for their excellent anti-aging and weather-resistant properties. As a low-voltage DC cable (rated 1.5kV DC), it’s mainly used for DC-side wiring in solar projects, especially for long-distance transmission and high-current circuits, ensuring stable power delivery between solar panels, combiner boxes and inverters.
Unlike small-spec PV cables, the 25mm² cross-section is engineered for higher current carrying capacity, making it ideal for large ground-mount solar farms, industrial rooftop projects and high-power energy storage matching systems. Every cable is produced in strict accordance with international standards, undergoes rigorous quality testing, and comes with authoritative certifications to meet global project requirements.

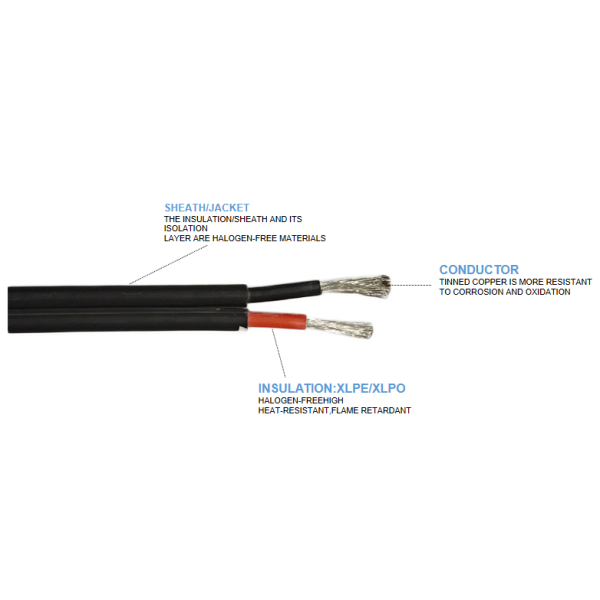

Key Specifications

Item
Detailed Parameters
Product Model
PV1-F
Conductor Cross-Section
25mm² (single-core; double-core customizable)
Rated Voltage
DC 1.5kV (standard for solar DC-side wiring)
Conductor Material
Tinned copper, flexible stranded (192/0.40mm structure)
Insulation Material
XLPE (electron-beam cross-linked) / XLPO (cross-linked polyolefin), optional
Operating Temperature Range
-40℃ ~ +120℃ (short-term overload up to 150℃)
Ampacity (60℃ Ambient)
176A (real test data, stable in high-current scenarios)
Conductor Resistance
0.78Ω/km (complies with TÜV EN 50618 standard)
Certifications
TÜV EN 50618, UL4703, IEC (support third-party inspection)
Outdoor Service Life
25 years (tested under outdoor harsh environment)
Flame Retardant
Low-smoke halogen-free, meets IEC 60332-1-2

25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire

Core Advantages


25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire

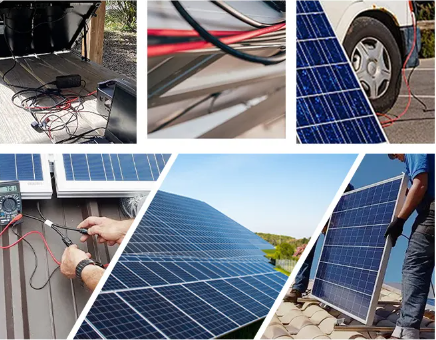

Application Fields (Real Scenarios, No Exaggeration)

  • Large-scale ground-mount solar farms (desert, mountain, fishery-PV, agriculture-PV complementary projects) – for DC-side main line wiring and high-current array connection.
  • Industrial and commercial rooftop solar power stations (large factories, warehouses, commercial plazas) – suitable for long-distance, high-power DC transmission between combiner boxes and inverters.
  • High-power solar energy storage systems – used to connect solar panel arrays and energy storage battery packs, supporting stable high-current transmission.
  • Special-environment large solar projects (coastal, alpine, high-temperature desert areas) – with strong anti-corrosion and anti-aging performance, adapting to harsh outdoor conditions.
  • Off-grid large-scale solar power systems (island power supply, remote area power stations) – reliable performance, suitable for long-term unattended operation.

25mm2 PV1-F Solar Cable XLPE XLPO Insulation Certified DC Photovoltaic Wire

FAQ

Q1: What is the difference between XLPE and XLPO insulation for 25mm² PV cables?

A: Both materials meet TÜV standards. XLPE features higher mechanical strength and heat resistance, ideal for high‑temperature desert solar farms. XLPO is more flexible and hydrolysis‑resistant, better for coastal high‑humidity projects. You can select based on your installation environment.

Q2: Why choose 25mm² instead of 16mm² for solar DC wiring?

A: 25mm² carries higher ampacity (176A) with lower resistance. It greatly cuts voltage drop for long‑distance DC transmission in large‑scale solar stations, reducing power loss and boosting overall generating efficiency.

Q3: Can this 25mm² PV cable withstand year‑round outdoor exposure?

A: Yes. Rated for ‑40℃ to 120℃ continuous operation, it resists UV rays, ozone, salt fog and hydrolysis. It is built for a 25‑year outdoor service life, proven for harsh global solar site conditions.

Q4: Do you provide certifications and test reports for bulk orders?

A: Definitely. Each batch comes with TÜV EN 50618, UL4703 and IEC certificates. Third‑party inspection reports are available upon request to satisfy project tender requirements.

Q5: What customization options do you offer for the 25mm² PV cable?

A: We customize insulation material (XLPE/XLPO), length, outer printing, packaging, and single/double‑core structure. Standard 25mm² stock supports quick bulk shipment for urgent solar projects.

Q6: Is the 25mm² PV1‑F cable high‑voltage or low‑voltage?

A: It is a low‑voltage DC cable (1.5kV DC), strictly for the DC side between solar panels, combiner boxes and inverters in photovoltaic systems.
