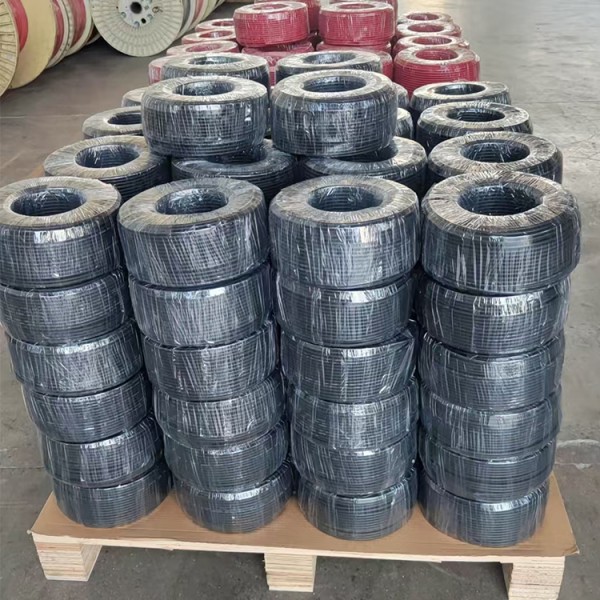

2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
Specifications
Brand Name :
F.T
Insulation Material :
XLPO
Model Number :
PV1-F
Rated Current :
55A
Specification :
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm² /25mm²/35mm ²
Price :
usd 0.45 ～ 1/ meter
Working Temperature :
- 45 °+120 °
MOQ :
1000
Type :
Low Voltage
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Model :
PV1-F
Conductor Material :
Tin Plated Copper
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Rated Voltage :
1.5kV DC
Certification :
tuv
Supply Ability :
800–1500 kilometers per month
Delivery Time :
30 days
Jacket :
PVC
Place of Origin :
Shaanxi, China
Description

PV1-F Solar Cable 2.5mm 4mm 6mm For Solar Panel Double Layer Insulated Photovoltaic Cable

Conductor Material
tin plated copper
Rated Voltage
1.5kV DC
Rated Current

55A
Model Number
PV1-F
Type
LOW VOLTAGE
Insulation material
Xlpo
Working temperature
- 40 ℃ - 120 ℃
Specification
6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²

Conductor cross‑section(mm²) Conductor structure(n/mm) Stranded outer diameter(mm) Insul. Thick.(mm) Conductor resistance(Ω/km) Ampacity 60℃(A)
2*1.2 30/0.25 0.7 5.00*10.30 13.7 30
2*2.5 49/0.25 0.7 5.20*10.80 8.21 41
2*4.0 56/0.285 0.7 5.50*11.20 5.09 55
2*6.0 84/0.285 0.7 6.20*12.60 3.39 70
2*10.0 84/0.40 0.7 7.5*15.20 1.95 98
2*16.0 128/0.40 0.7 9.60*19.70 1.24 132

Description:

(1) Long-term working temperature of cable conductor -40℃～125℃
(2) The maximum temperature of the cable conductor does not exceed 250℃ during short circuit (the longest duration does not exceed 5s)
(3) It has excellent heat resistance, cold resistance, oil resistance, ultraviolet resistance, ozone resistance, low smoke,
halogen-free, low toxicity and flame retardant.
(4) Thermal shrinkage ≤1%; 20000h thermal life test, elongation at break ≤50%.
(5) The bending radius of the cable should not be less than the following requirements: 4D when D＜8mm, 6D when D≥8mm (Note D is the outer diameter of the cable)
Application Scenarios
XLPO insulated sheathed photovoltaic solar cable ,Usually used for solar panel end DC output or extended connection with solarpanel end output Large photovoltaic power generation Rural building photovoltaic power generation ,City street light photovoltaic power generation.
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable

2.5mm 4mm 6mm PV1-F Solar Cable For Solar Panel Double Layer Insulated Photovoltaic Cable
Product Advantages
  • Authoritative CertificationsPass TÜV, UL and IEC tests. Tinned copper conductor reduces resistance and power loss for steady power transmission.
  • Wide Temperature AdaptabilityWorks reliably from ‑40℃ to 120℃, anti‑UV, anti‑ozone and anti‑salt fog, with 25‑year outdoor service life.
  • Safe & Eco‑friendlyHalogen‑free, low‑smoke and flame‑retardant, suitable for residential, commercial and utility‑scale solar projects.
  • Flexible & Easy to InstallFine‑stranded structure offers great bendability for rooftop and narrow‑space wiring.
  • Customizable & Fast DeliverySupport size, printing and packaging customization. Mainstream sizes 4/6/10mm² are in stock for bulk orders.
